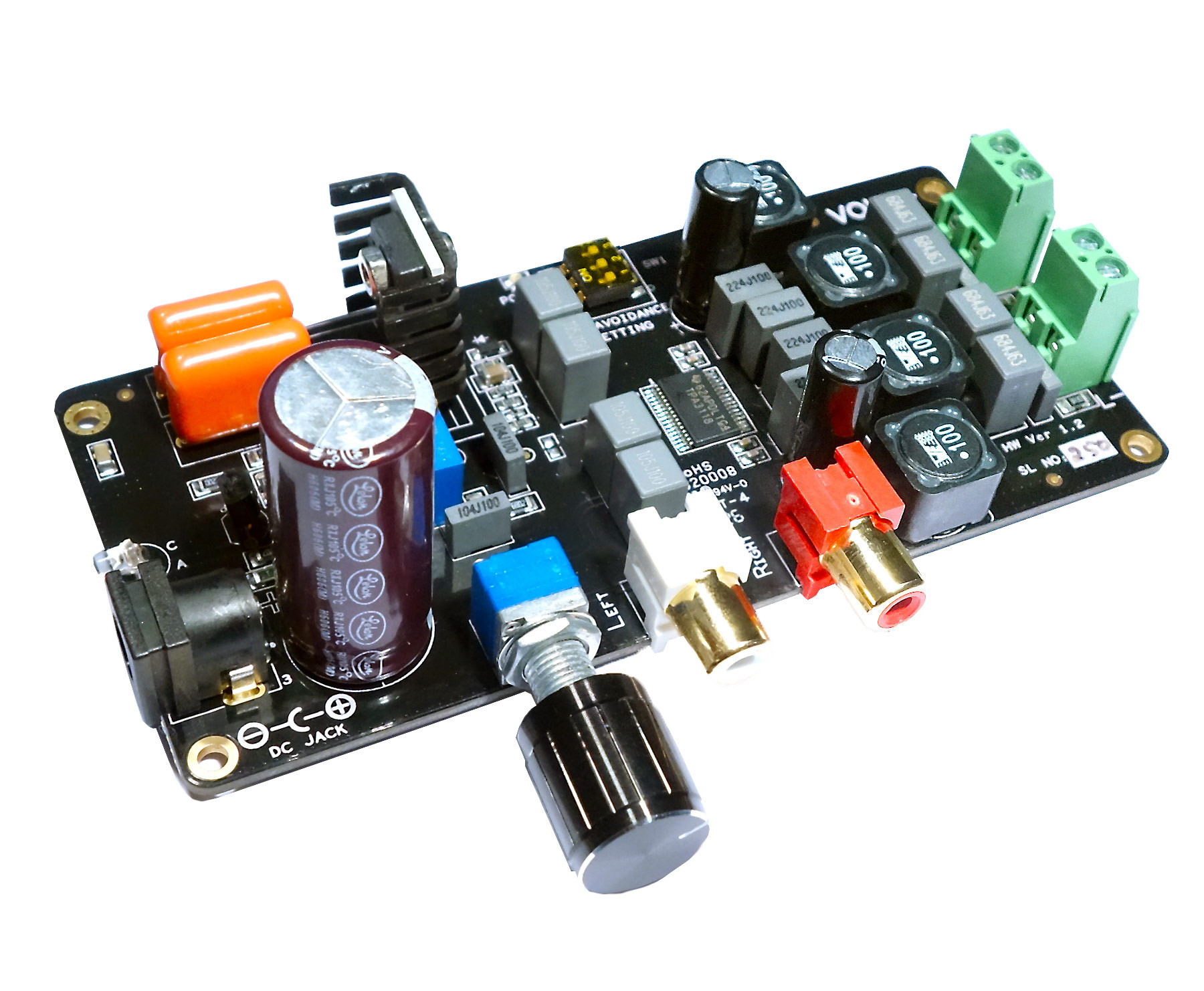

Volt+ Class D Amplifier


$39.00

Warranty
1 Year

IN EUROPE? CLICK HERE

Purchase a Standoff Set

Discounted Pricing
2-4 Units: $36.50/unit
5 Units: $35.00/unit

Make 15%-20% Selling This Product



Top Reviews

DIYAudio.com
"This is the cleanest board I've seen, with no leaning caps, solder smudges or cockeyed volume control..."

DIYAudio.com
"We listened to the new Leonard Cohen single Want it darker... We never heard it more beautiful!"

TheArtofSound.net
"ALLO have really gone to town on this design as a system in it's entirety..."

Rataks.com
"ALLO has done a very good job with its devices. The build quality seems very good."




The TPA3118 class D amplifier IC is a leap in terms of audio quality.

Our board is a high quality implementation of the stock design.

- Using TPA3118 (better grounding of main IC)
- Anti-Pop circuit
- Bootstrap snubber mod
- Brand name components as per picture
- Radio avoidance switch (to reduce interference)

Note that PCB comes in 2 flavors:

1. Volt is a shield and beneath it has connector that will plug into our DACs (Piano 1.1 and Piano 2.1). It has no RCA inputs. (Capacitance Multiplier can be added as a standalone board).

2. Volt+ is a standalone amplifier with RCA IN (stereo). In addition to everything that the Volt has, we have added a circuit in the power supply that will reject spikes and noise to about 60db. The name of the circuit is "Capacitance Multiplier". Please note that Class D amplifier needs a quiet PSU.

Volt+ can be used with our DACs through the RCA input, as a standalone board.

Unlike our competitors that blindly copy the THD+N and SNR from datasheet, the files here show the real and tested characteristics of our Volt+ at different W of output power.

Note that in most cases we beat the THD+N and SNR from TI designed, evaluation board.

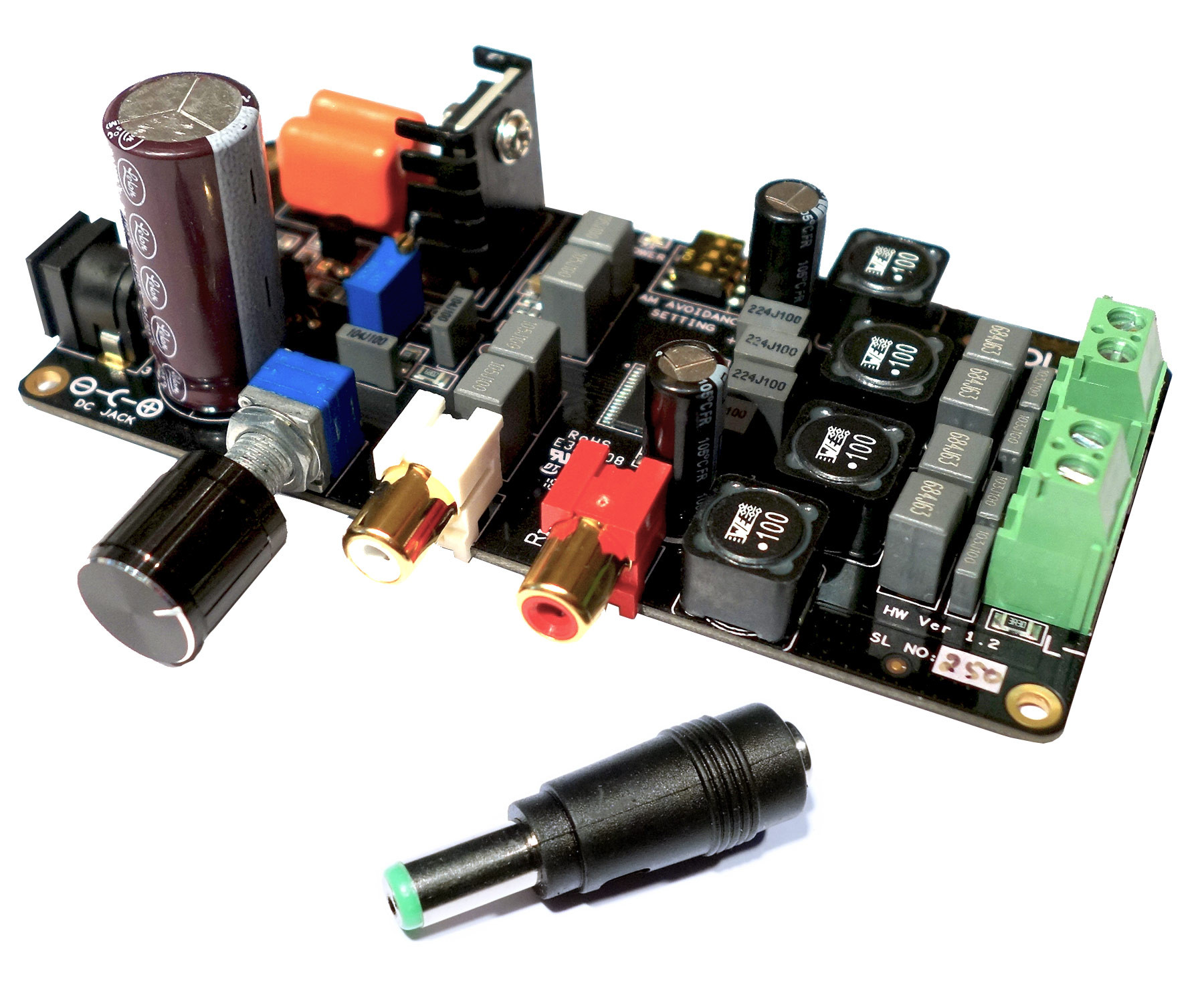

DC Connector Details

Features

  • This class D amplifier goes up to 2 x 50W Max
  • The components used are specifically designed for high end audio devices (Würth Inductor, TI chipset, film capacitors and ± 1% thin film resistors)
  • VOLT AMP boasts 4 output filters, 4 EMI Snubbers, 4 bootstrap capacitors and gain setting components
  • We are using CM filter circuits in power section to reduce maximum ripples in power
  • We are using 10K logarithmic Potentiometer for Volume control. Available with different Input connectors: 2 x RCA
  • Comes in two flavors (Volt and Volt+)
  • Power Supply Required: 16-24V (we recommend 19V), 60-90W
  • Power Connector Jack Barrel size: 3.00mm ID (0.118"), 6.50mm OD (0.256")

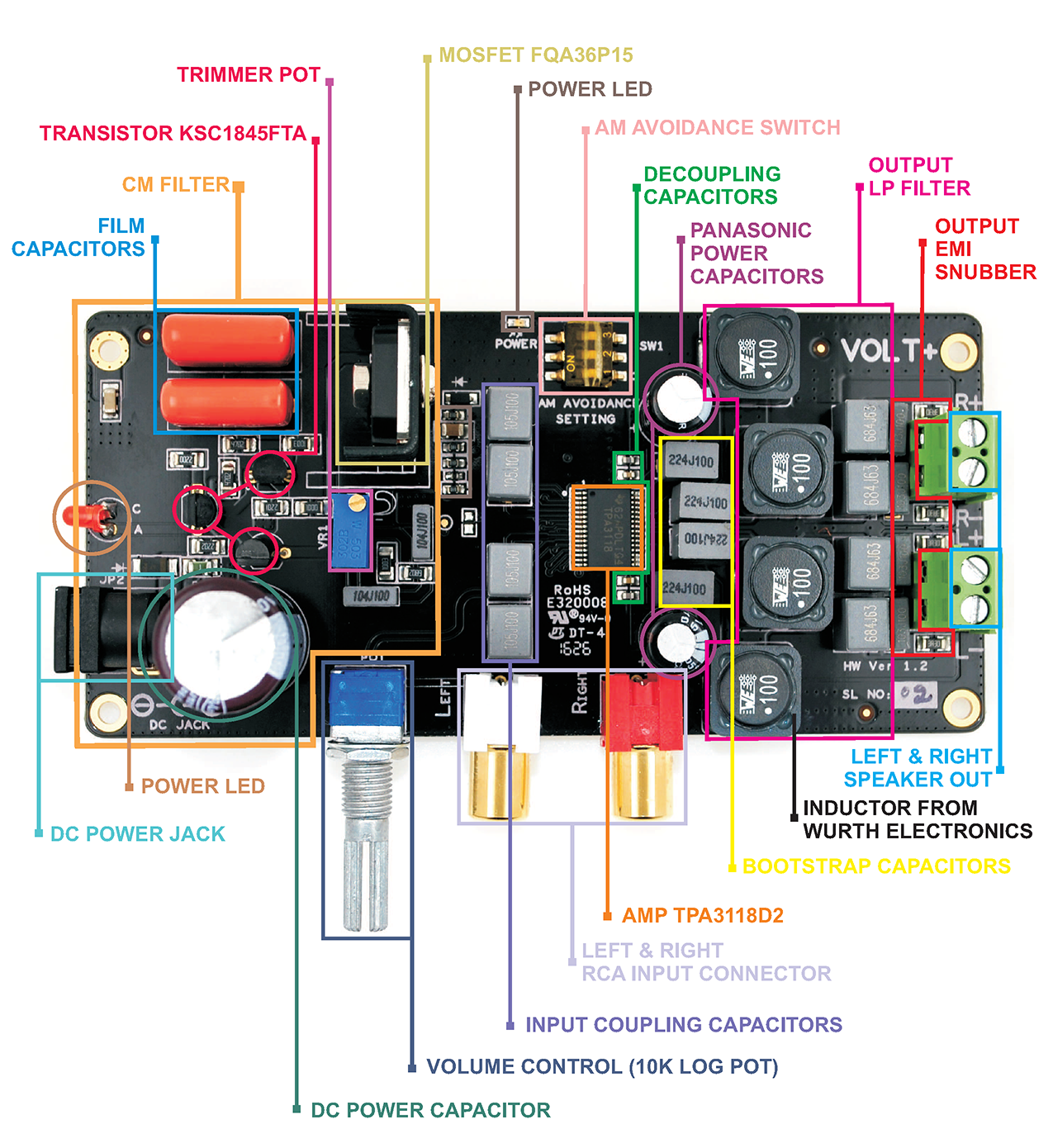

Volt+ AMP Components

(click to enlarge)

Components

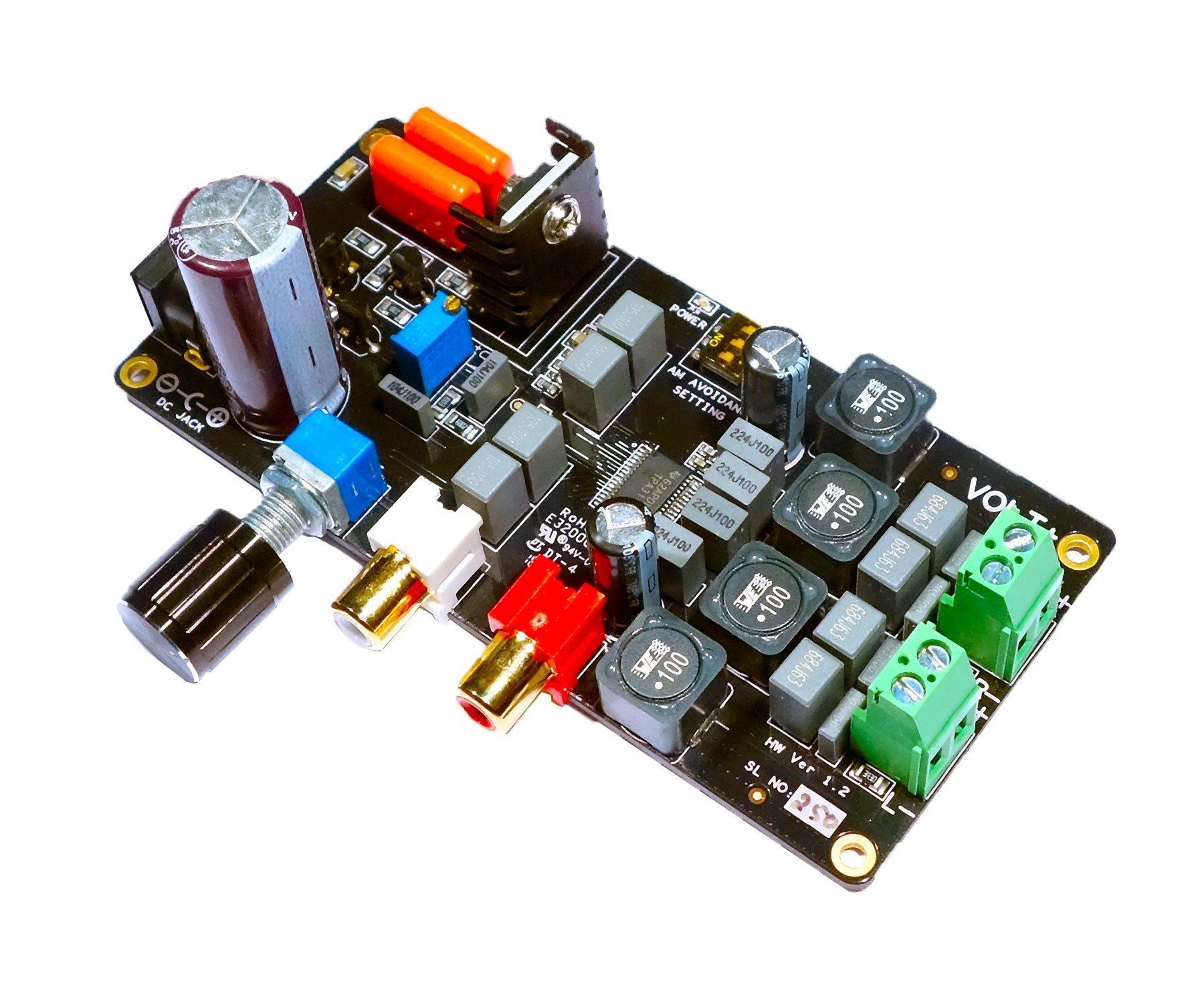

Top View



Top View

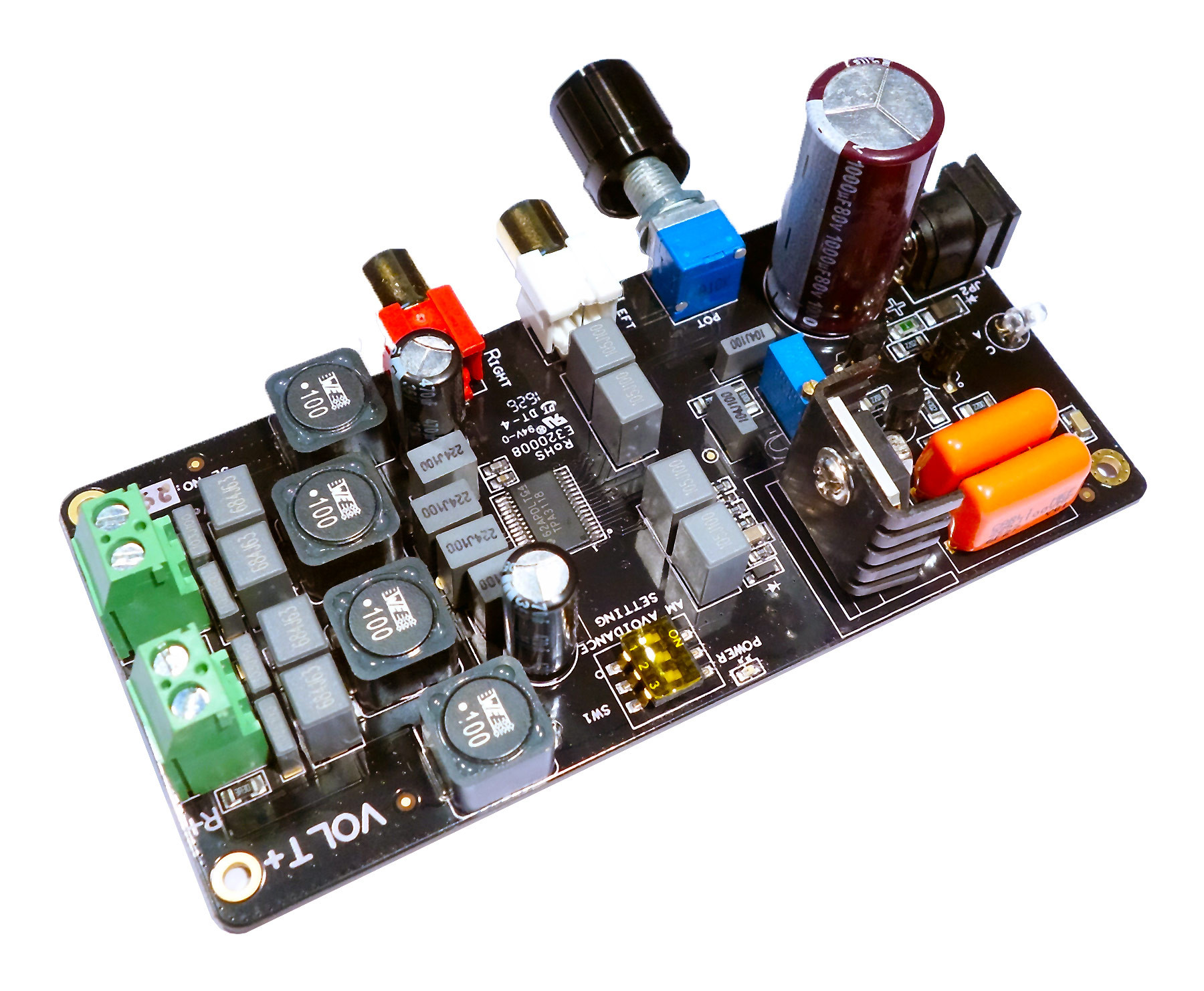

Bottom View



Bottom View

Technical Specifications
Chipset TPA3118D2
Output 2 x 50W (Max) into a 4 to 8-Ω BTL Load
Class D Operation 90% POWER EFFICIENCY
SNR 102dB
Supply Voltage UP TO 24V DC
Operating Temperature -40°C to 85°C Ambient
Board Size LWH = 82.83mm * 125.5mm * 40.2mm
DC Connector Size 3mm x 7.3mm
Mating Plug Size 3mm x 6.5mm
Board Weight 230g
