Capacitance Multiplier (Stand Alone)


$15.00

Warranty
1 Year

IN EUROPE? CLICK HERE

Purchase an Acrylic Case

Discounted Pricing
2-4 Units: $14.00/unit
5 Units: $13.00/unit



Top Customer Reviews

Roonlabs.com
"Set-up of the system was fast and easy – 10 minutes and I got stylish open-work design on my home-office table..."




A Capacitance Multiplier is designed to make a small capacitor function like a capacitor that is much, much larger. This design reduces the output ripple/noise of any PSU to almost negligible levels (less than 5mV up to 1Mhz).

Note this is not a voltage regulator. The output voltage will track the input voltage (- dropout voltage).

This circuit is very suitable for class A and class D amplifiers or even to feed clean power to your SBCs.
Our CM board supports from 10V to 32V input @ 5 Amps.


Features

  • Supports from 10V to 32V input @ 5 Amps
  • Designed to make a small capacitor function like a capacitor that is much, much larger
  • Reduces the output ripple/noise of any PSU to almost negligible levels (less than 5mV up to 1Mhz)
  • The output voltage will track the input voltage (- dropout voltage)
  • Suitable for class A and class D amplifiers
  • Suitable to feed clean power to your SBCs
  • Dropout voltage is trim pot selectable

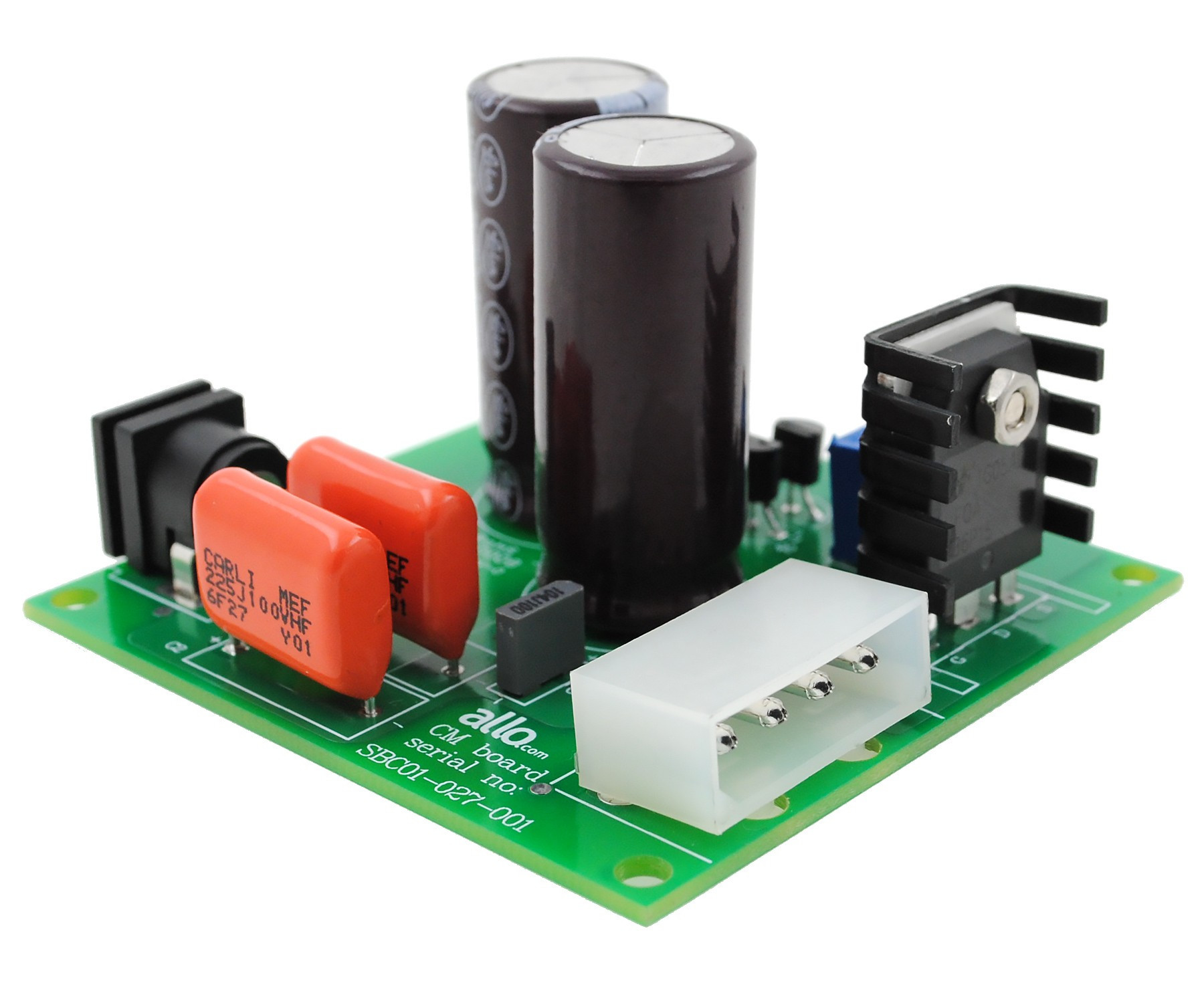

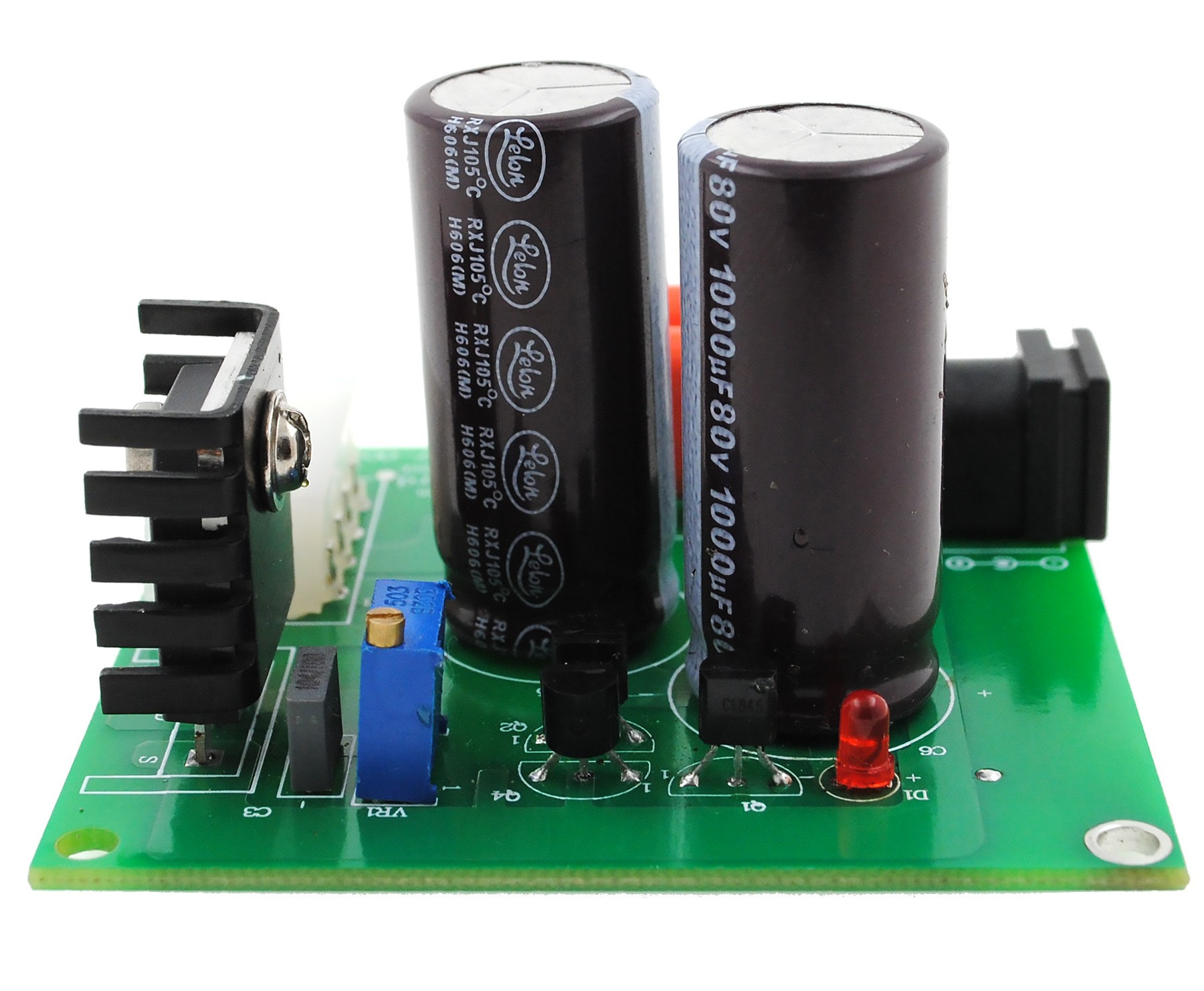

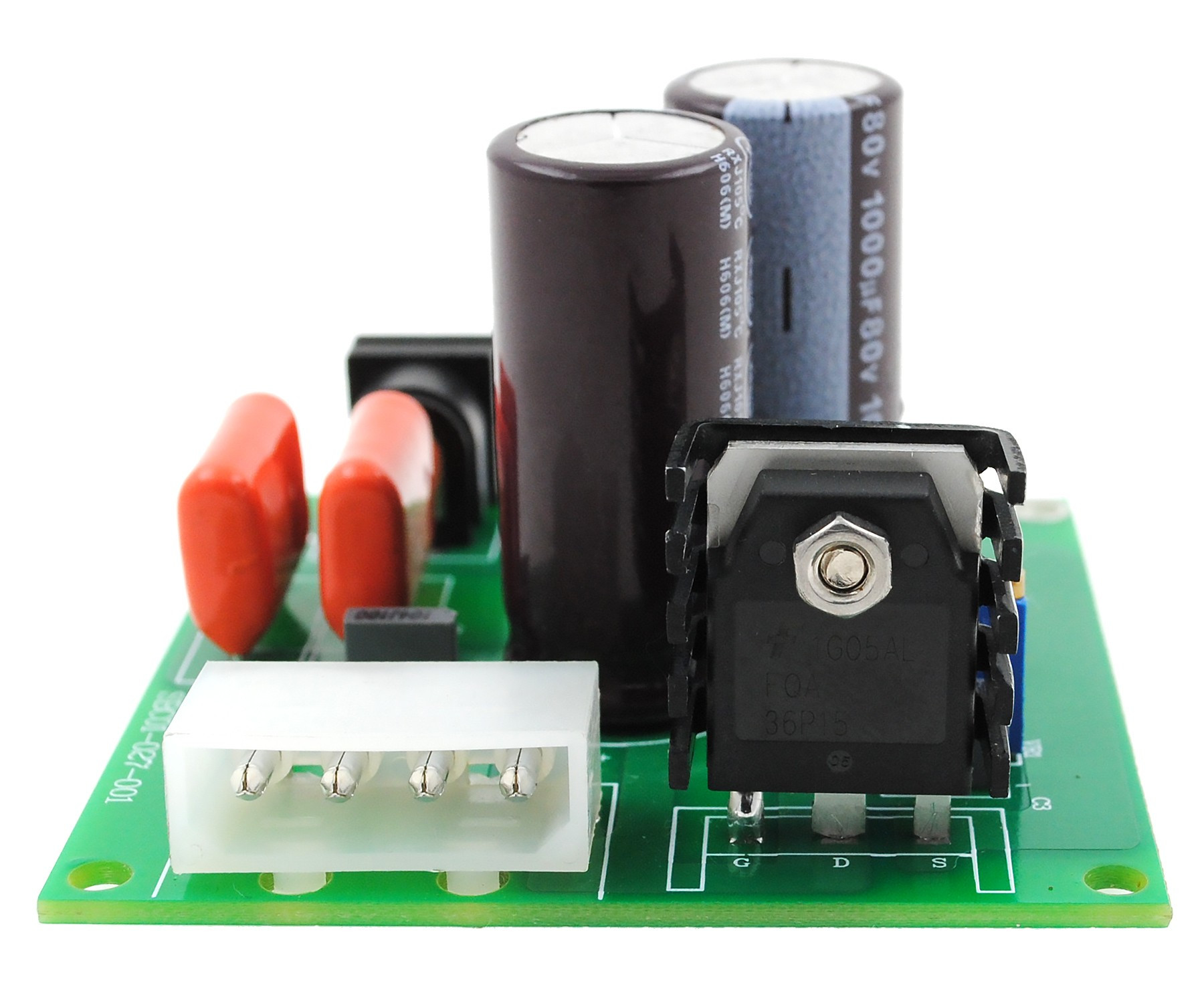

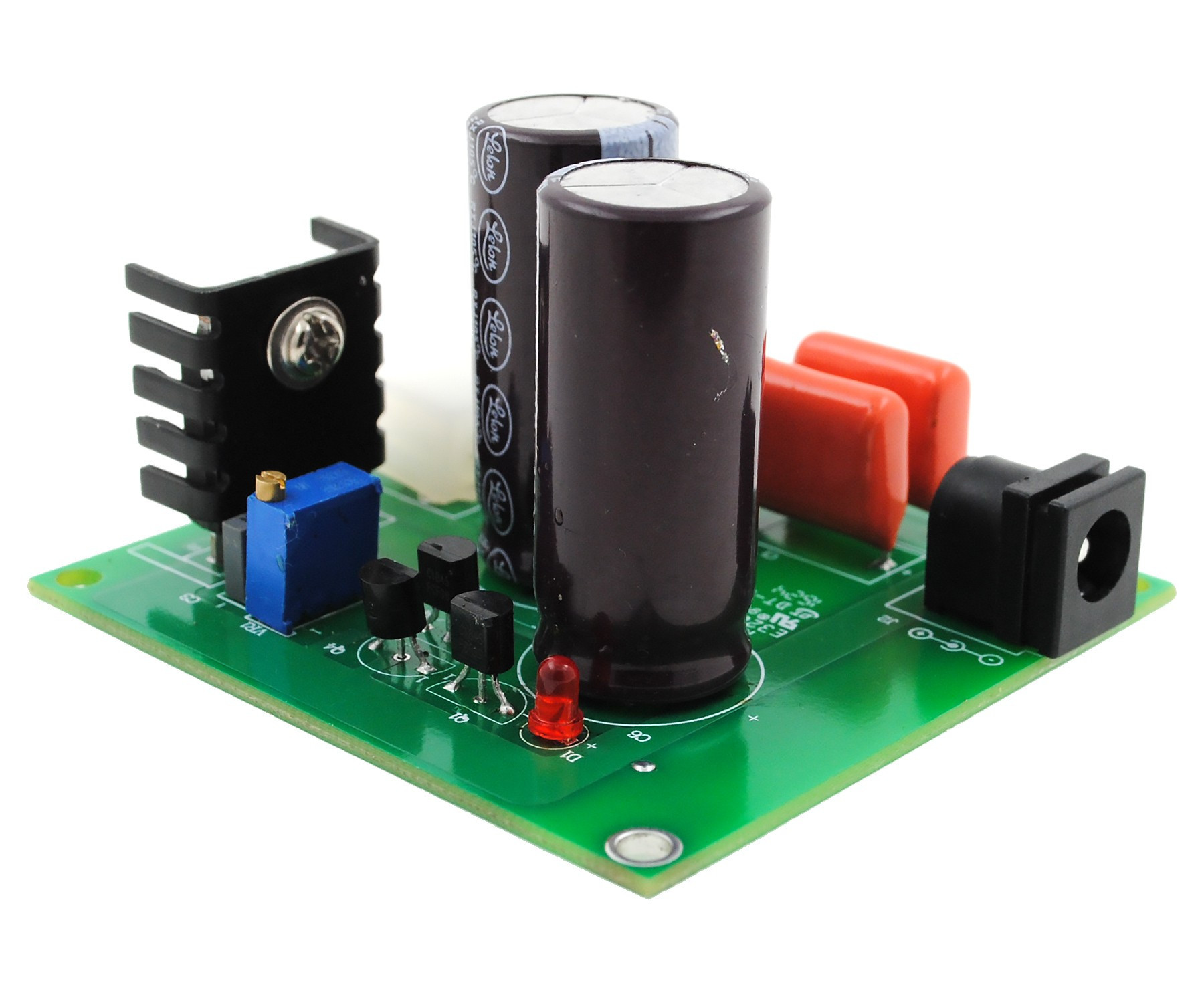

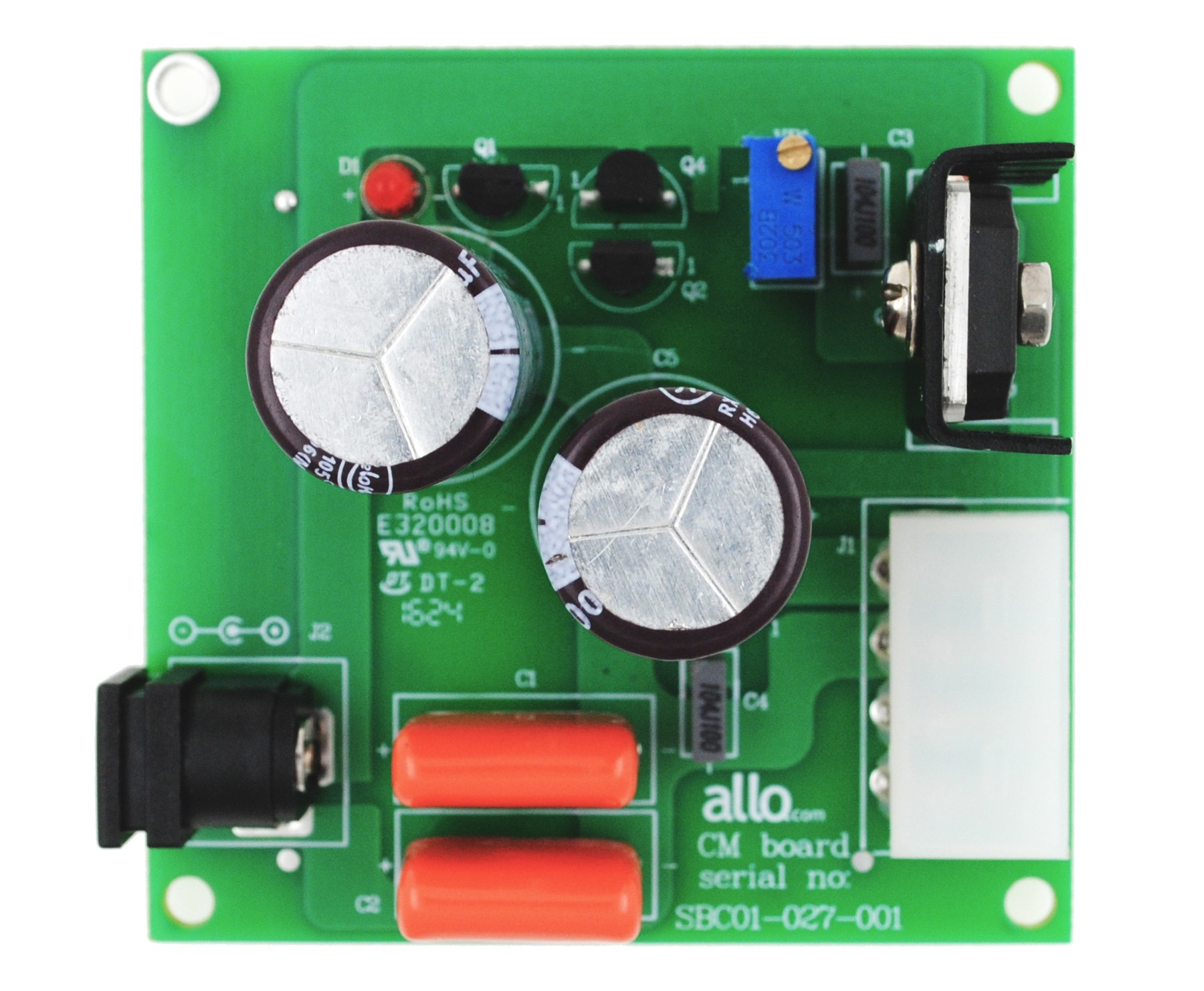

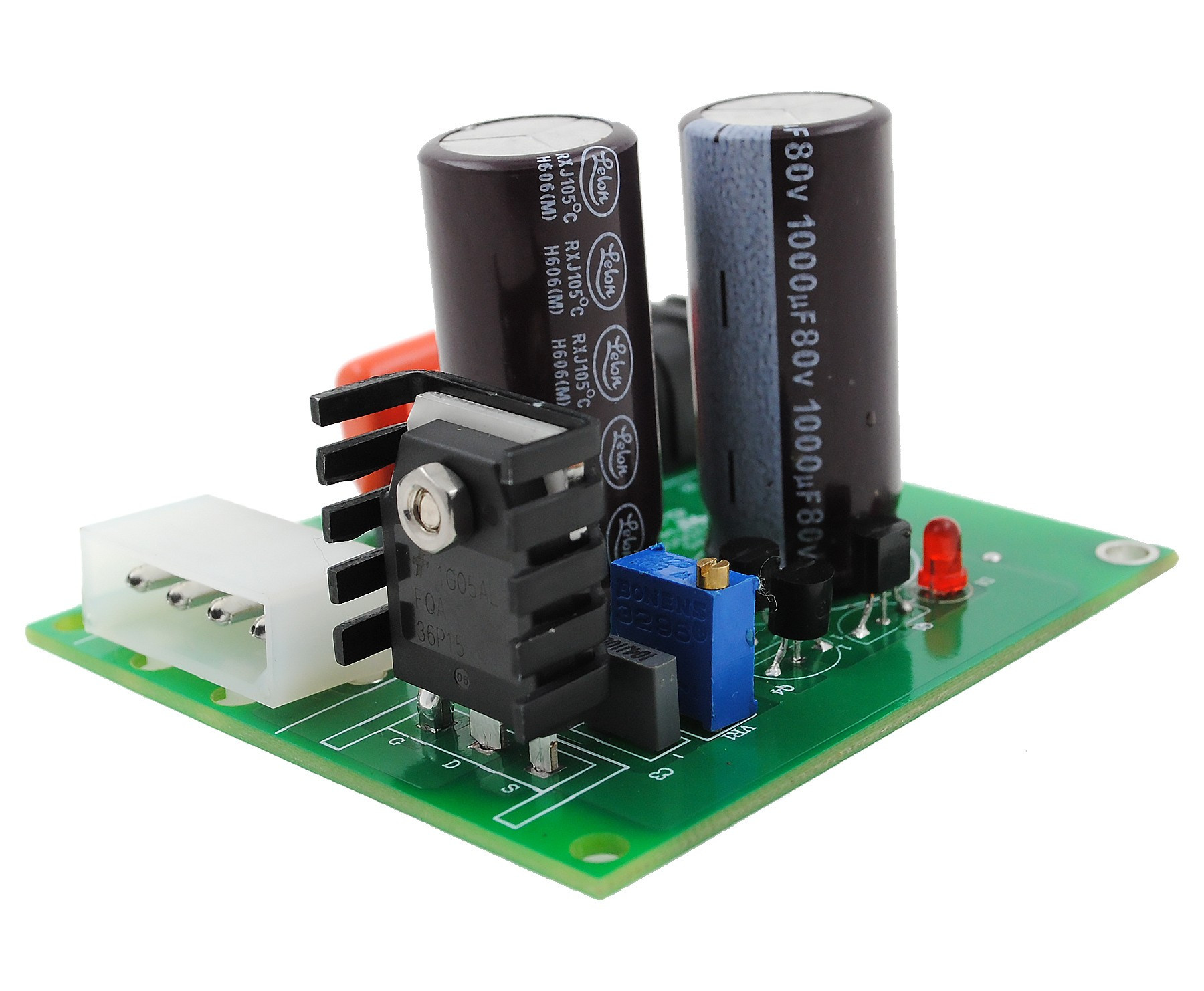

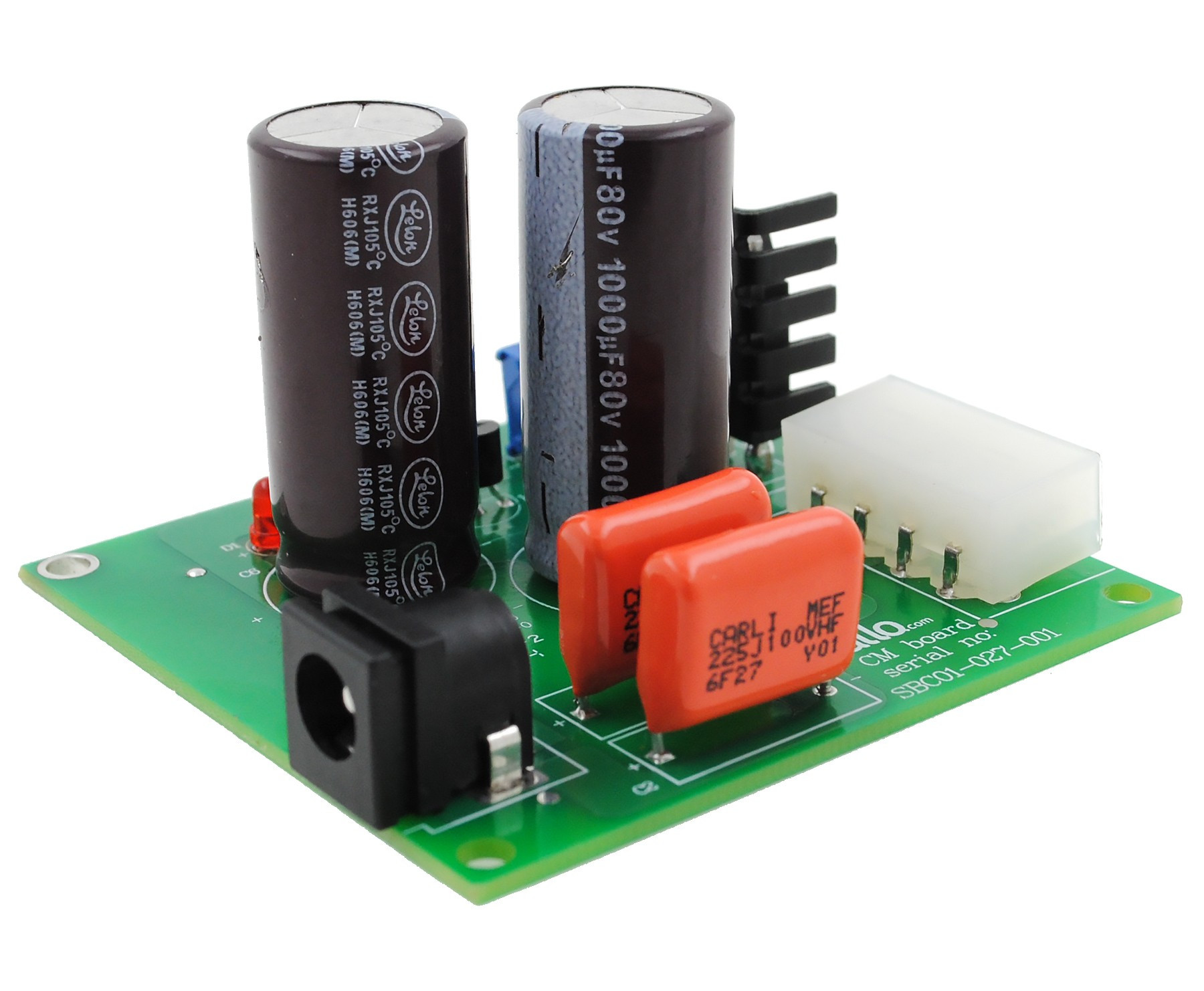

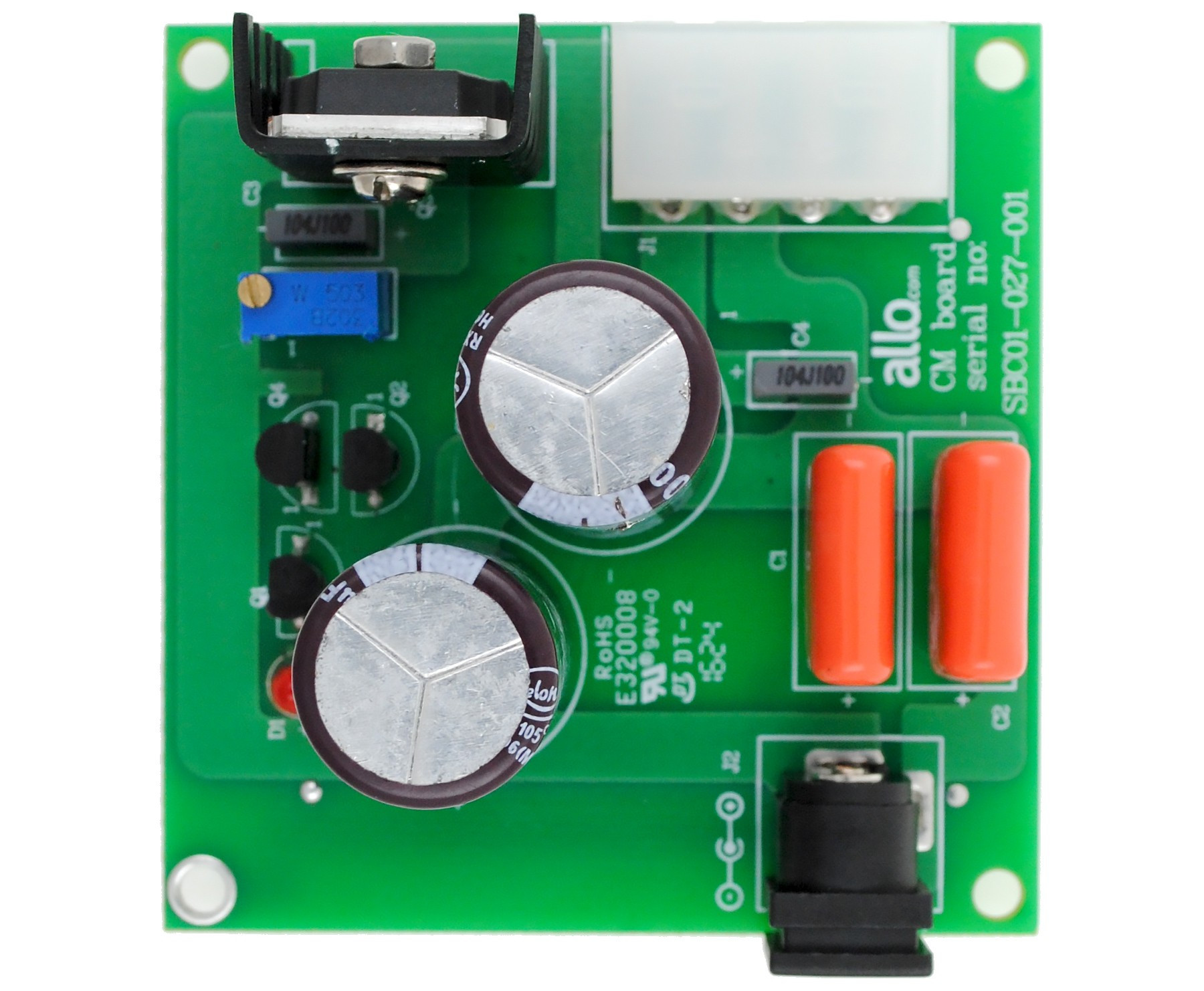

Top View



Top View

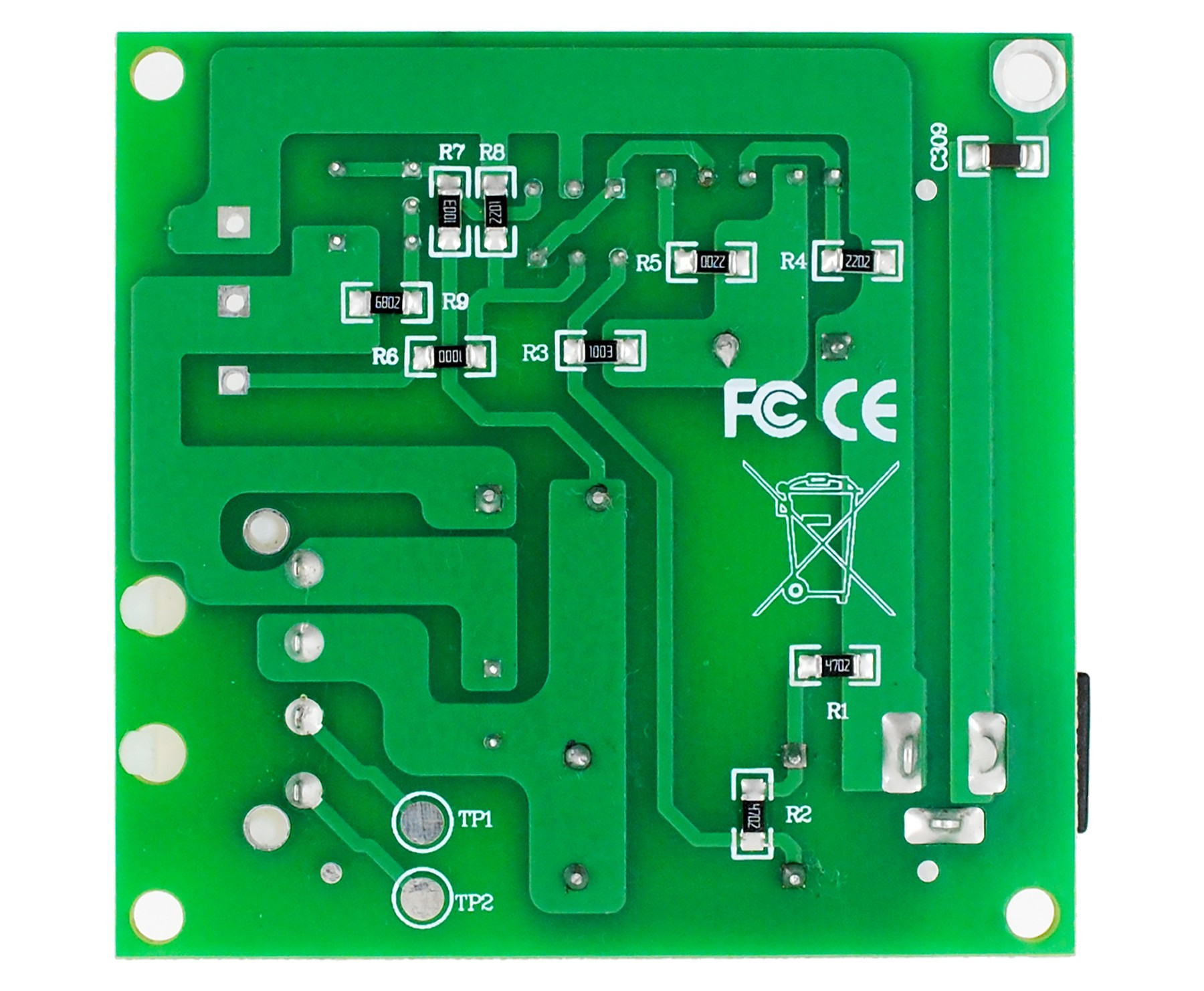

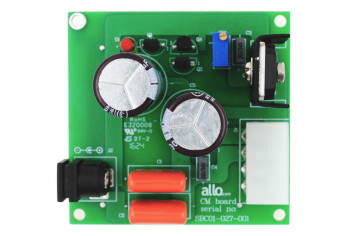

Bottom View



Bottom View

Technical Specifications
Min / Max 10V IN / 32V IN
Dropout Voltage Trim pot selectable from 0-3V (dropout voltage should always be higher than ripple / noise of PSU)
Factory Default 0.5V
Power Dissipation Dropout Voltage x A used = W of heat
PSRR 70db
Suitability This circuit is very suitable for class A and class D amplifiers or even to feed clean power to your SBCs
DC Connector Size 3mm x 7.3mm
Mating Plug Size 3mm x 6.5mm
Board Weight 120g
