4 models are available, all supporting up to 200 extensions and 50 simultaneous calls, 30 people conference room with full features (invite, schedule, email, kick, mute...). FXS ports for FAX machines only.


System Capacity

  • Up to 200 IP extensions registration
  • Up to 10 SIP trunk registrations
  • Up to 50 simultaneous calls
  • 8 GB SD card for music, voicemail storage

Auto-Attendant Features

  • Configurable IVR
  • Queue creation
  • Music on hold
  • Scheduling for IVR with RTC (Real Time Clock) supporting date/time

Advanced Features

  • Conference rooms (Maximum 30 participants)
  • Fax and voicemail to E-mail
  • DID routing
  • Radius & FTP server integration for CDR exports
  • Quick configuration tool for easier configuration
  • User friendly system status dash board


  • Up to 100 hours
  • Each extension has access to voice mail
  • Remote voice mail access

Call Features

  • Call transfer, call hold call divert, call forwarding DND, call park & pickup and much more
Technical Specifications
Supported Codec G729AB-G711-G722, A-law, U-law, Wide band support, T.38 Fax
DTMF In-band, RFC 2833, SIP info
Voice Quality Protection Echo cancellation: G.168, VAD with silence suppression, CNG, packet loss concealment, adaptive jitter buffer, polarity control, signal discriminator, attenuation/gain adjustment
System HTML browser, telnet, online upgrades, configuration back-up & restore, NAT, NTP, pre-set progress tones for multiple regions, personal call handling rules
Hardware Reset button, one secure digital (SD) slot
System Indicators Power status, ethernet status

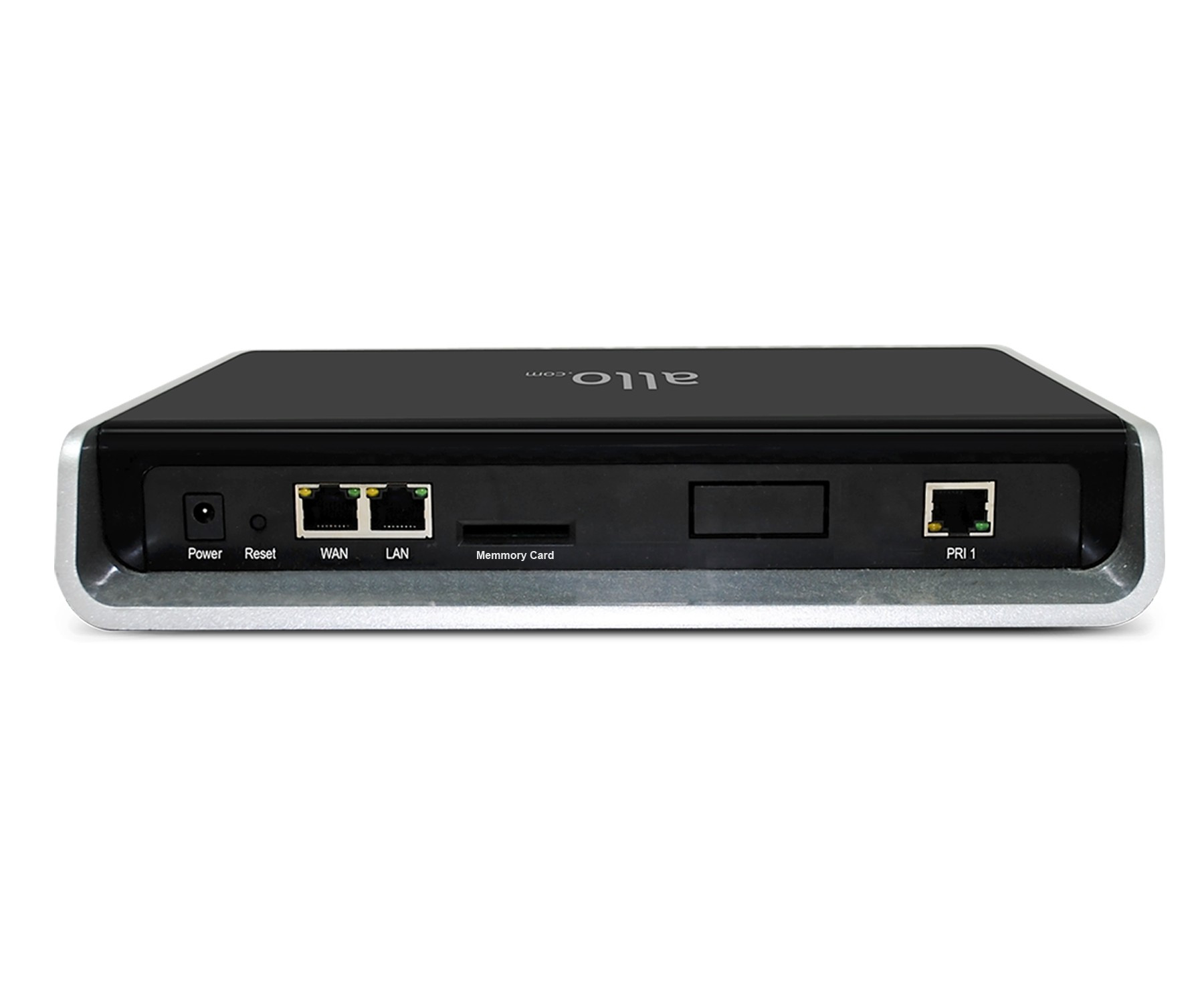

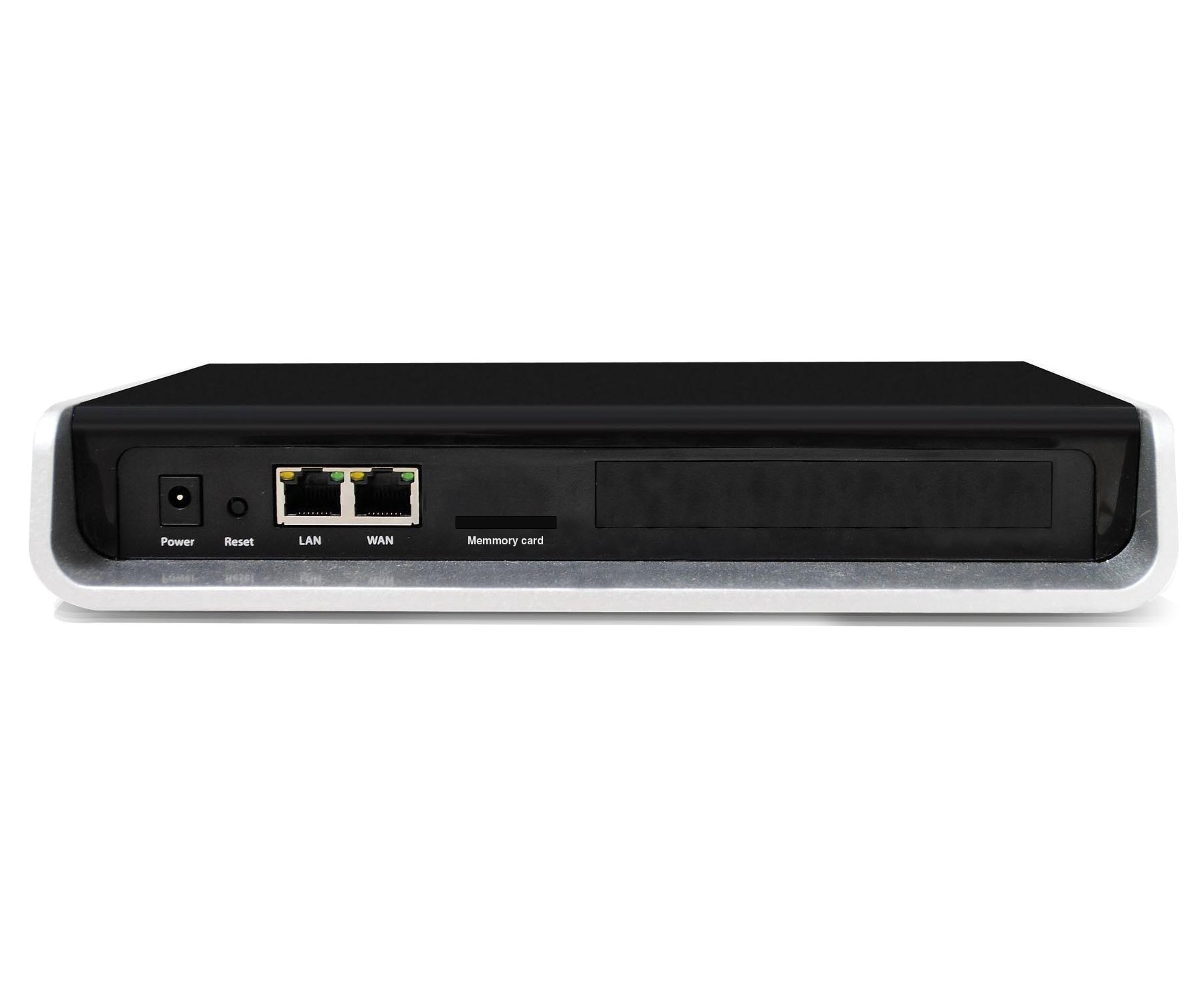

Network Interfaces one 10/100Mbps WAN port, one 10/100Mbps LAN port
Power Supply 100V – 250V AC / 47 Hz – 63 Hz Input

Physical & Environmental
Operation Temperature 10°C to 40°C (50 F to 104 F)
Storage Temperature 0°C to 50°C (32°F to 122°F)
Operating Humidity 10% to 90%, Non-condensing
Storage Humidity 5% to 95%, Non-condensing
Dimensions 17.5cm x 25.3cm x 3.4cm
Weight 1.6 kg
Power Input 12V DC / 3.5 A
Other Models

Add any of these to your MegaPBX Line


1 PRI Port

  • 30 Simultaneous calls
  • 128ms hardware based line echo cancellation
  • Transcoding
    (Voice coding G.711 A-law/u-law, G.722 G.729AB)

------- OR -------

1 PRI + 2 FXS

  • Add a Fax line to your MegaPBX line
  • T.38 Fax relay

------- OR -------

4 BRI Ports (coming soon)

  • Up to 8 simultaneous voice calls over 4 ISDN BRI lines
  • Hardware based line echo cancellation
User Interface

Access to GUI Demo (PBX + BRI) - Click Here

Username: admin
Password: admin


Access to GUI Demo (PBX + PRI/FXS) - Click Here

Username: admin
Password: admin
