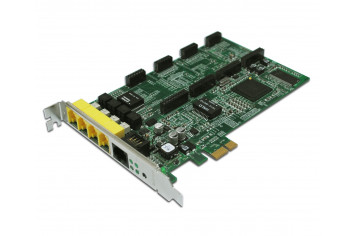

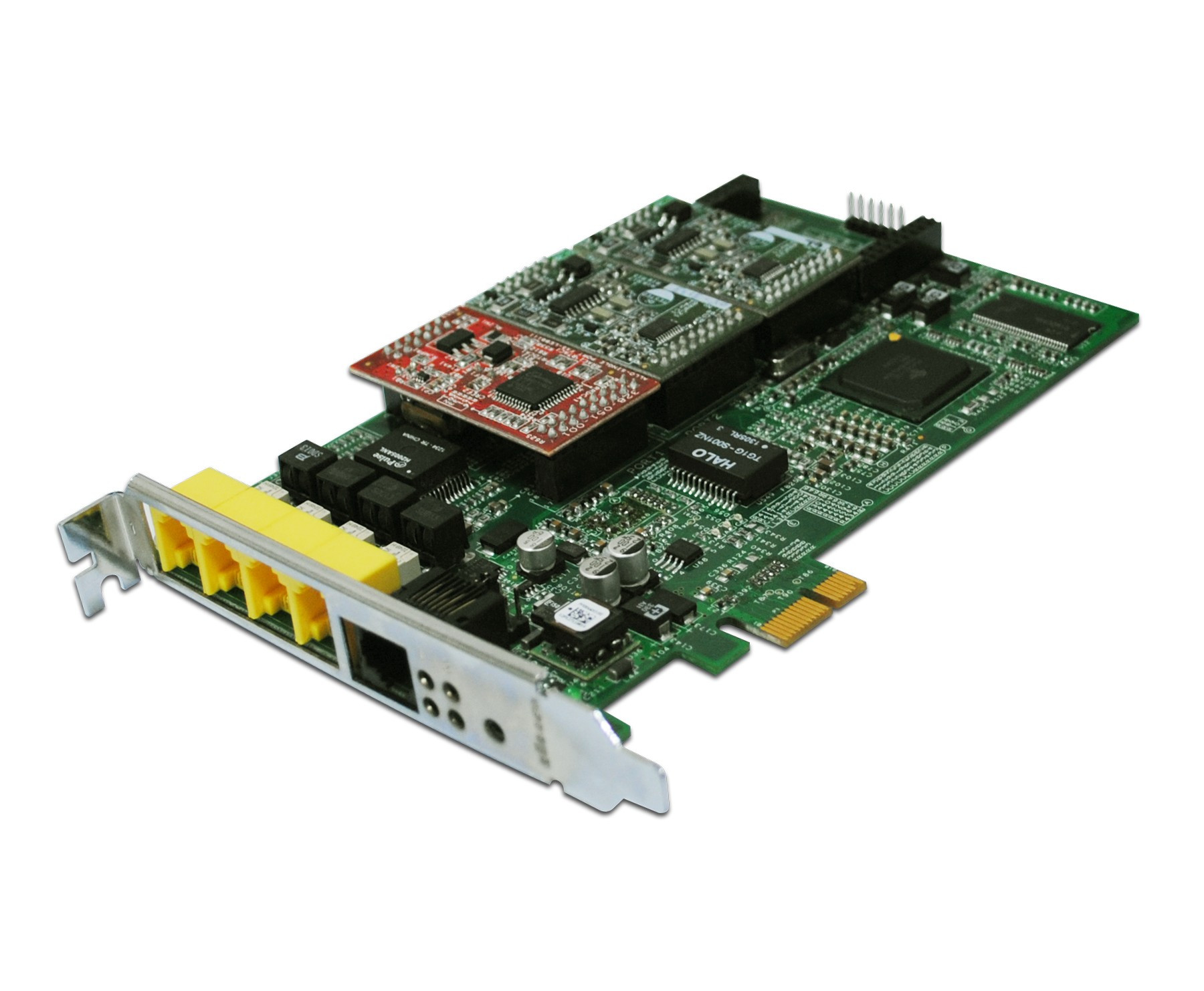

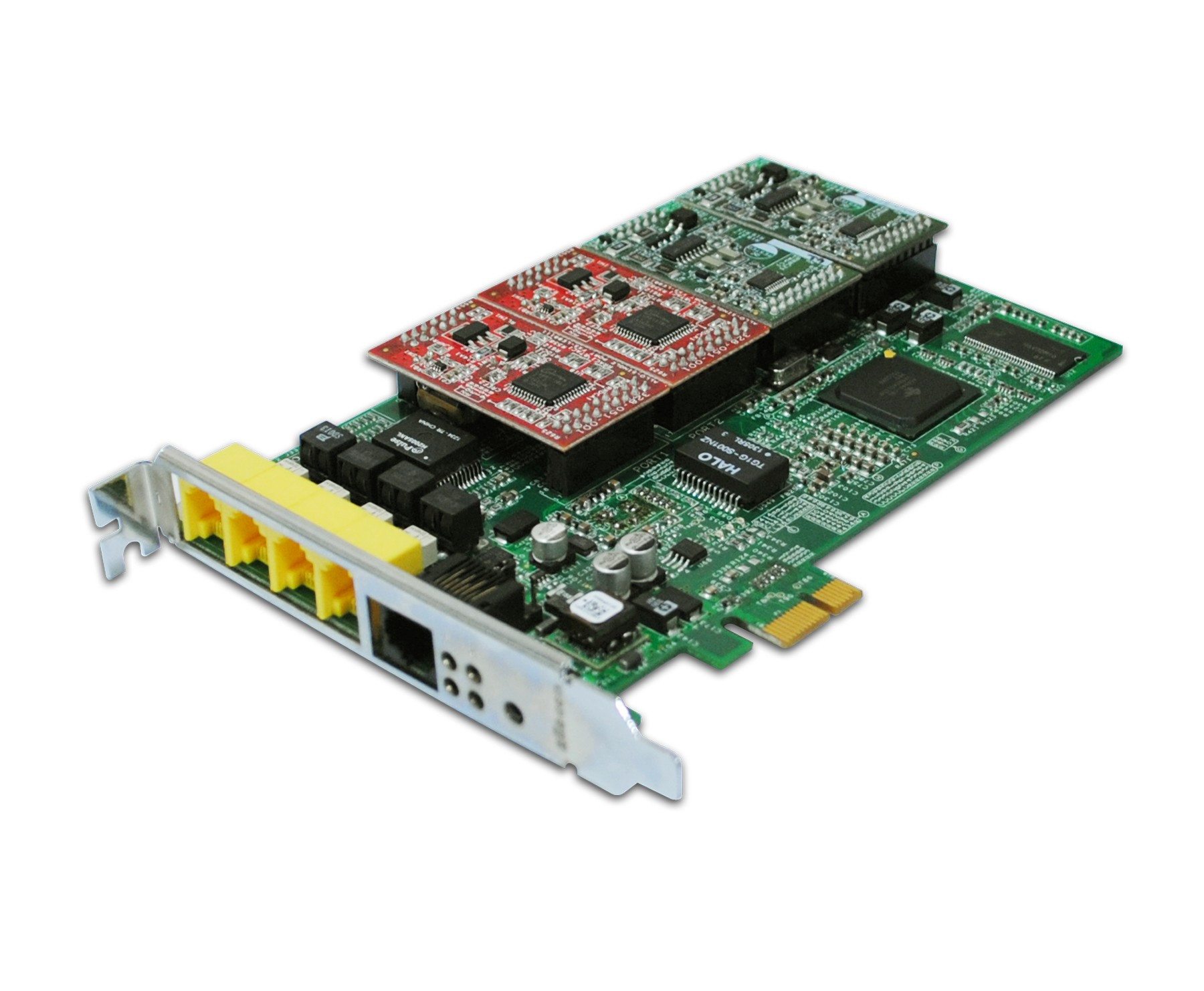

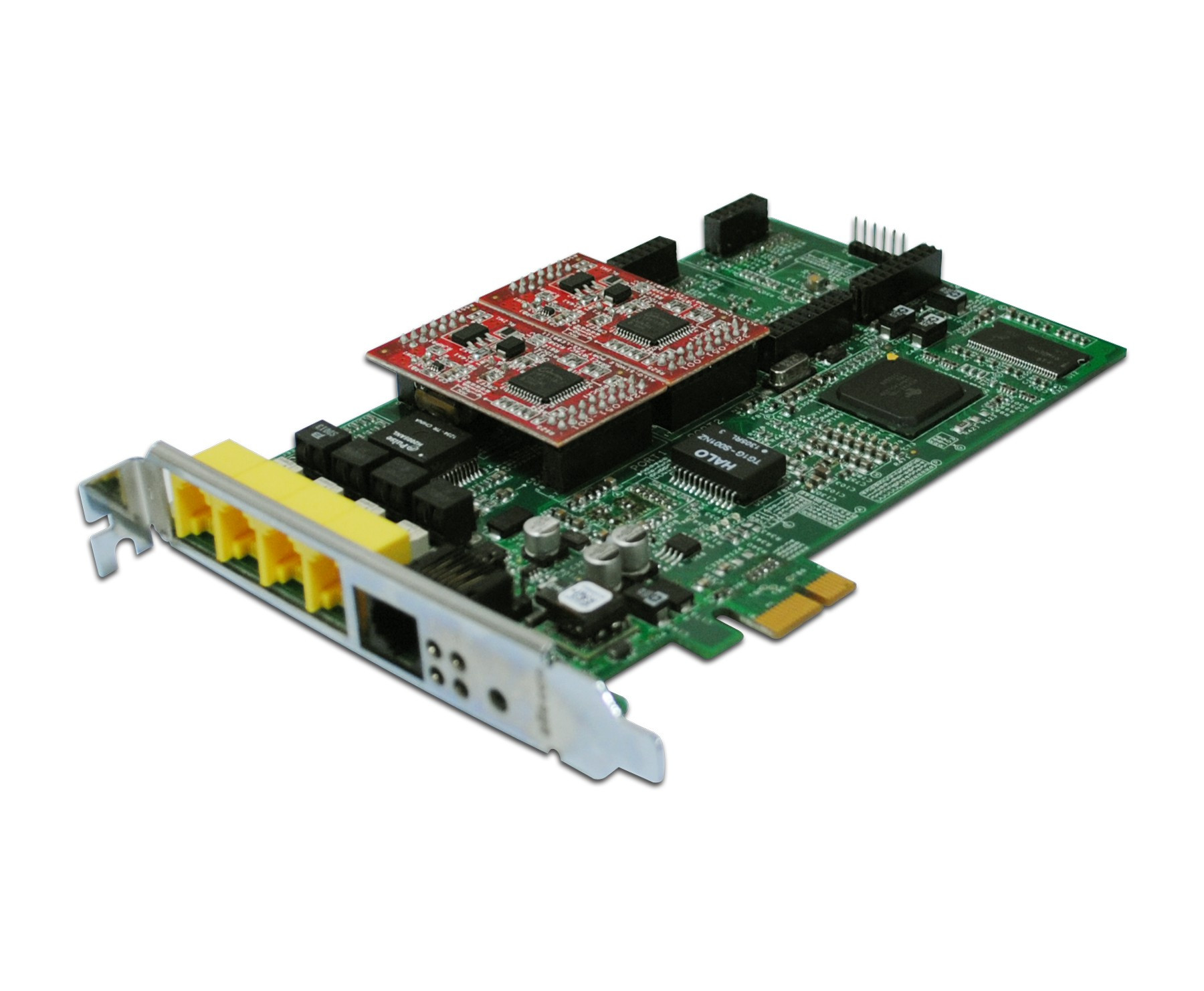

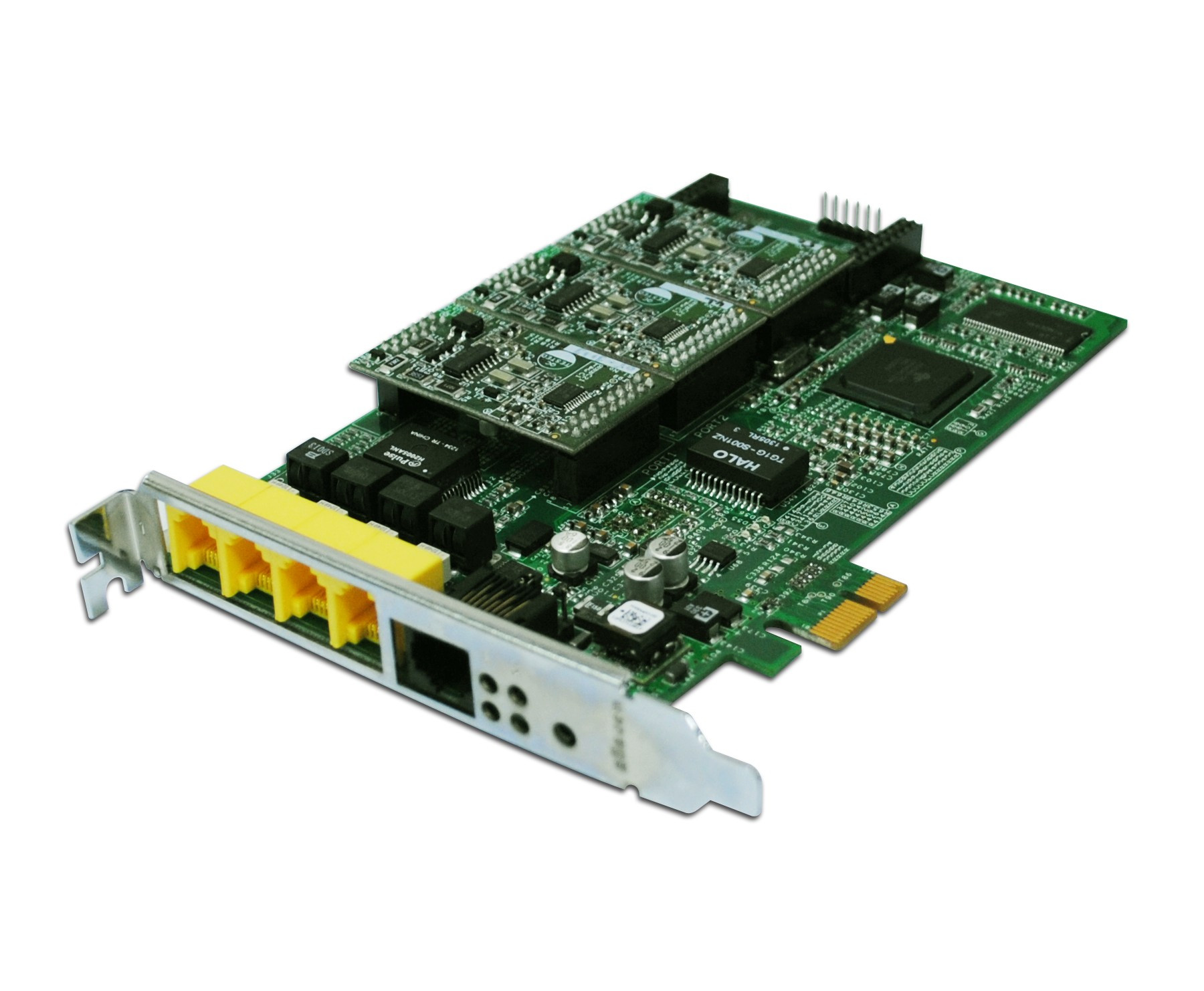

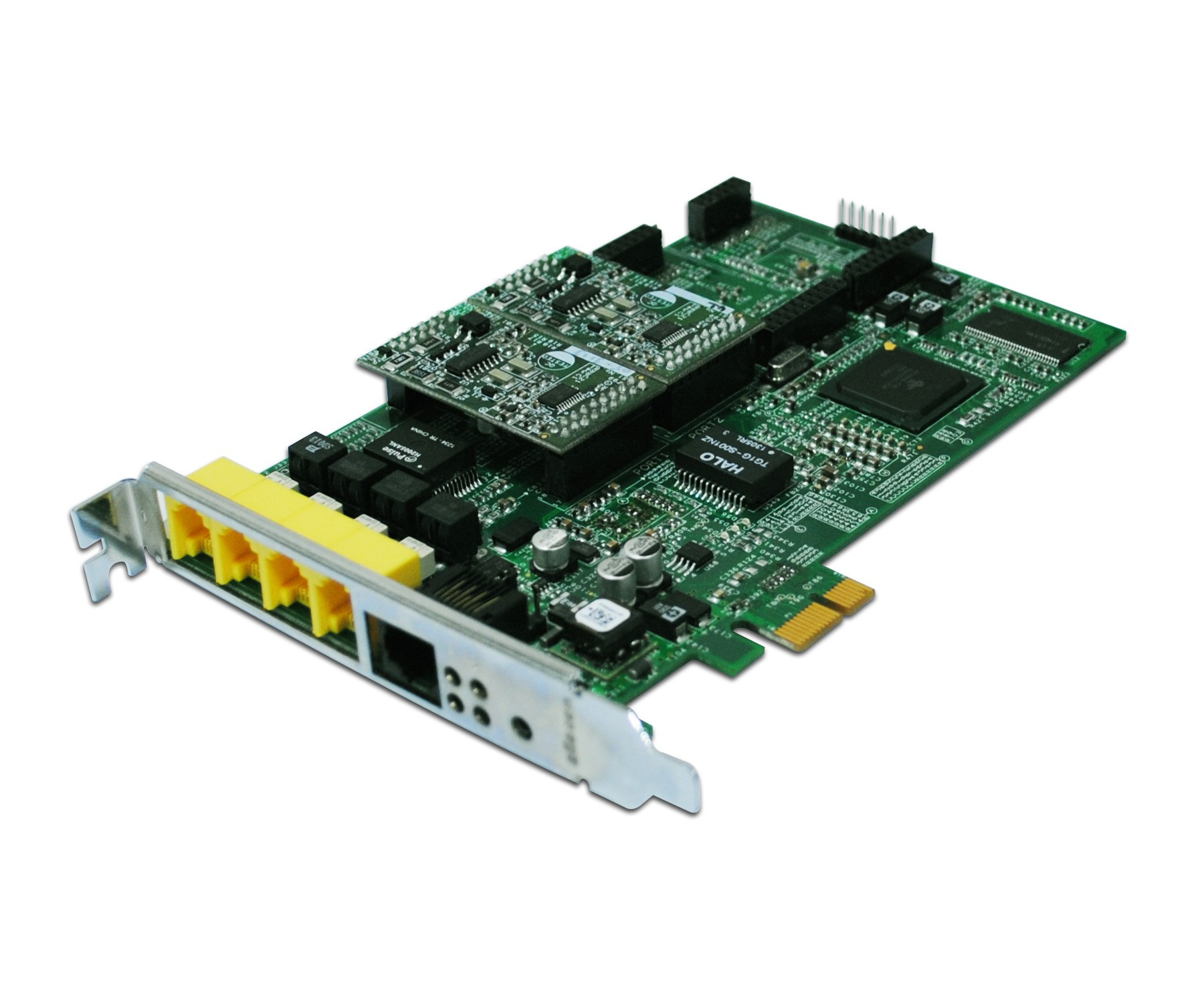

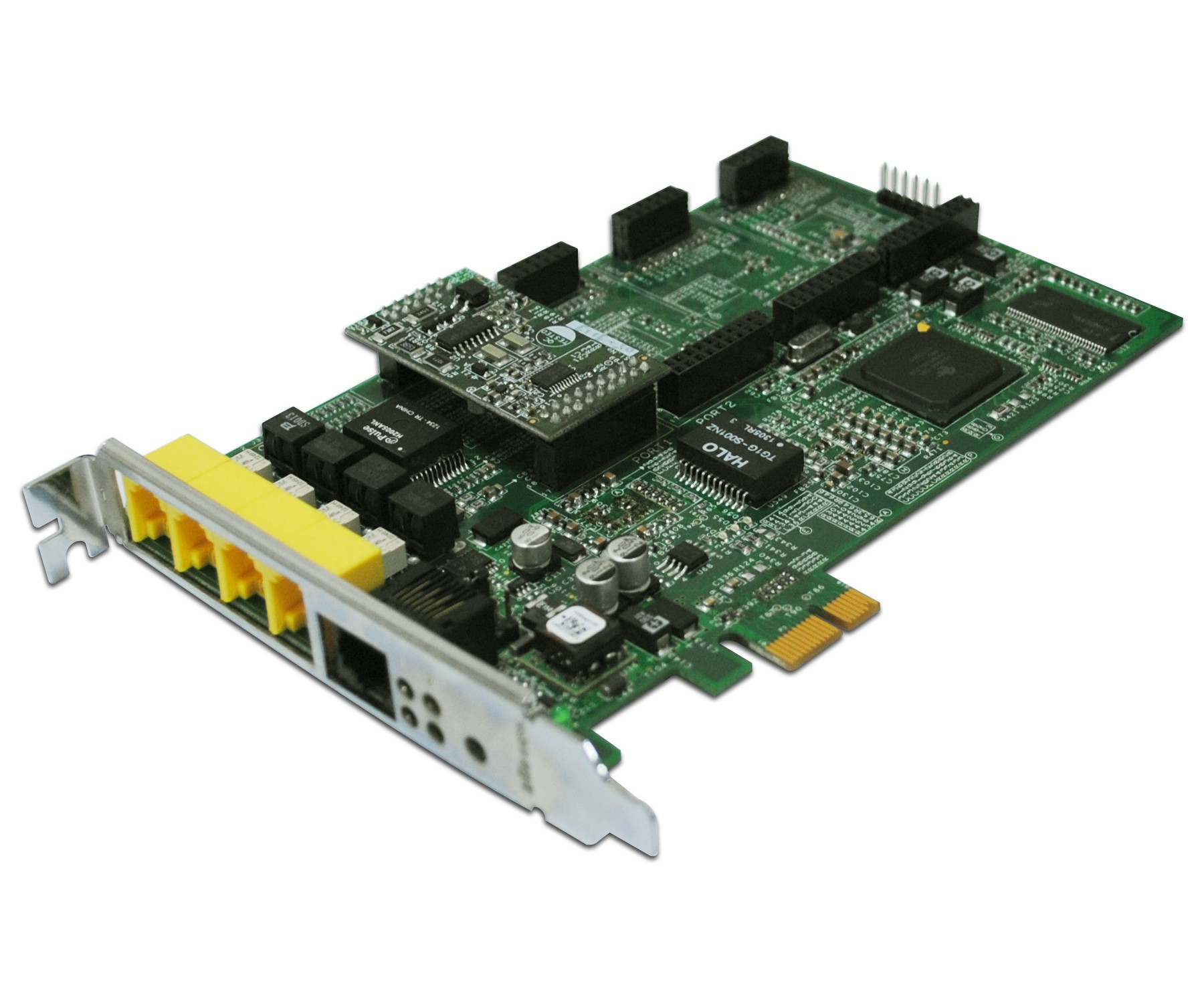

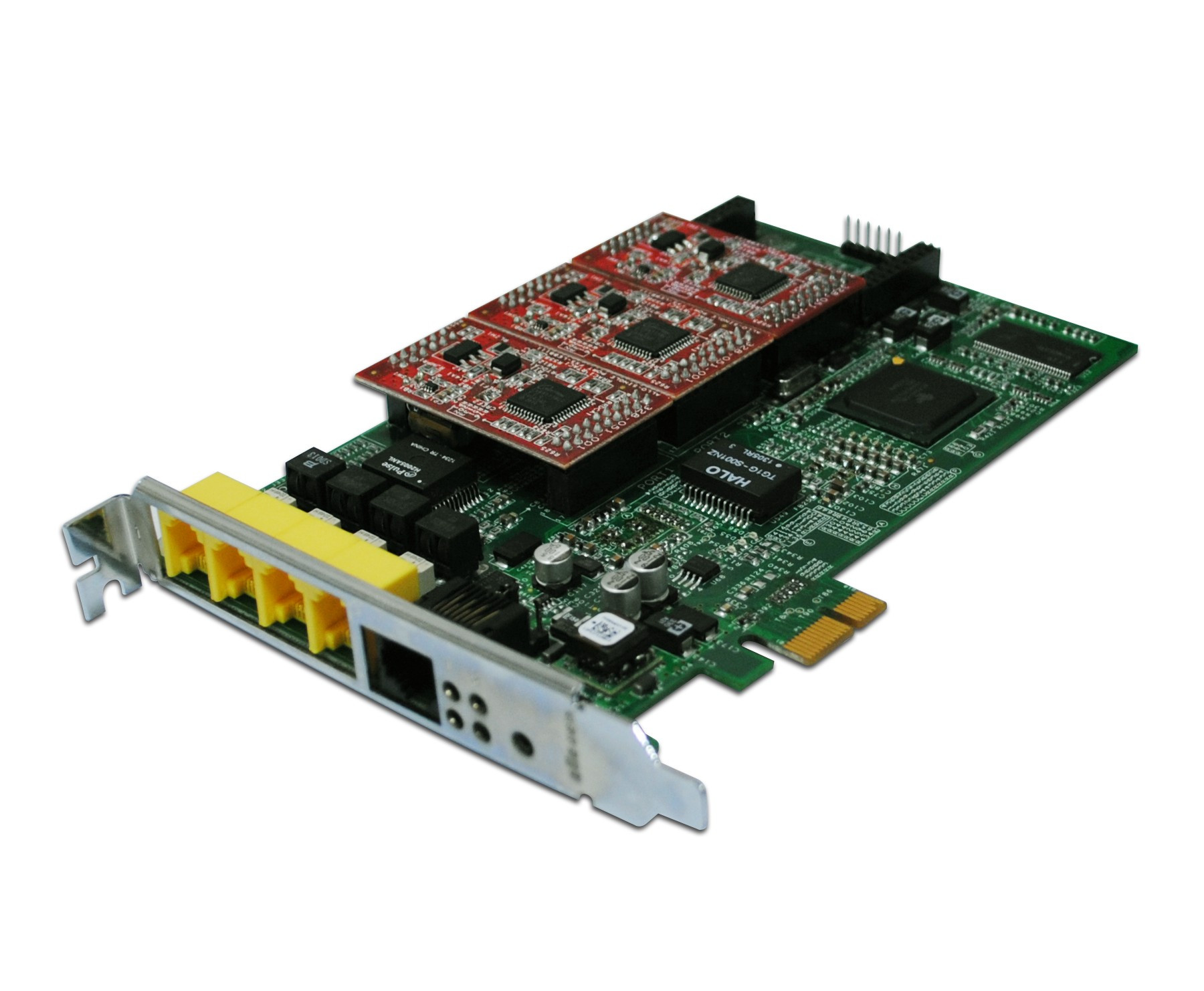

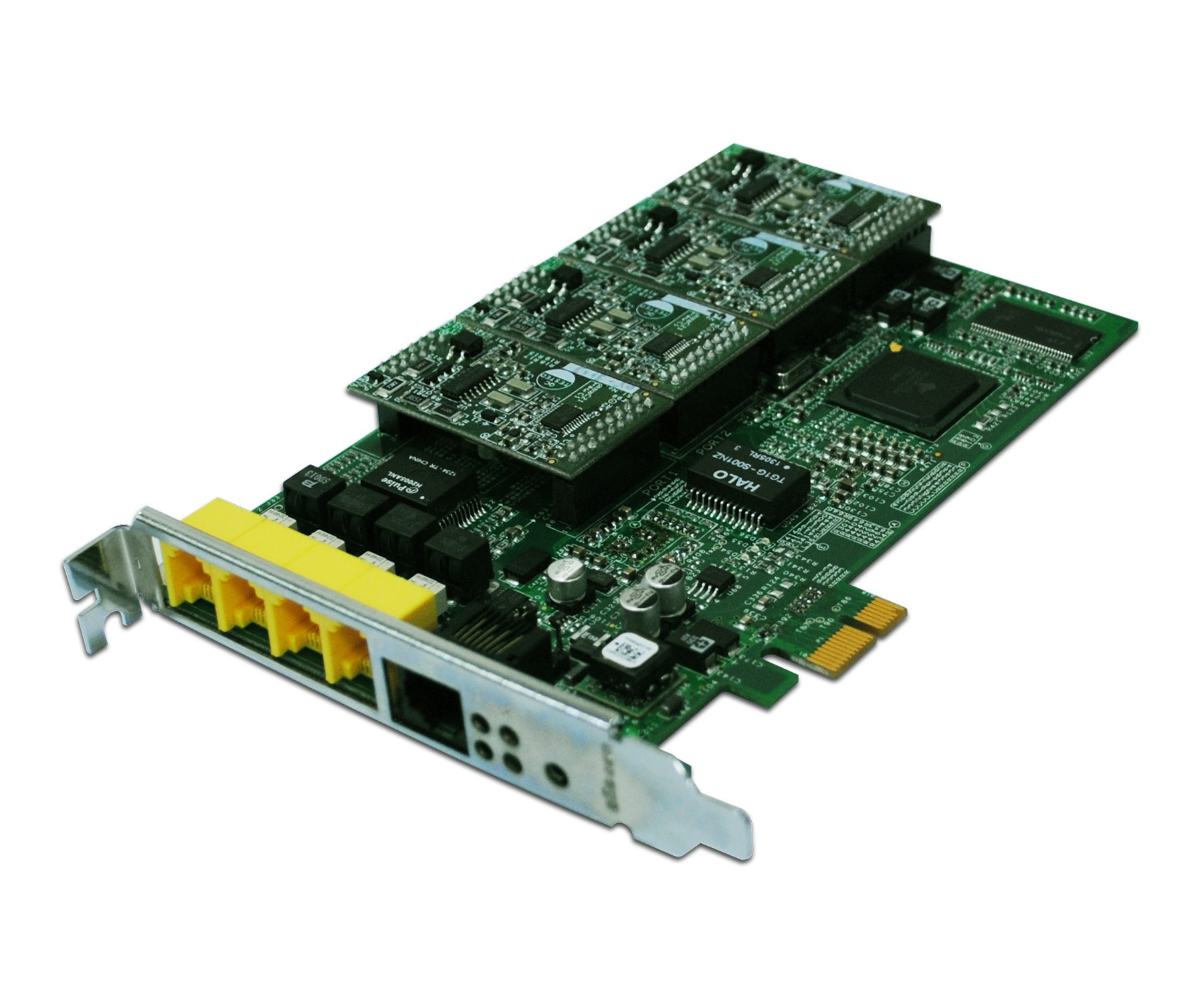

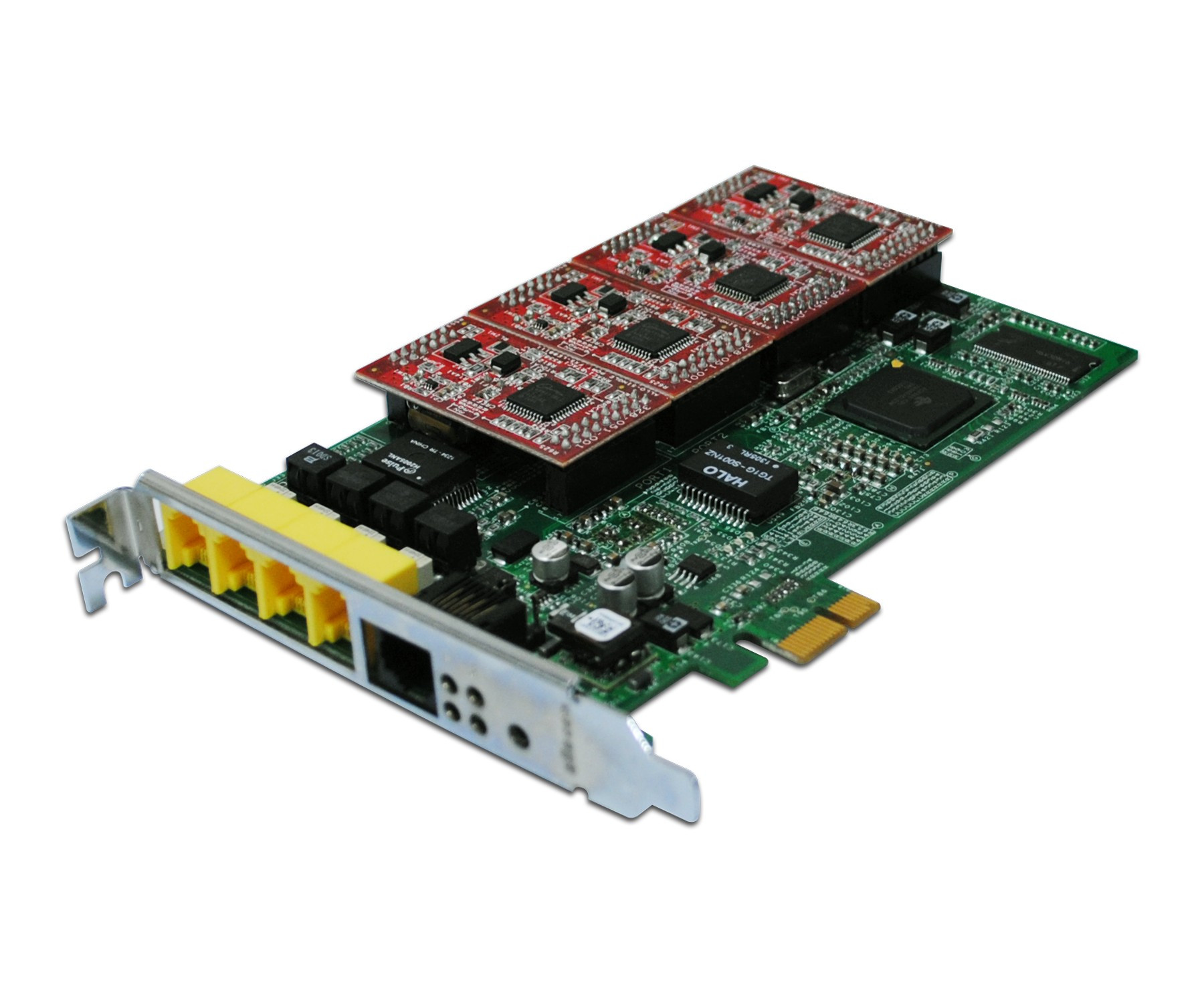

Analog Active Card

Price: Price:

5 Years + 3 Month $ Back

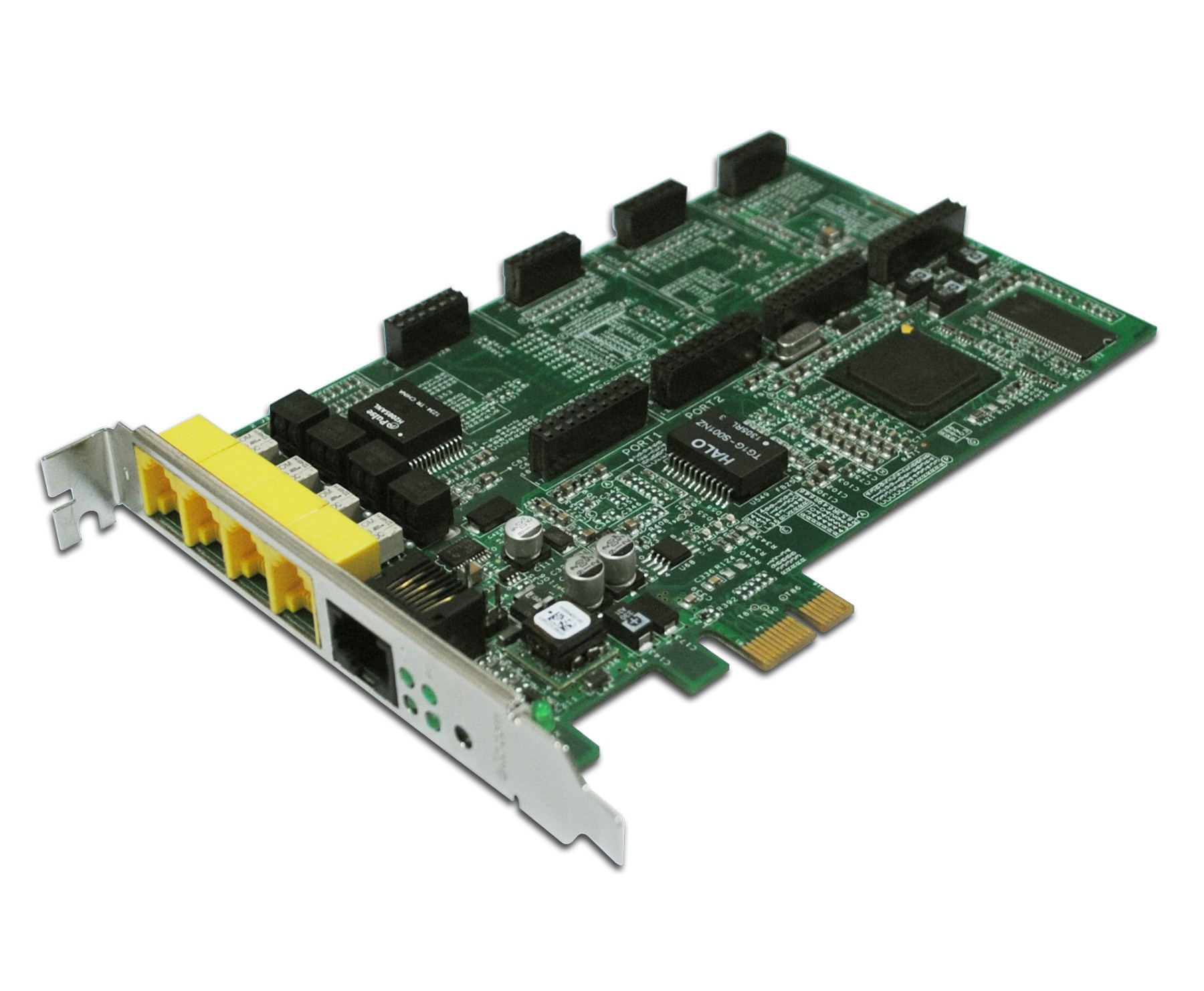

Base Card Included

Click hereOut of Stock

Why ACTIVE? All of the cards available on the market are called PASSIVE or DUMB cards.

The difference is that our card takes care of the majority of operation on board thus reducing the load on the CPU. Furthermore, our product is detected as a network card in both LinuxTM and WindowsTM systems.

Once the driver is installed in your system, you can start configuring the card through an easy to use interface and start using it with your preferred PBX platform (3CXTM, AsteriskTM, ElastixTM...). Hardware DSP for Line Echo Cancellation (carrier grade 128ms) and transcoding is included.

Works With
Works with 3CX Works with Asterisk Works with FreeSwitch Works with Trixbox Works with FreePBX
FCC Certified CE Certified

  • Compatible with 3CXTM, ElastixTM, AsteriskTM, TrixboxTM, FreePBXTM, FreeSwitchTM and others
  • Windows/Linux compatible (all versions)
  • On board 128ms hardware Line Echo Cancellation DSP
  • On board Transcoding (G711 ulaw/alaw, G722, G723.1, G729) DSP

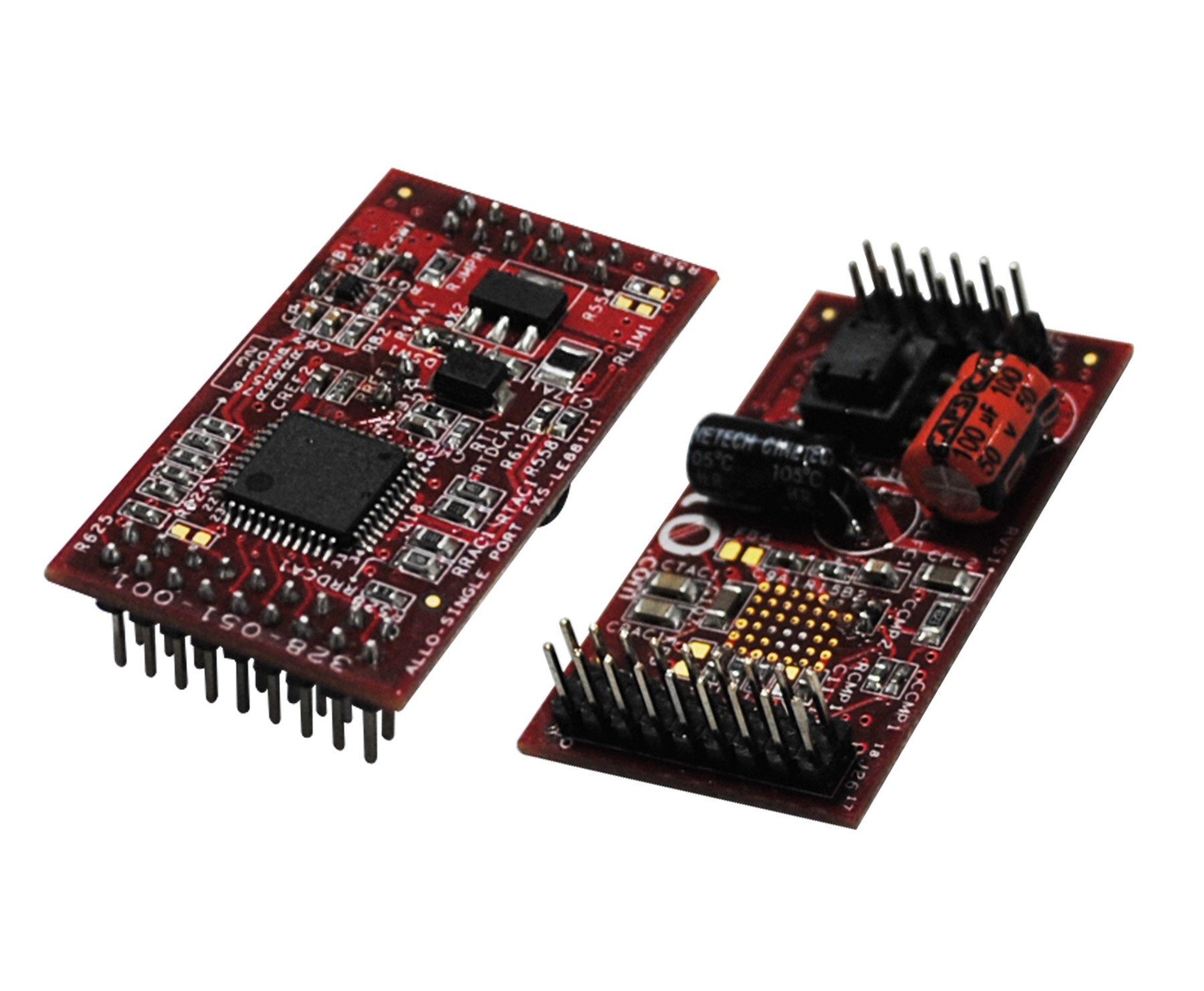

  • 4 analog ports (FXO or FXS)
  • T.38 fax relay
  • Pre configured for almost plug and play experience
  • Clean and easy to understand GUI
  • Caller ID supported
  • DTMF Digit Detection and Generation supported
  • SIP User Agent IETF RFC3261 compliant
Technical Specifications

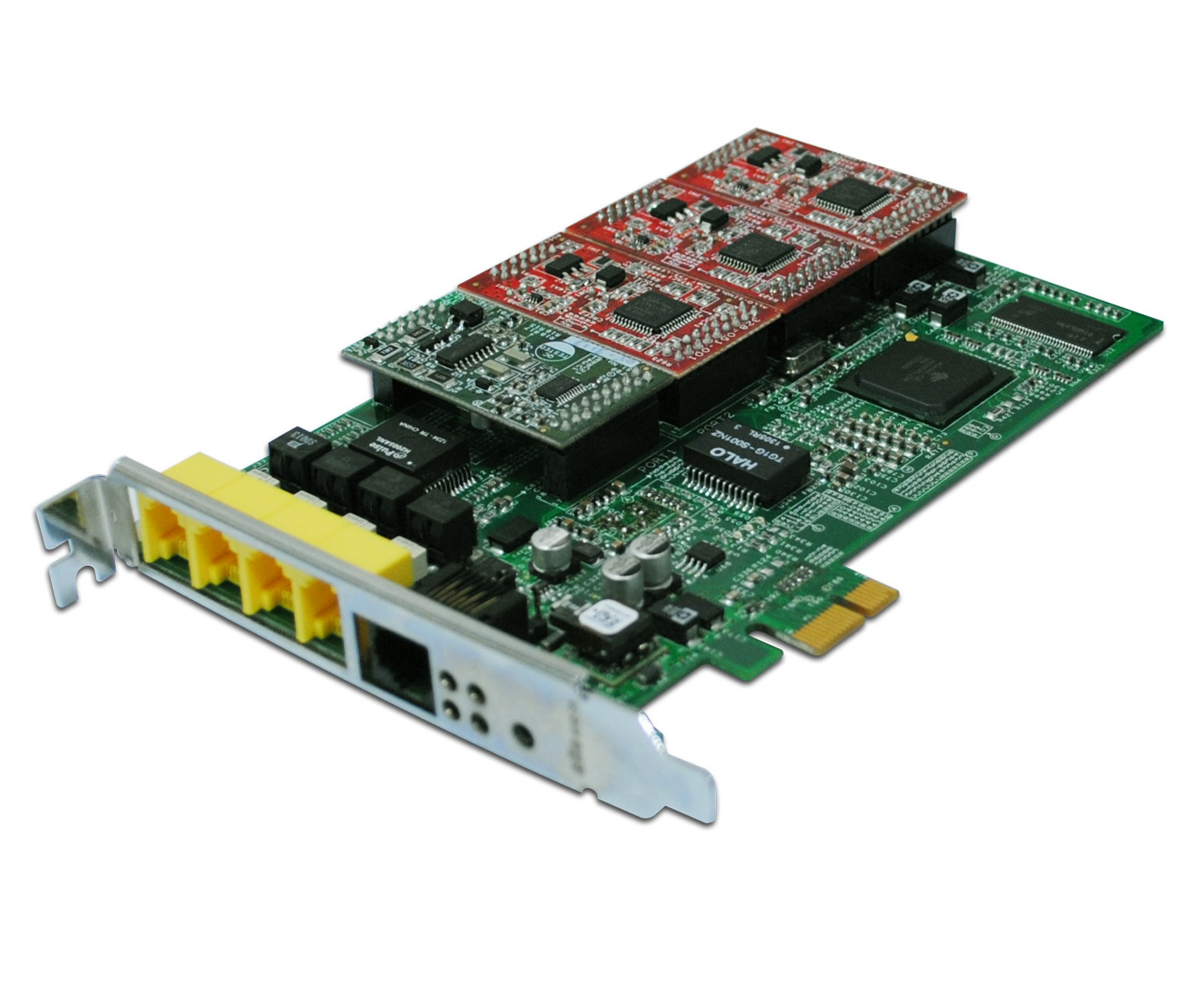

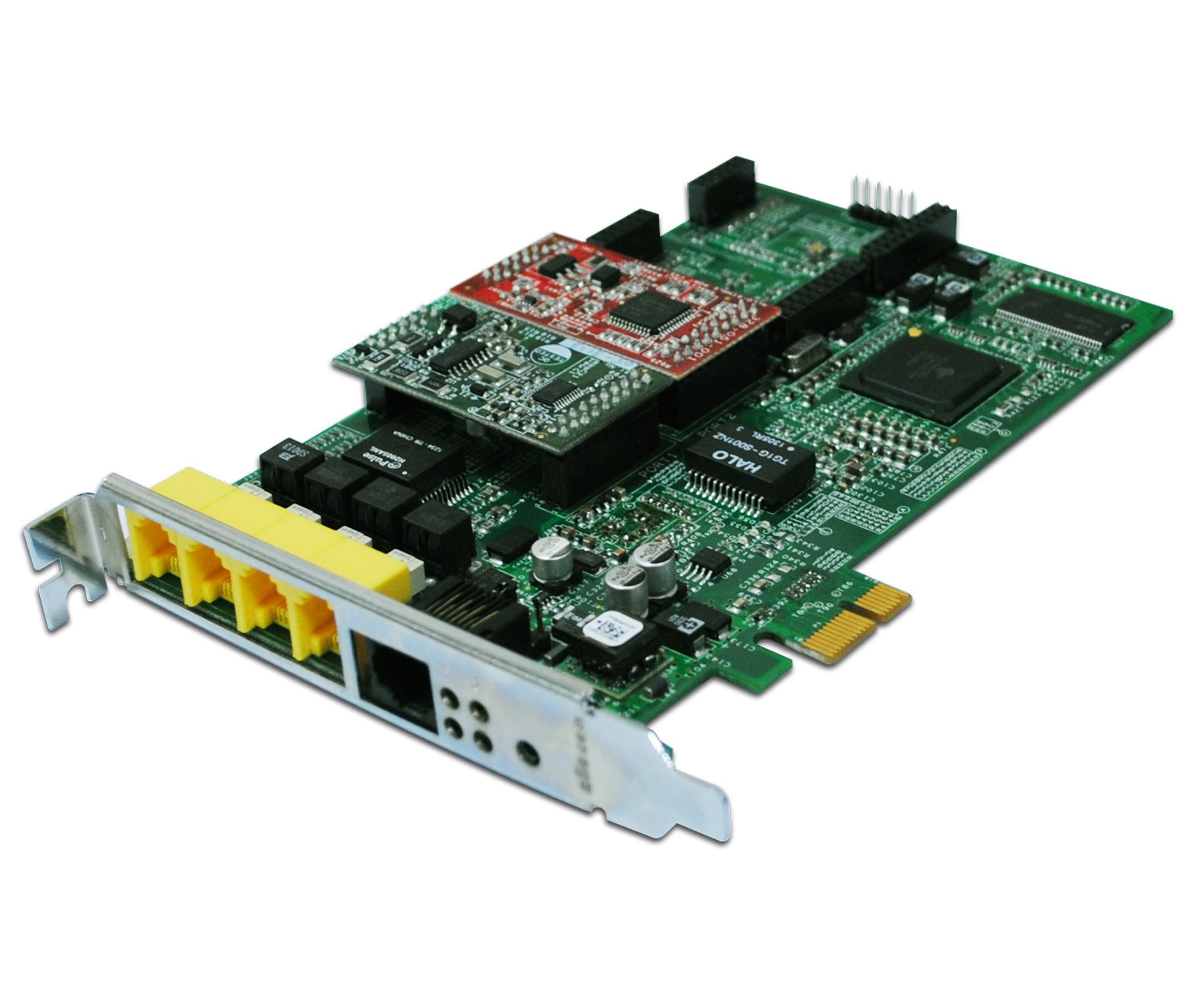

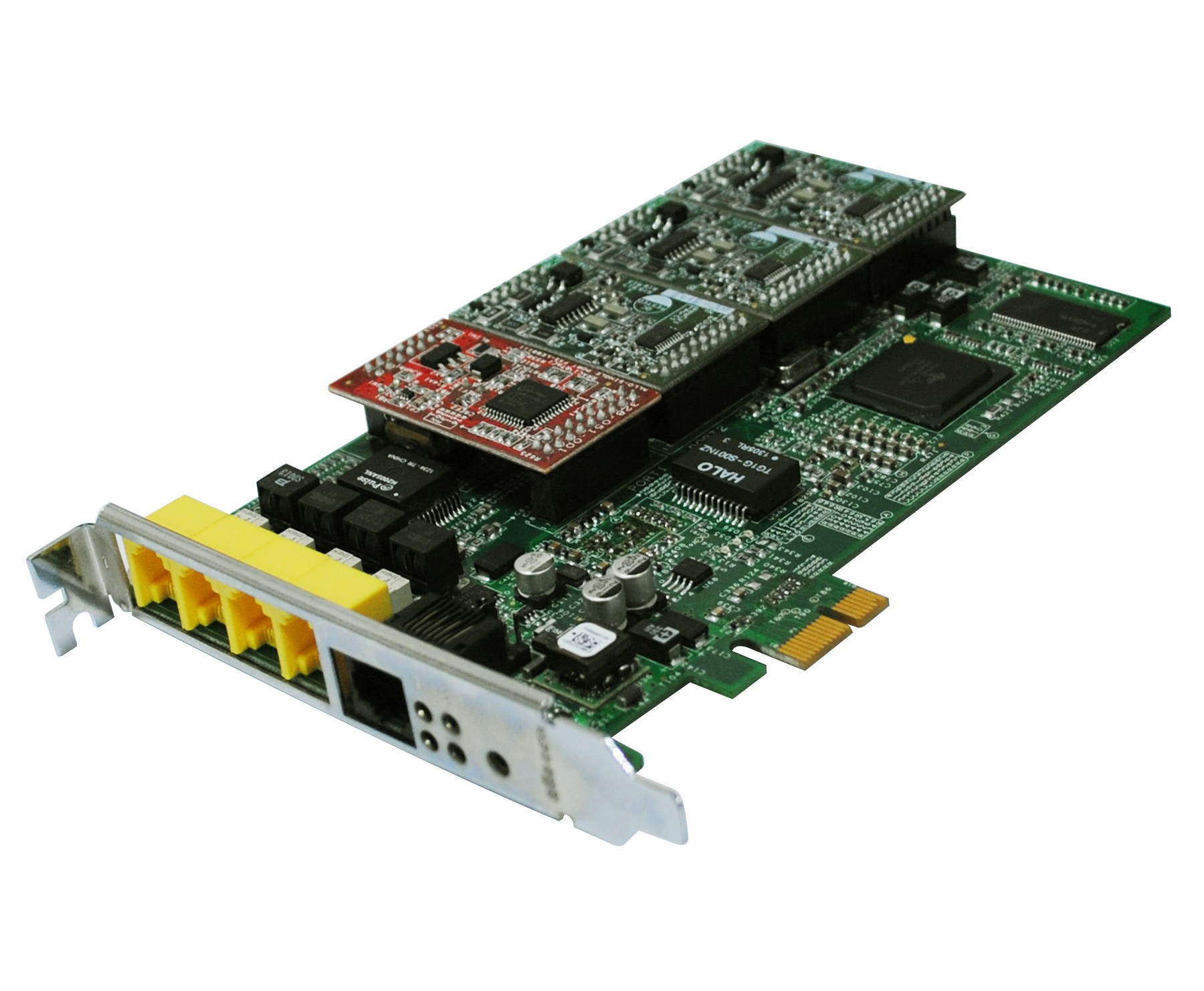

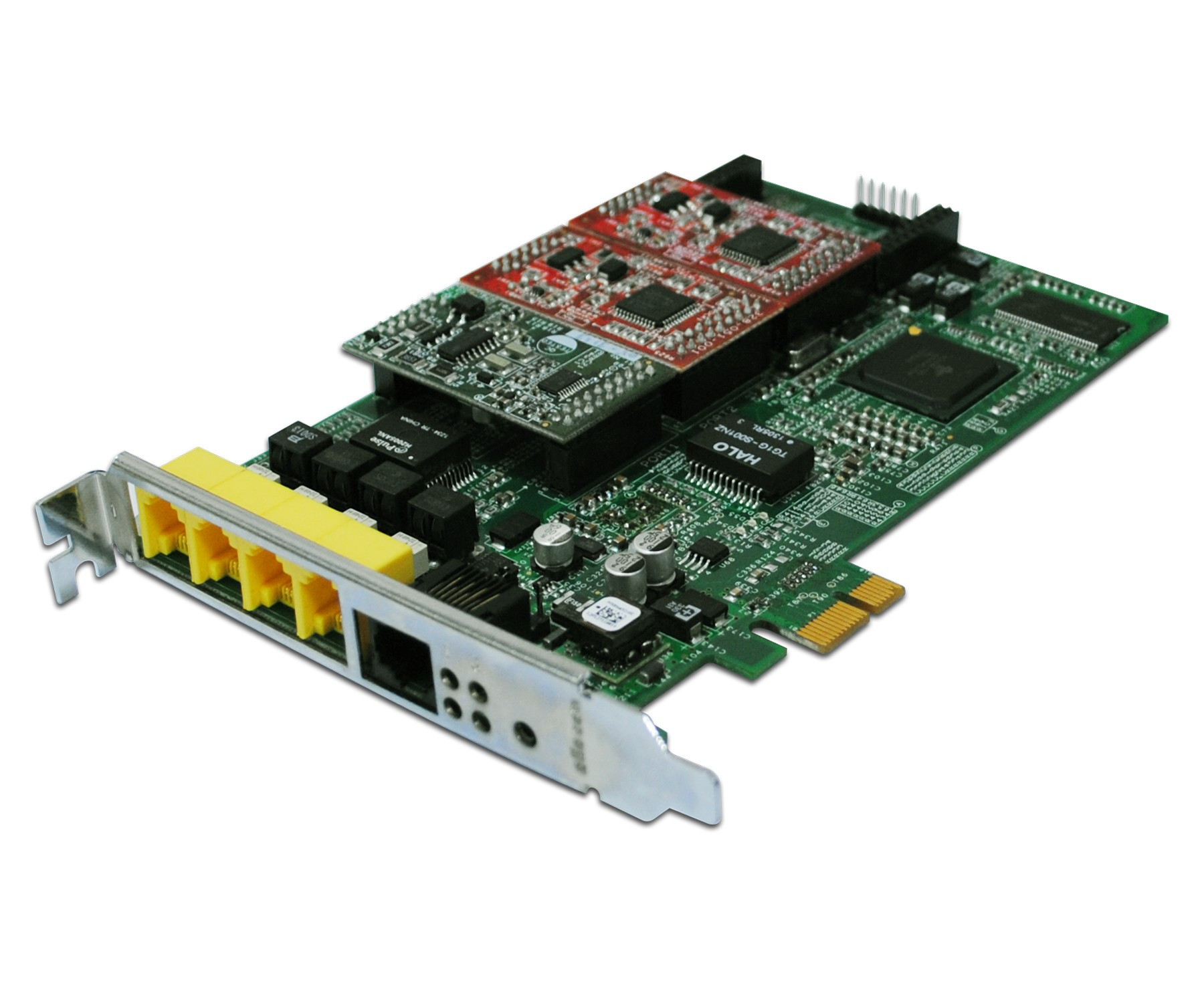

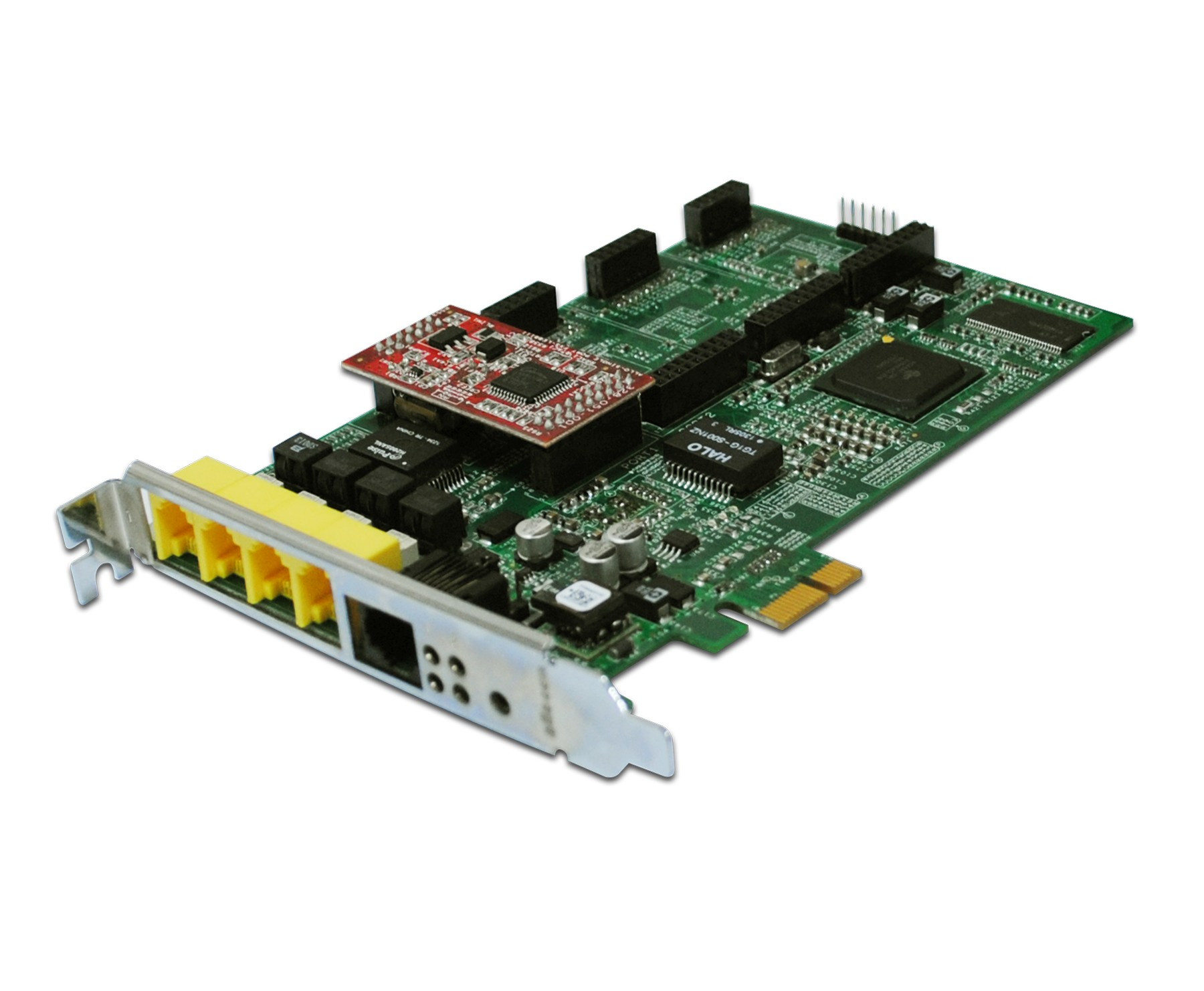

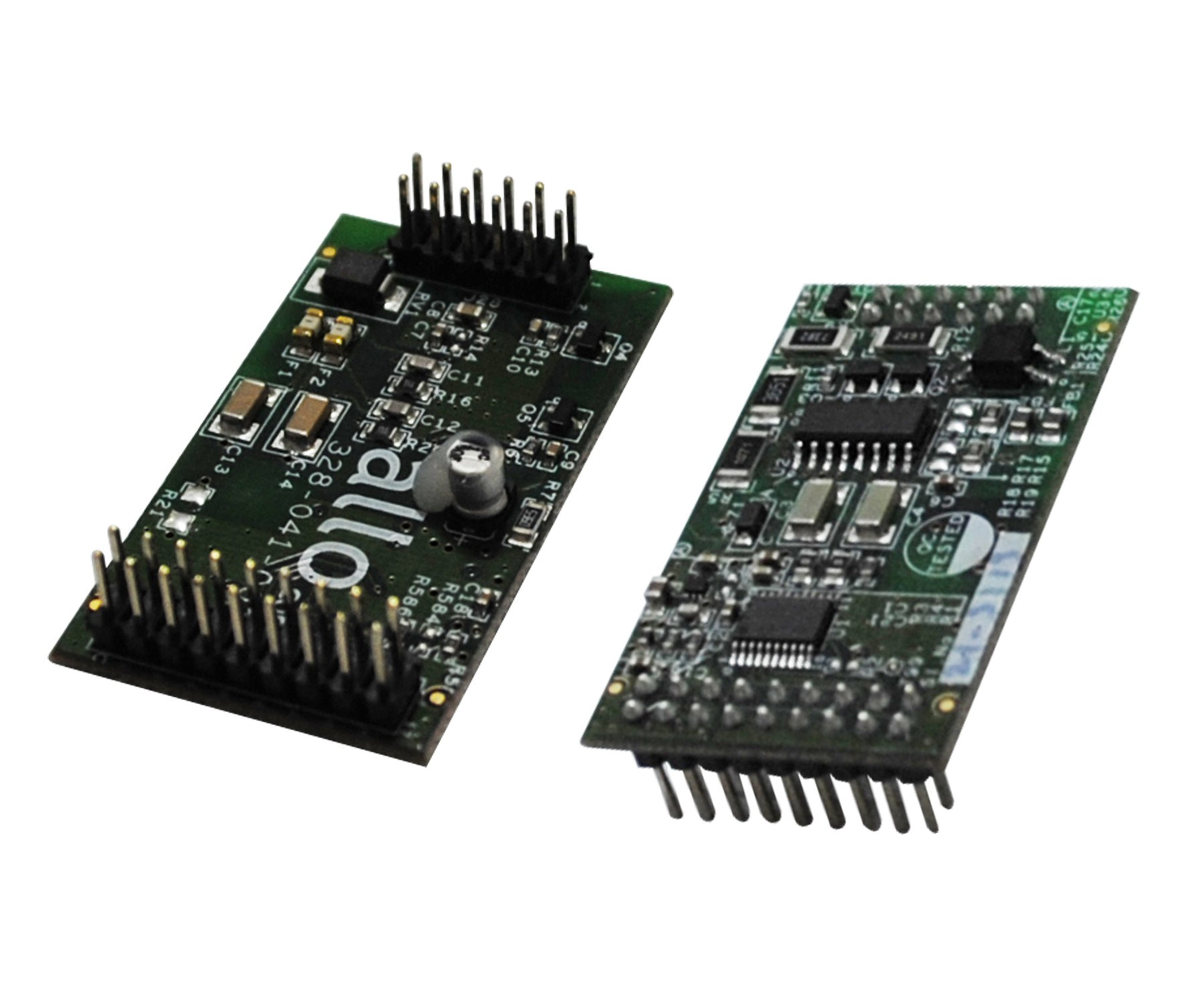

  • Up to 4 ports through a combination of FXS and FXO modules
  • RJ 11 connector
  • Codecs: G.723.1 , G.729 a/b, G.726 , G.711 u/a G.168 Echo Cancellation, up to 128ms tail length
  • Voice Activity Detection / Comfort Noise Generation
  • DTMF Digit Detection and Generation
  • T.38 fax relay
  • SIP RFC3261 compliant
  • PCI express X1 compliant
Physical & Environmental
Operating Temperature 0°C to 50°C
Storage Temperature -40°C to 125°C
Dimensions 16.8cm x 10.8cm x 1.7cm
Weight 158g
Support & Downloads


  • Broadcom Ethernet Drivers ( Windows & Linux) - Download Now
