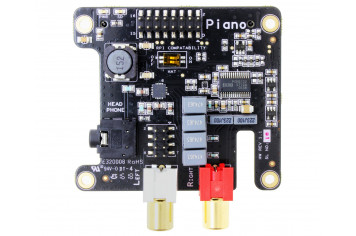

Piano DAC for raspberry pi (EU)


$34.00 USD

Approx. €28 EUR
Items Shipped From EU
No Extra Fees For You

Warranty
1 Year

NOT IN EUROPE? CLICK HERE

Purchase an Acrylic Case (for RPi or Sparky)
Purchase a Standoff Set

Discounted Pricing
2-4 Units: $32 USD / €29 / unit
5 Units: $31 USD / €28 / unit

Make 15%-20% Selling This Product

Top Reviews

Roonlabs.com
"Set-up of the system was fast and easy – 10 minutes and I got stylish open-work design on my home-office table..."




Our Piano DAC Shield has been designed for those seeking audio perfection. Every detail has been thought of!

First we start with 4 LDOs, one & two for the analog (avcc), the third for the digital (dvcc) and the fourth for the headphone amplifier.

Then we used film capacitors and thin film resistors in the audio path. All brand names (Vishay, SRcap, Stackpole...). Finally, our PCB has very good partitioning for digital and analog section.

If you understand all of the above, great! That means that you are an audiophile. If not, don’t worry… Just listen to the PIANO music!

PIANO houses a headphone amplifier based on the TPA6133A2 chipset and 3.5mm phone jack.

Features

HAT Compliant
  • Piano is a Slave DAC (Slave DACs are compatible with Sparky or Kali)
  • Dedicated 384 kHz/32bit high-quality DAC PCM5122 for best sound quality
  • 138mW Direct Path™ Stereo Headphone Amplifier TPA6133A2
  • Available with different output connectors: 2 x RCA, 3.5mm phone jack
  • DAC SNR is 112dB
  • DAC THD+N @ - 1dBFS are –93dB
  • Full Scale Output of DAC is 2.1Vrms
  • Dynamic Range of DAC is 112dB
  • Stereo Headphone Output Power is 138mW
  • Stereo Headphone Half Power THD + N @ 1 kHz (%) (kHz) -> 0.008
  • Stereo Headphone SNR is 93dB
  • Stereo Headphone PSRR is 109dB
  • Sampling Frequency ranges from 8 kHz to 384 kHz
  • Ultra-low-noise voltage regulators for optimal audio performance
  • Integrated EEPROM for automatic configuration (with write-protection)
  • Compatible with OSMC / Max2Play / RuneAudio / Volumio / Moode / PiCorePlayer / PiMusicBox / OpenELEC and others + Roon Ready

Piano DAC Components

(click to enlarge)

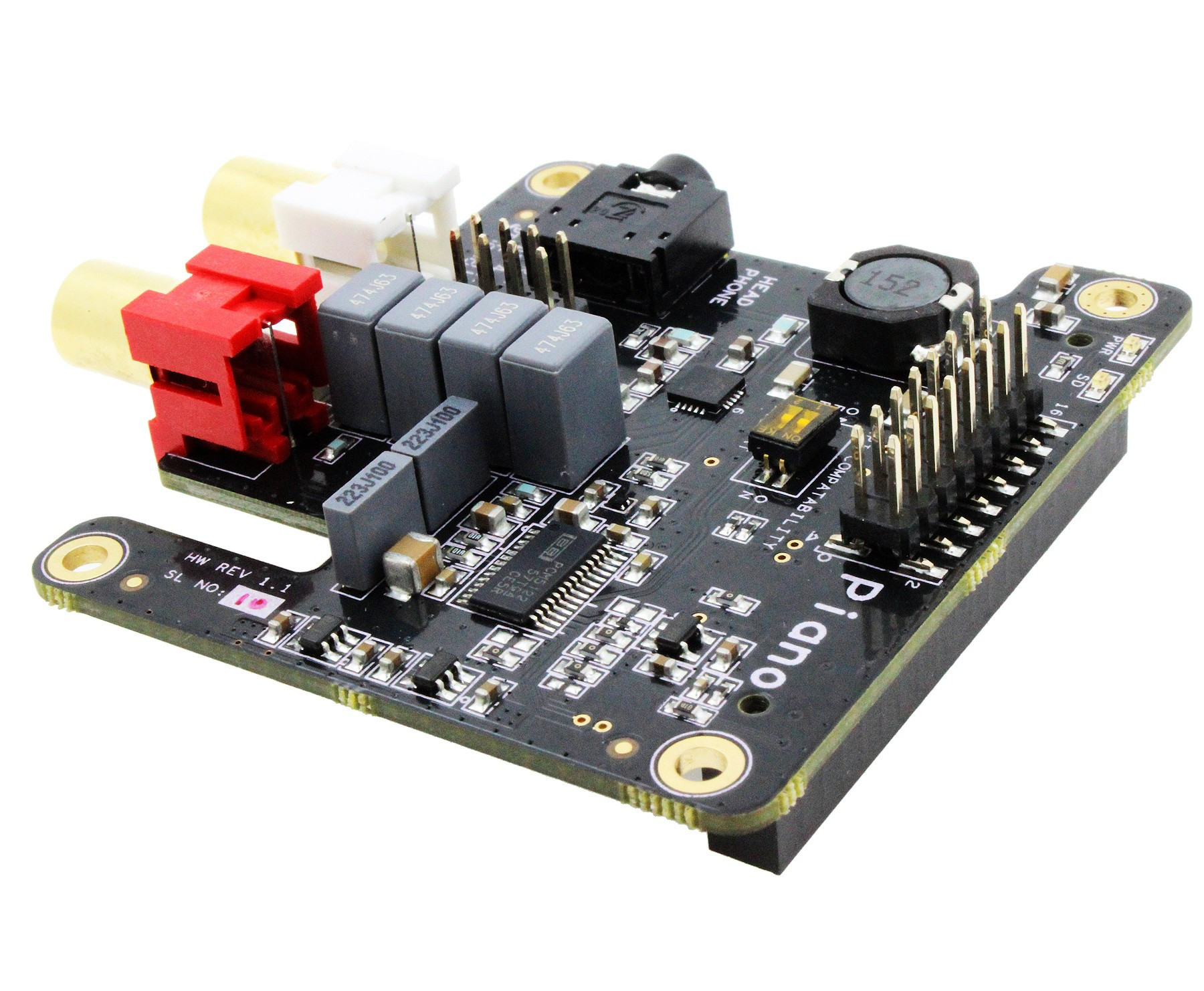

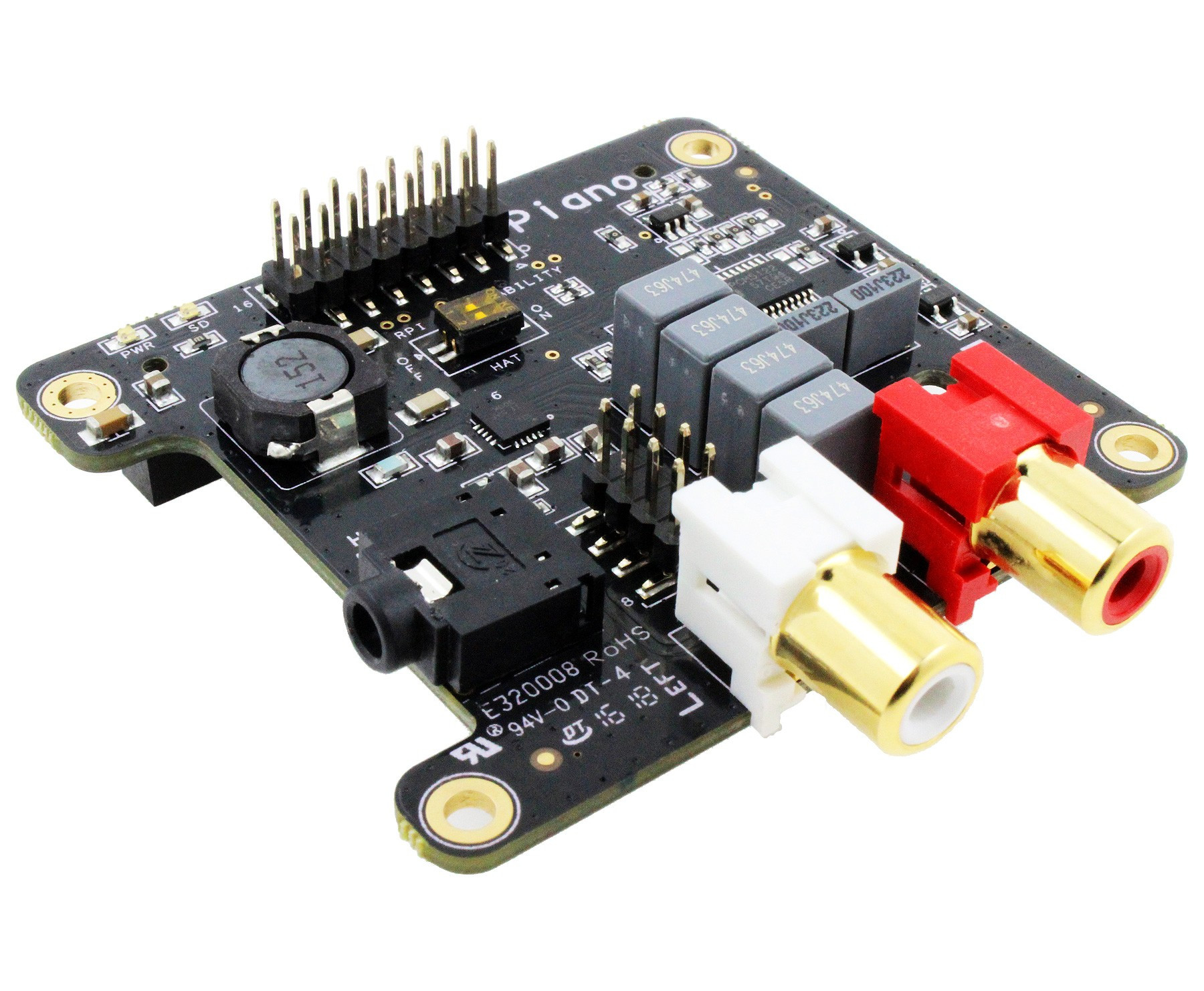

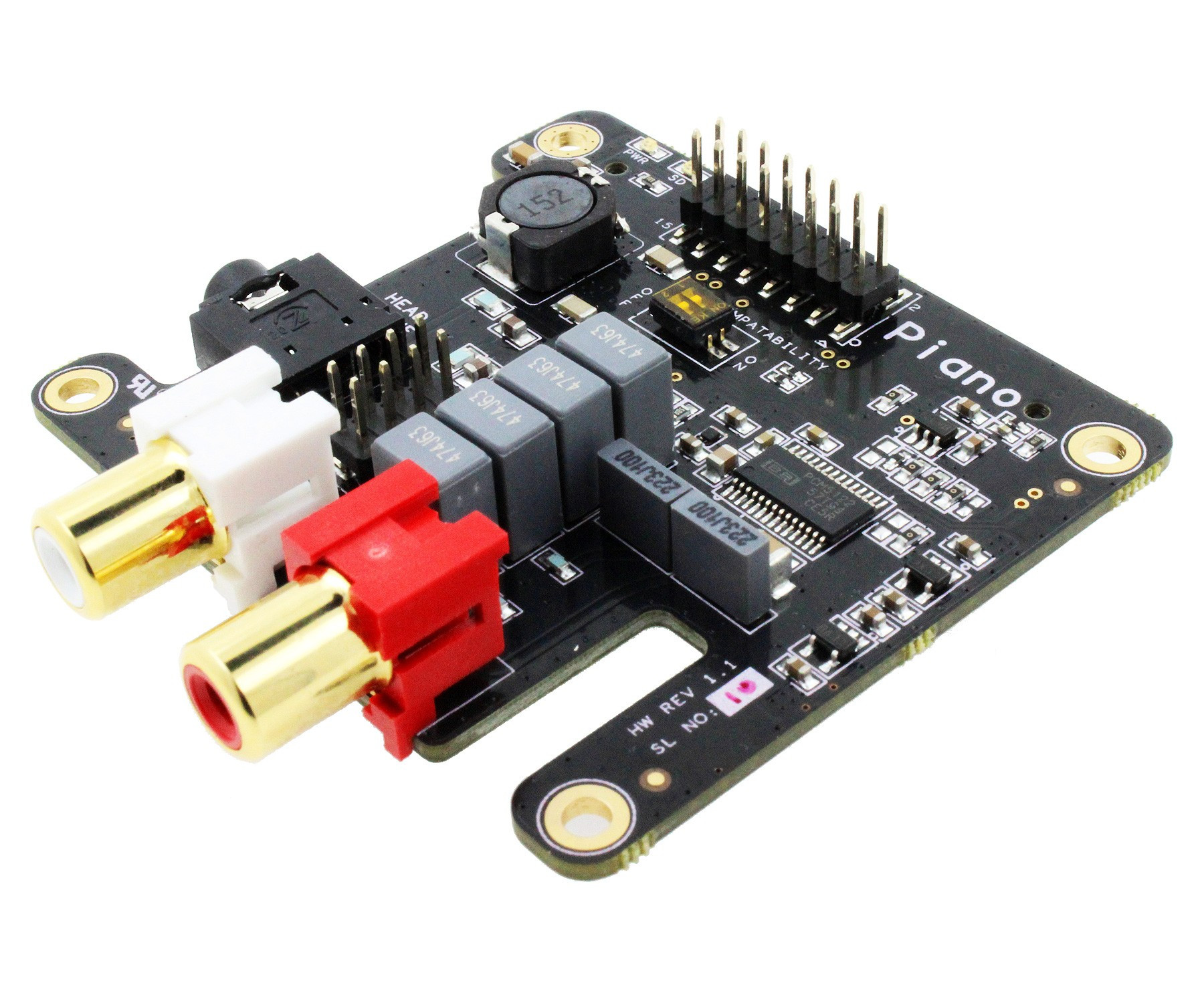

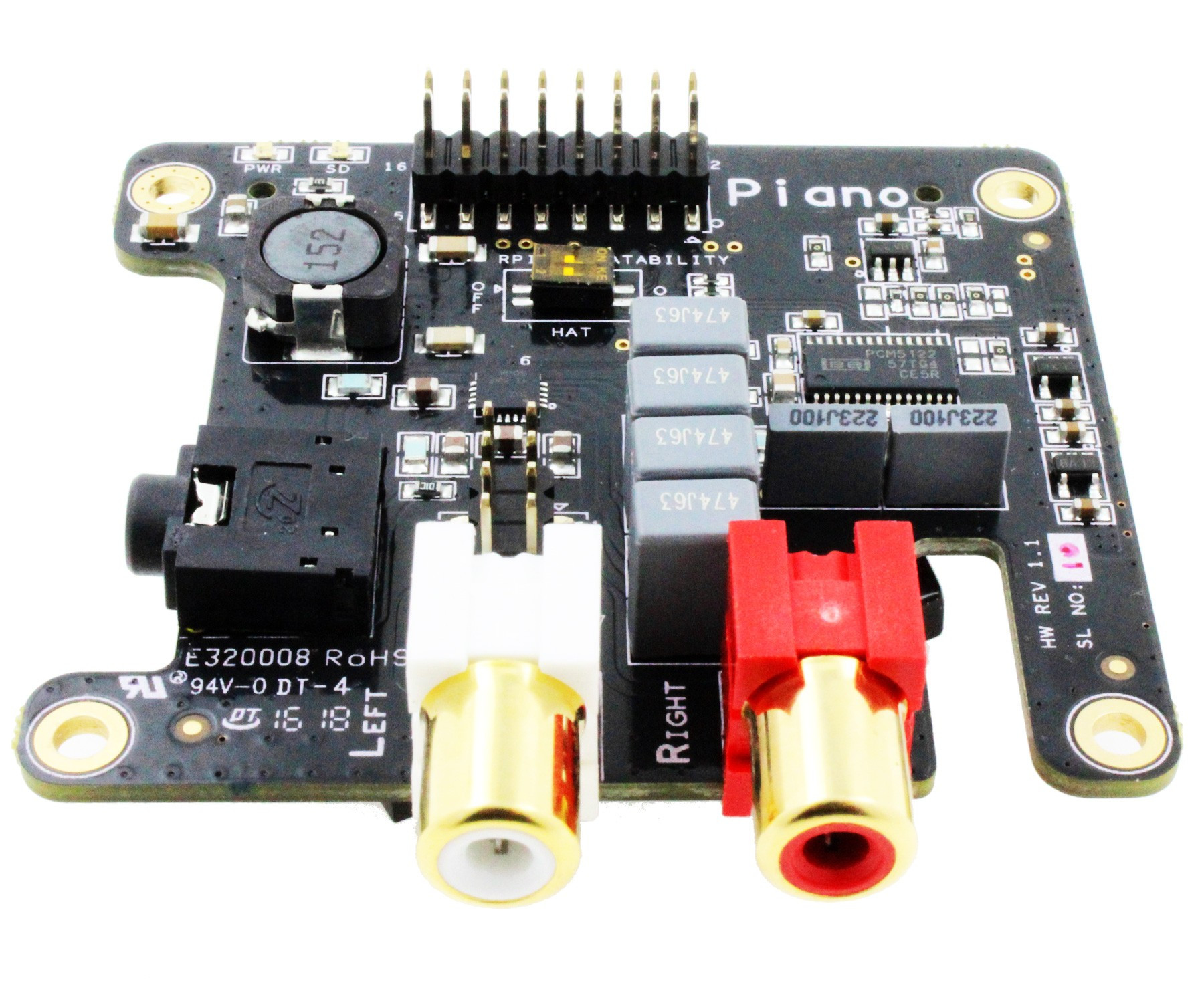

Components

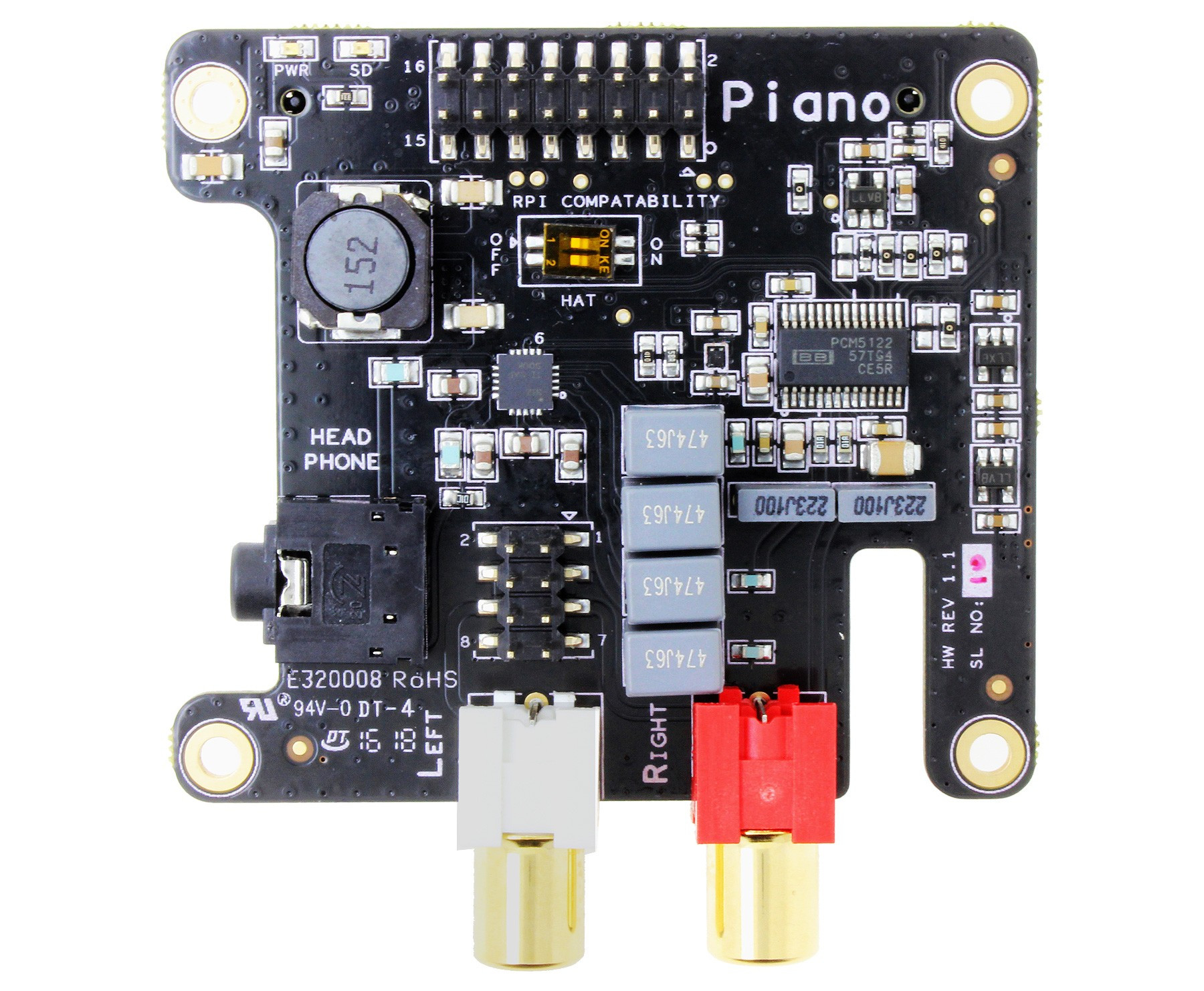

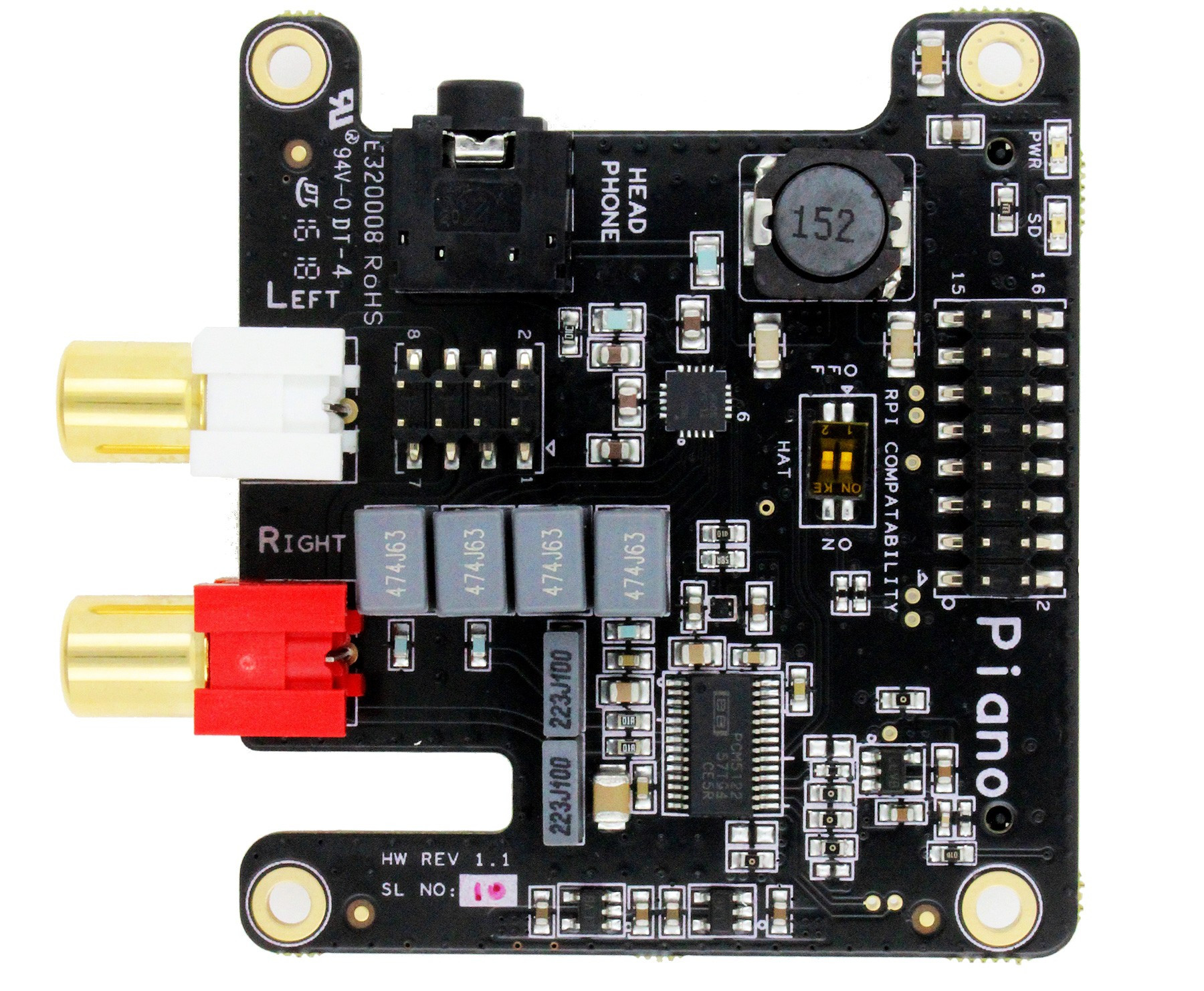

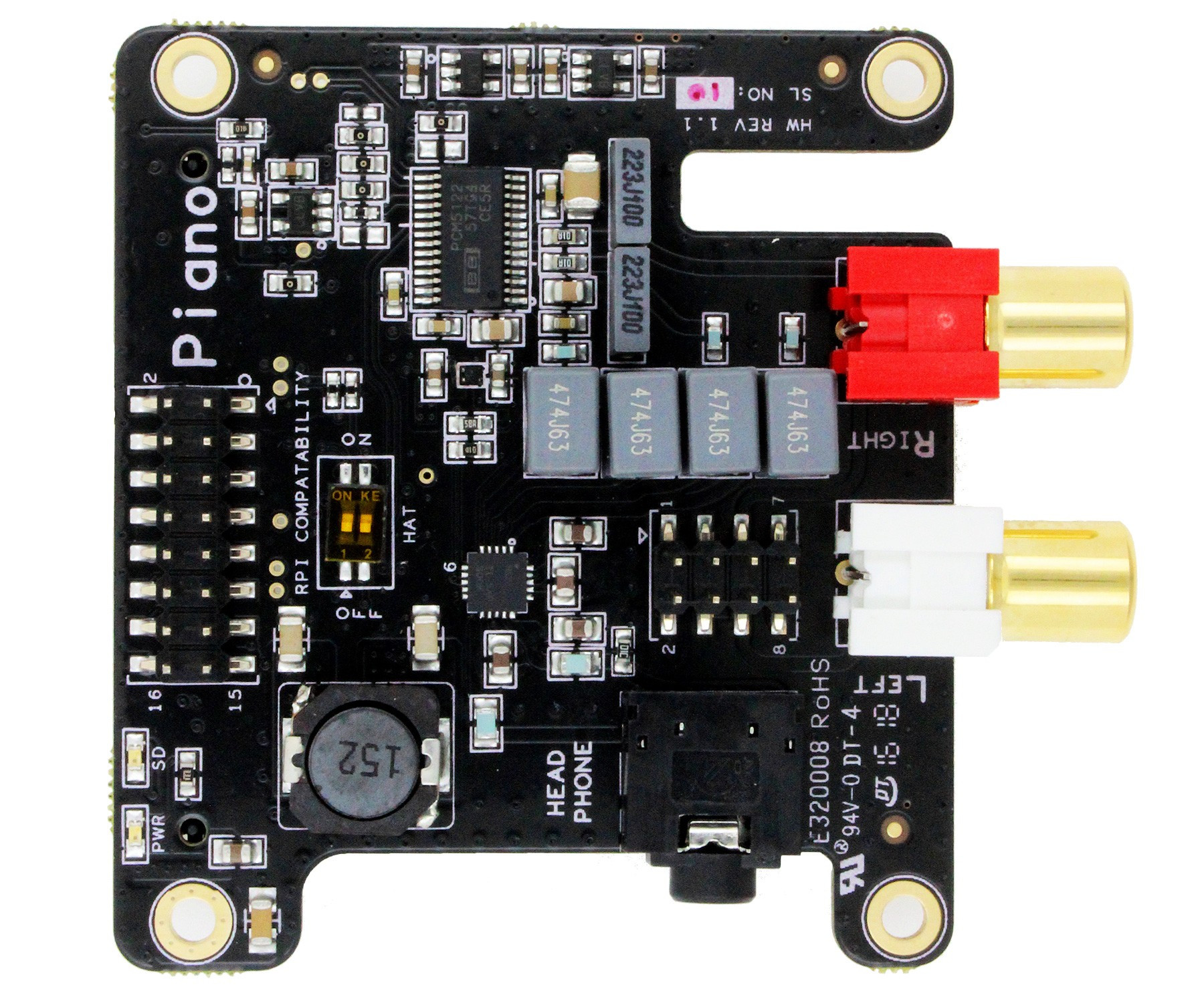

Top View

Top View

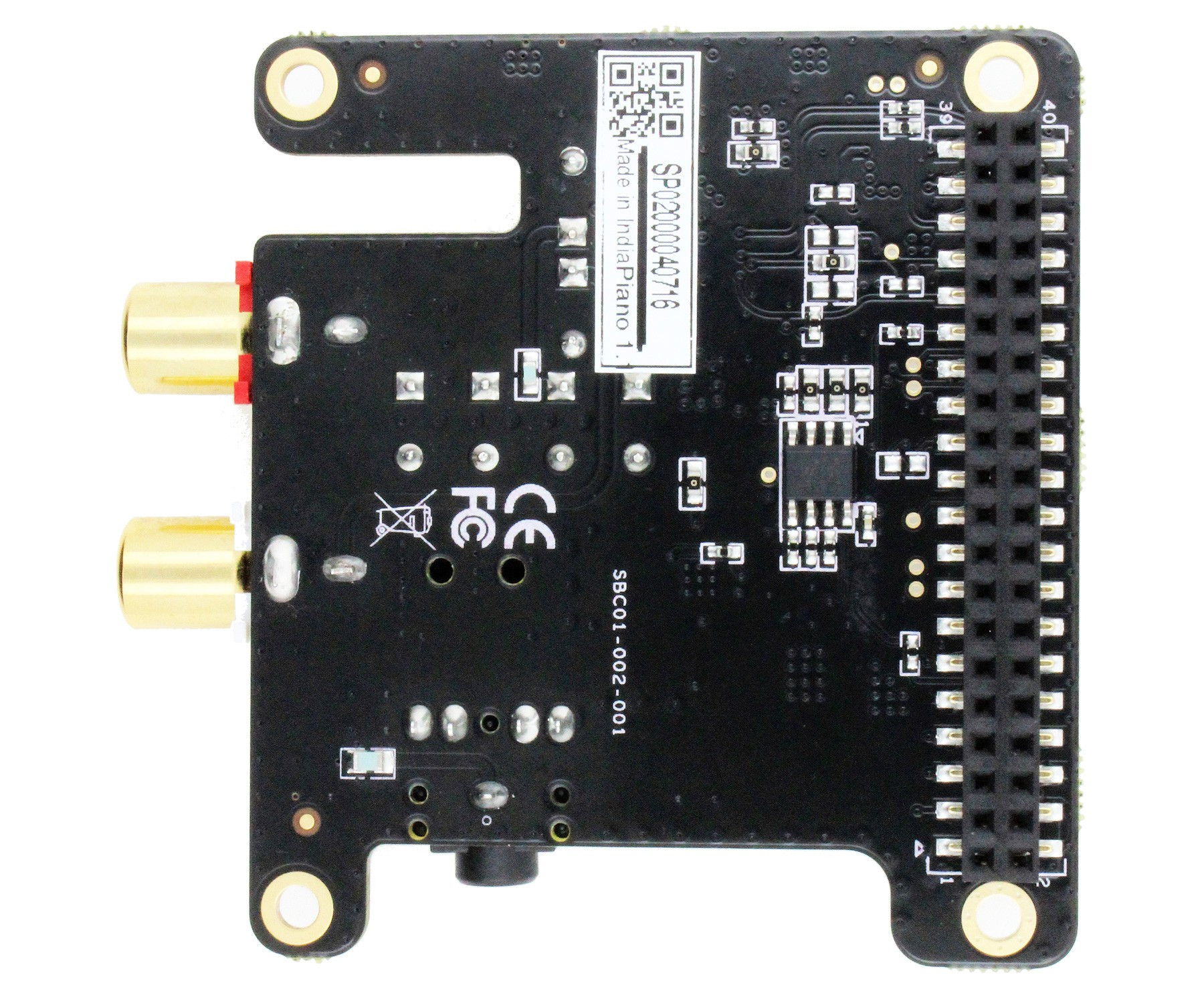

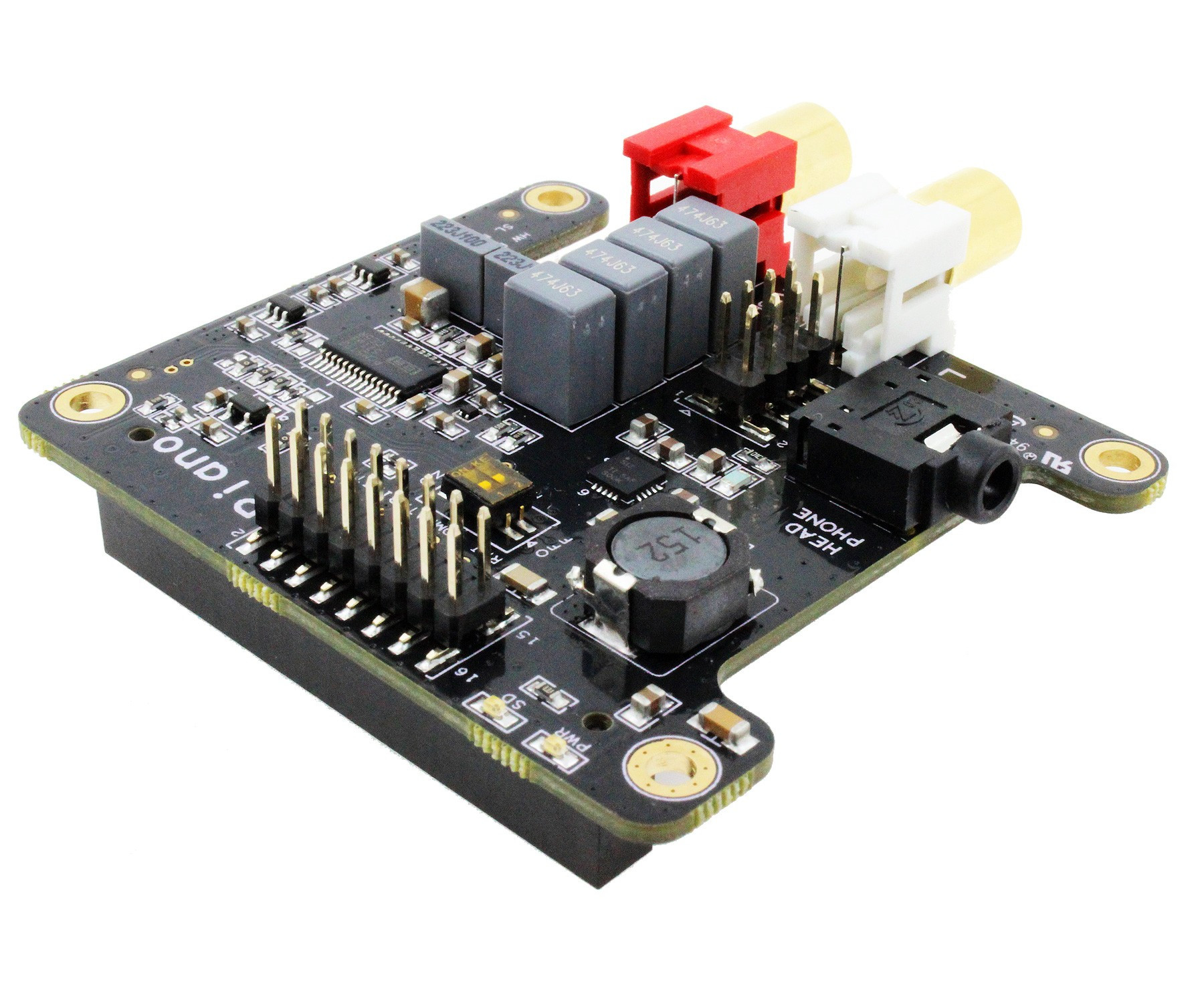

Bottom View

Bottom View

Technical Specifications

DAC

HEADPHONE

CHIPSET PCM5122 CHIPSET TPA6133A2
CONNECTOR GOLD PLATED RCA CONNECTOR 3.5mm PHONE JACK
Full Scale Analog Output 2.1 Vrms STEREO OUTPUT POWER 138mW
SNR 112dB SNR 93dB
SAMPLING FREQUENCY 8kHz to 384kHz @ 32 BIT RATE PSRR 109dB
FEATURES DYNAMIC RANGE CONTROL / EQ / FILTERING FEATURES Advanced POP and Click Suppression
Operating Temperature 0C to 70C
Board Size LWH = 68.7mm * 65mm * 22.2mm
Board Weight 26g

CLICK HERE FOR AUDIO SUPPORT
(You will be directed to ComputerAudiophile where we have centralized our support center)
