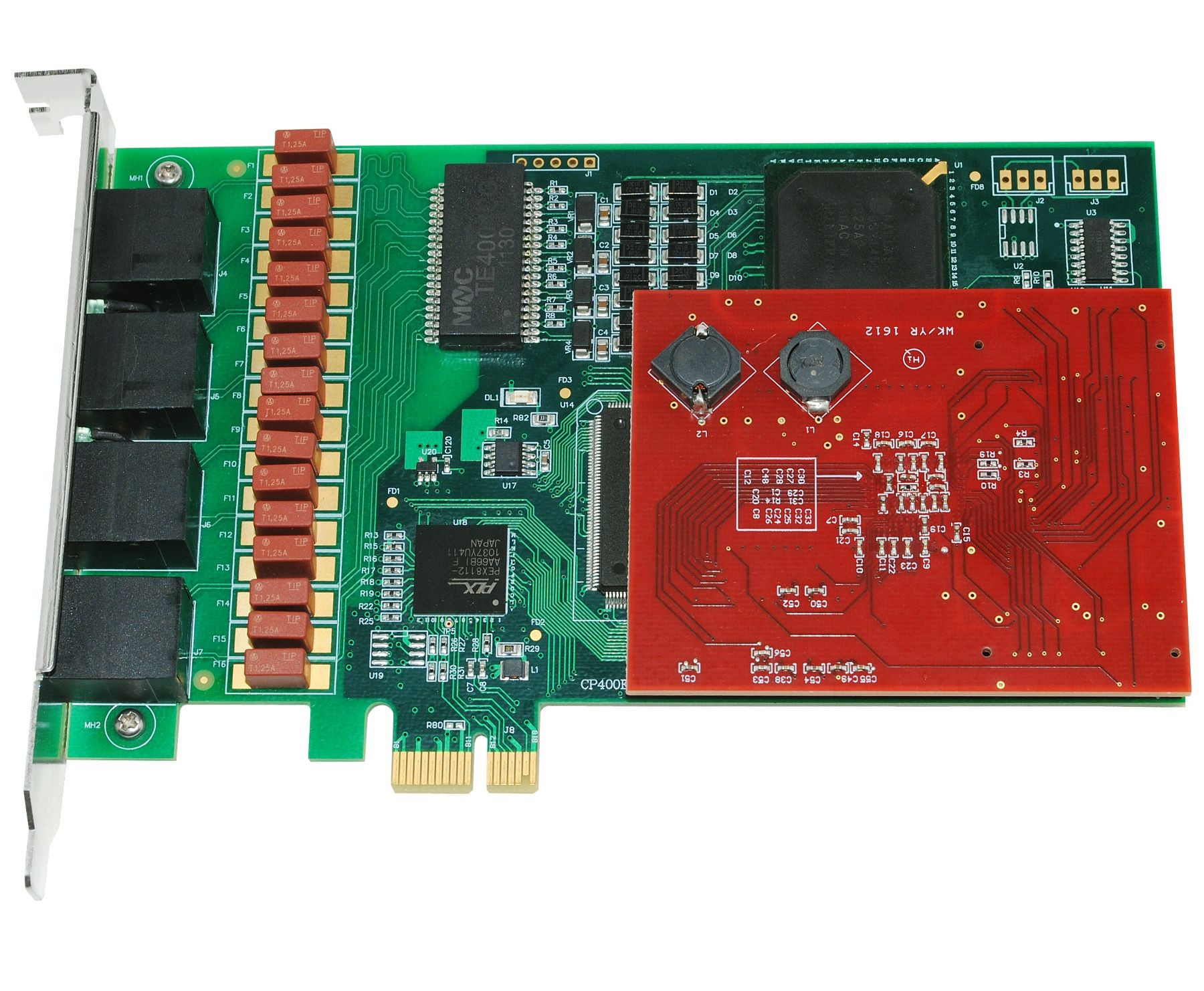

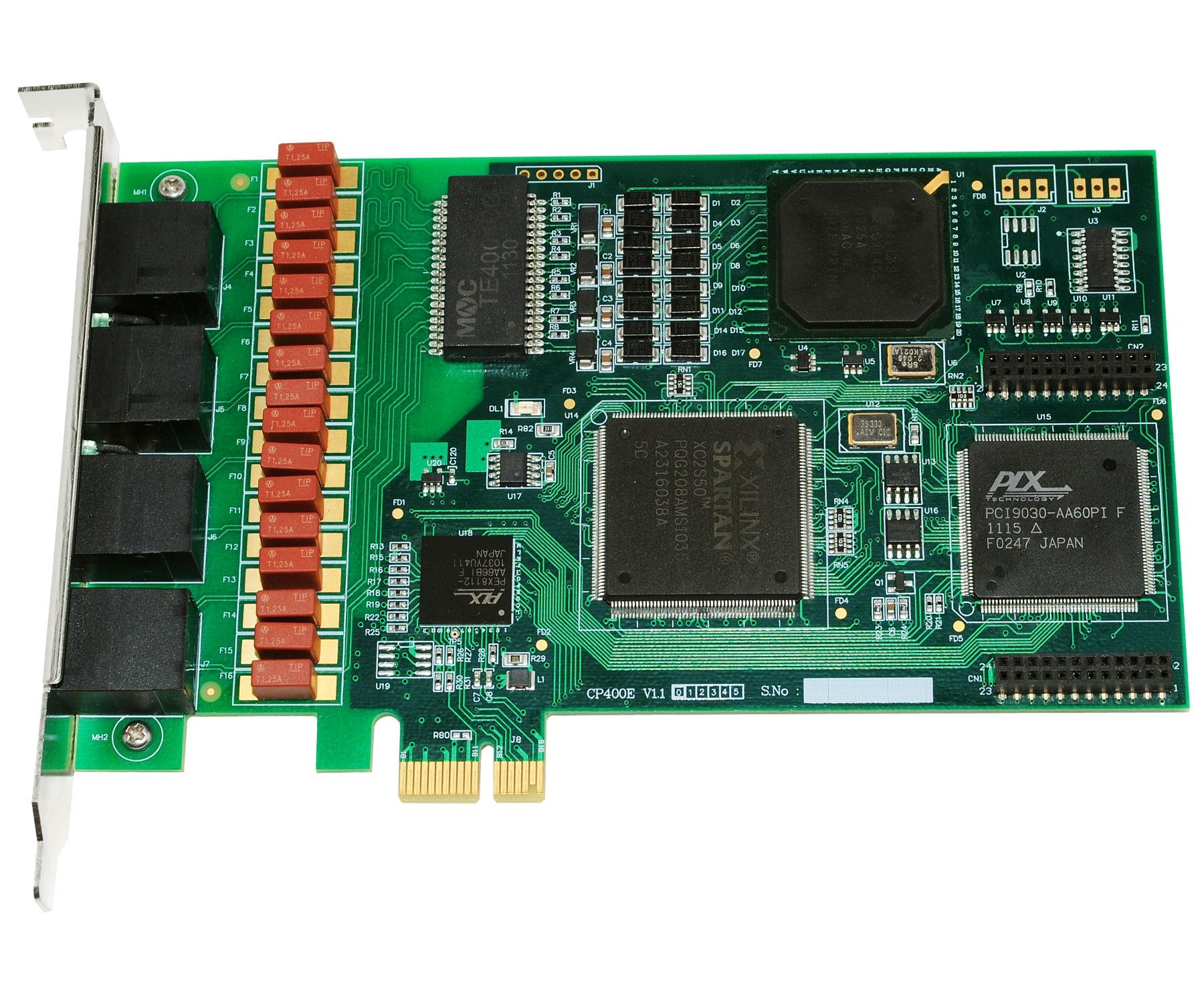

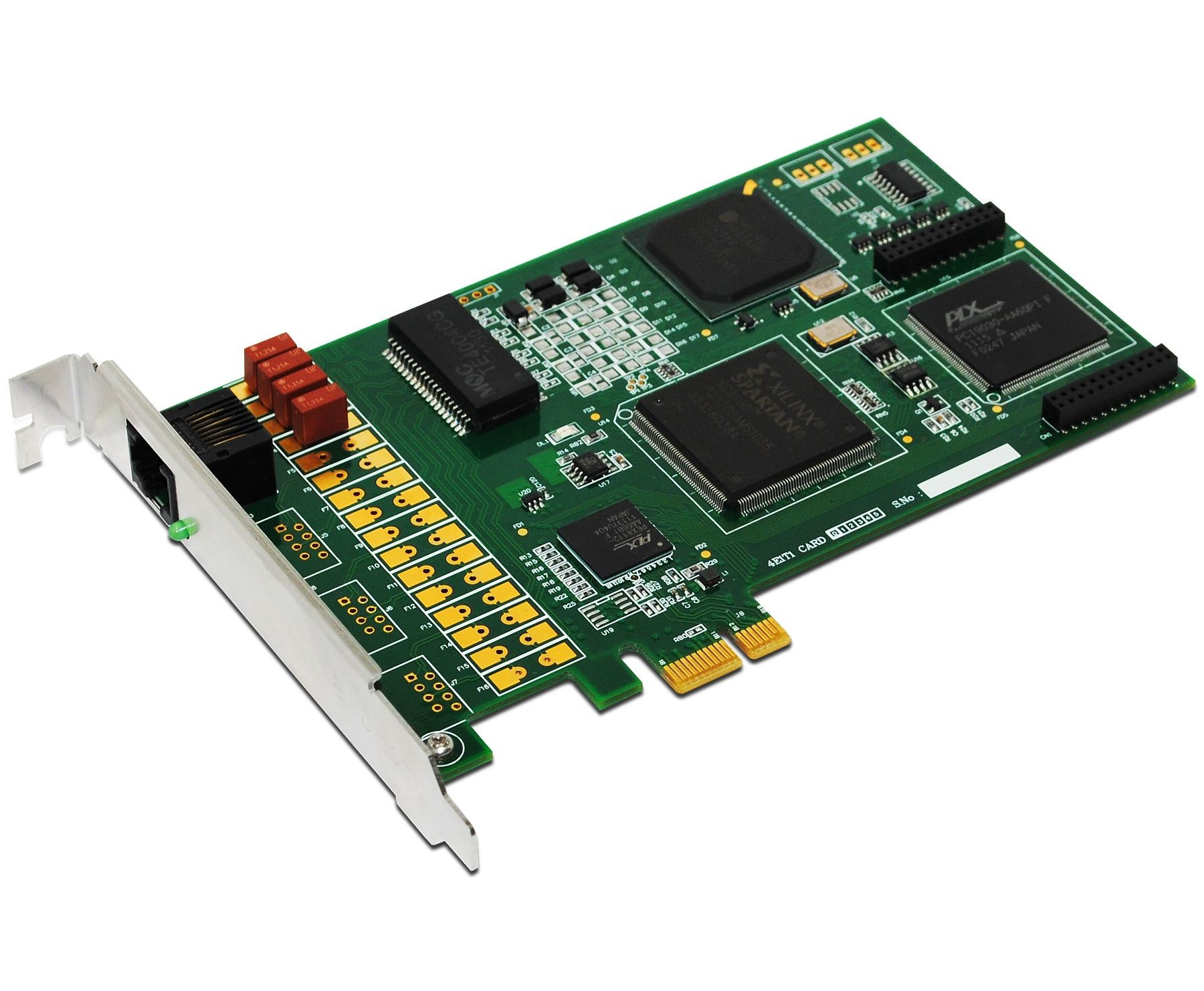

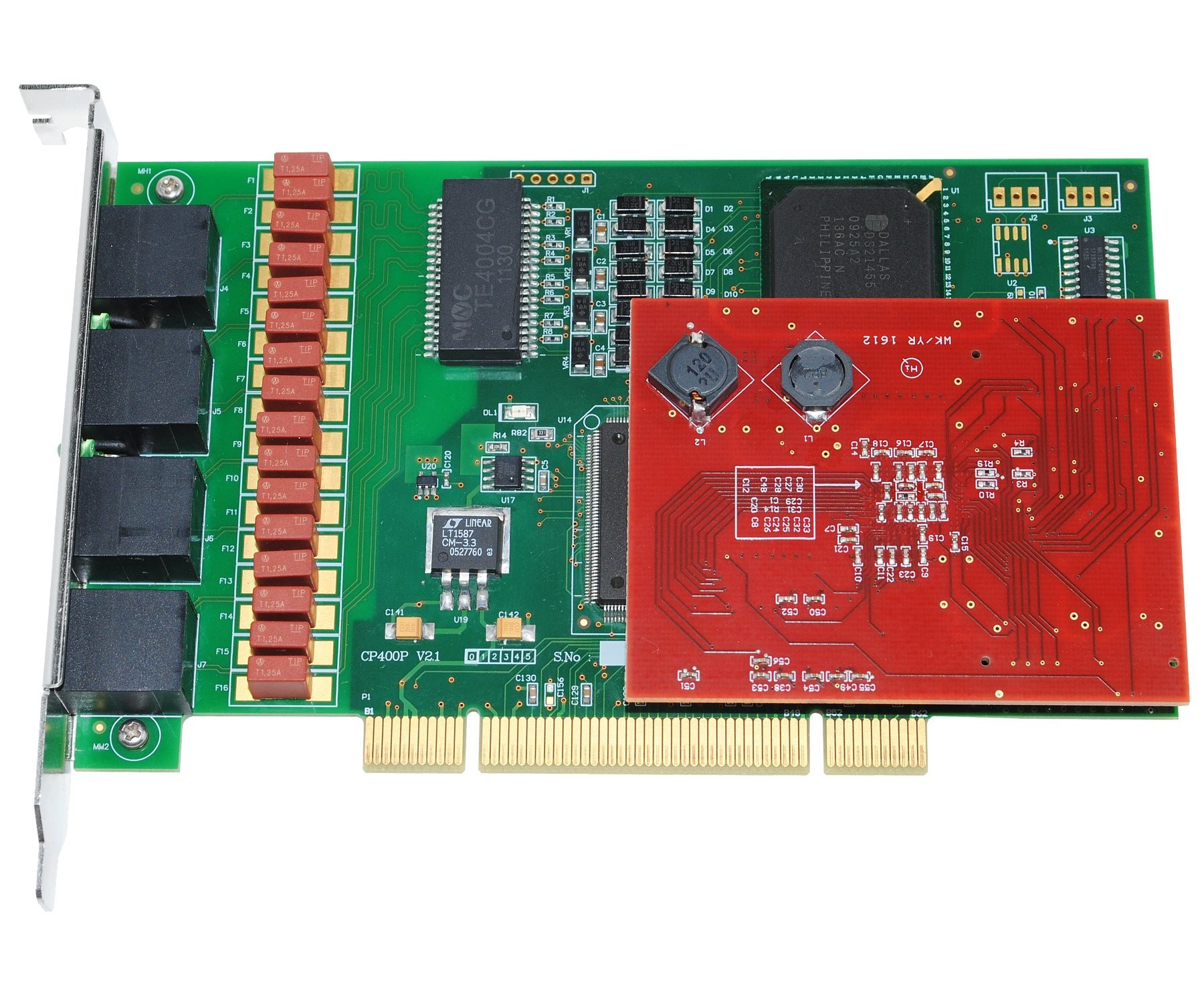

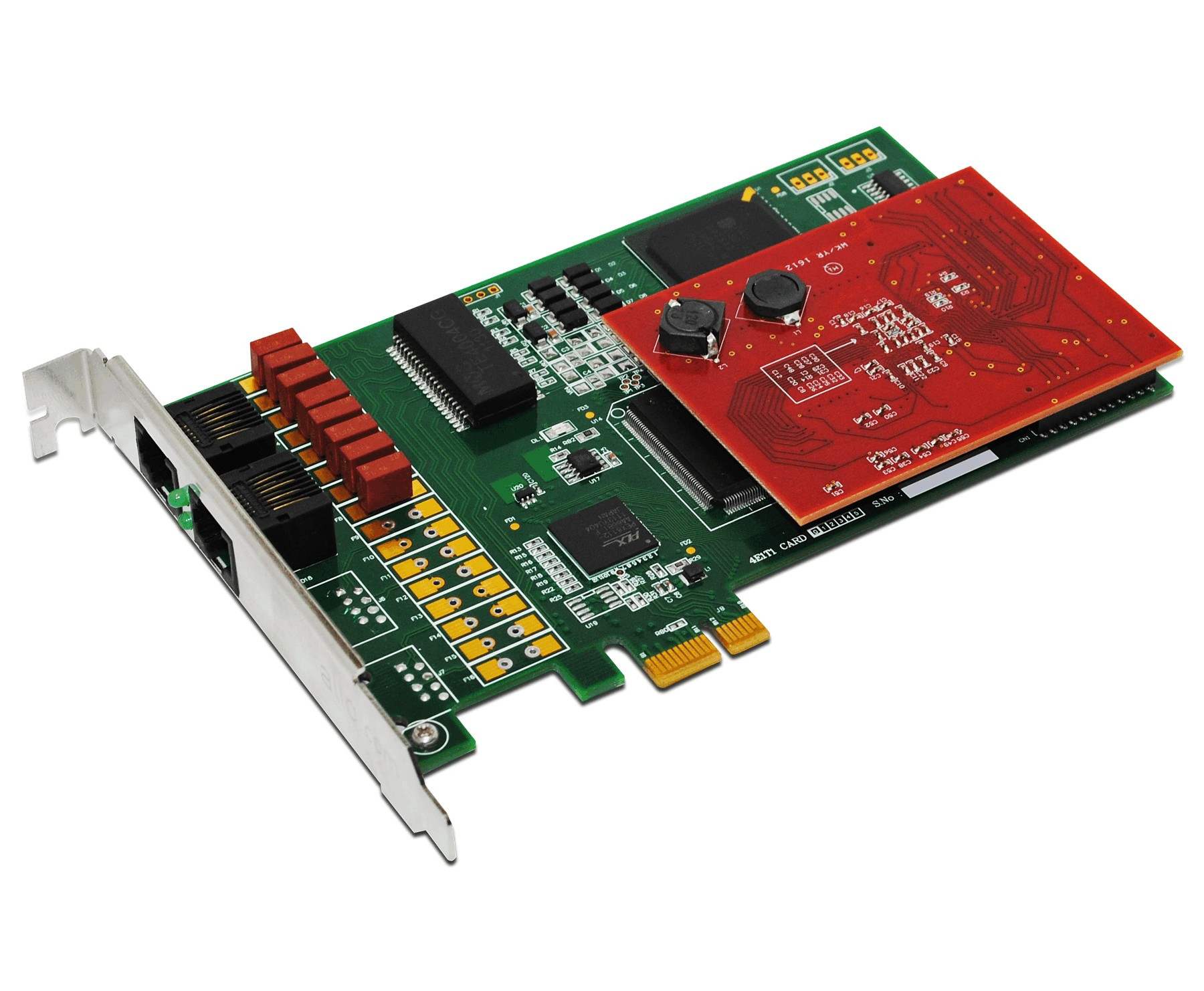

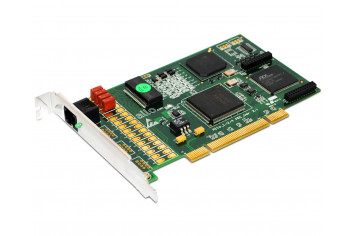

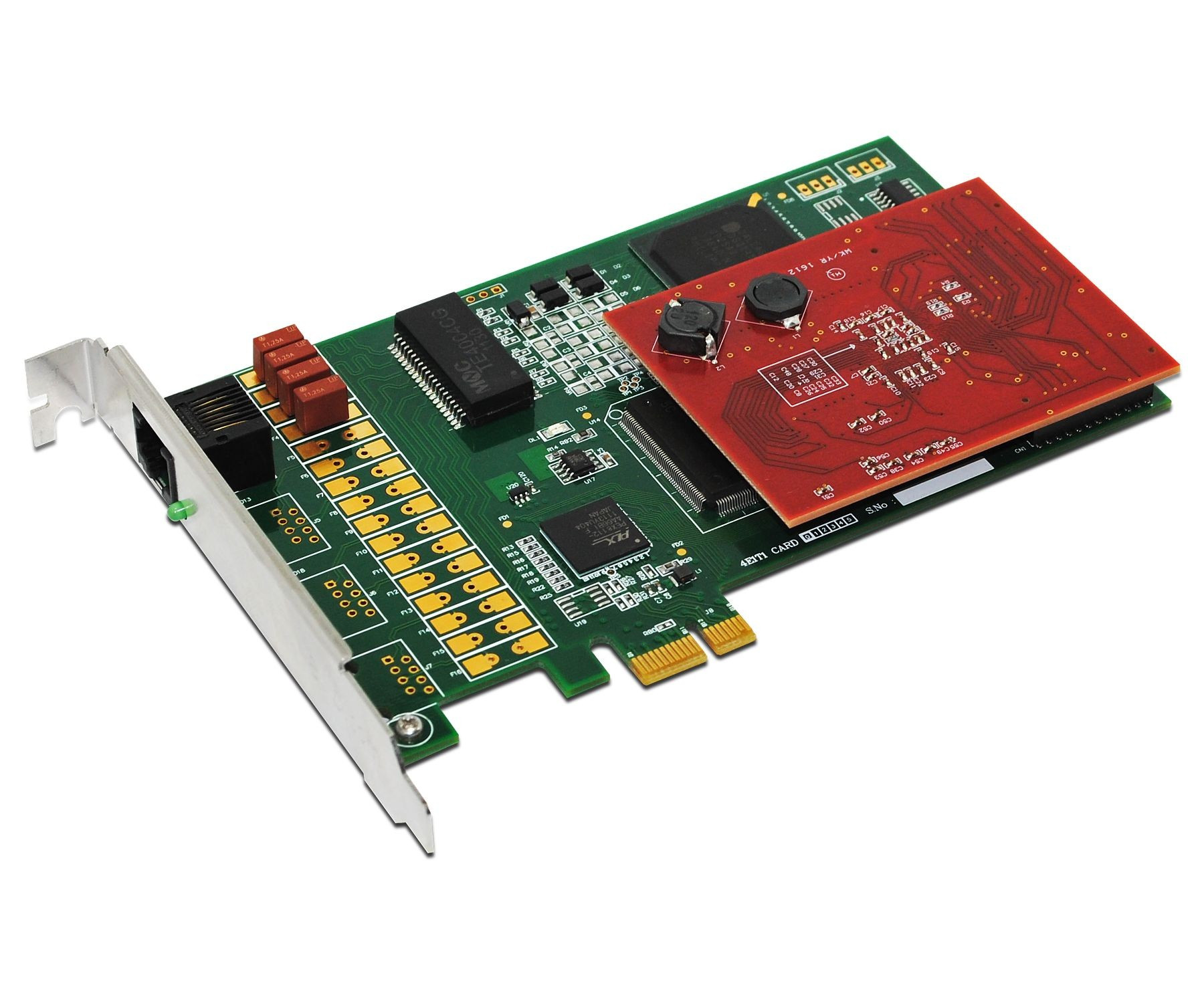

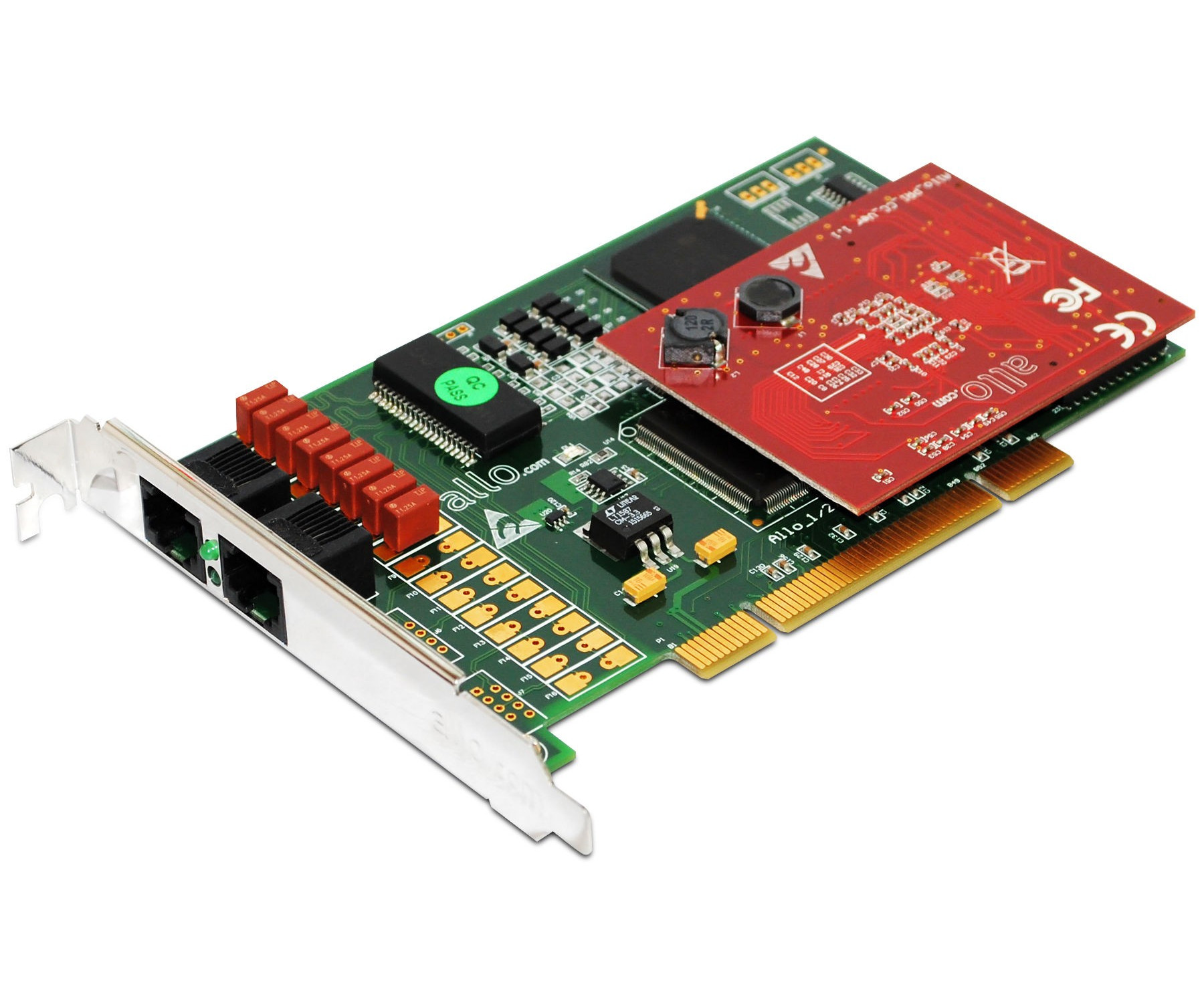

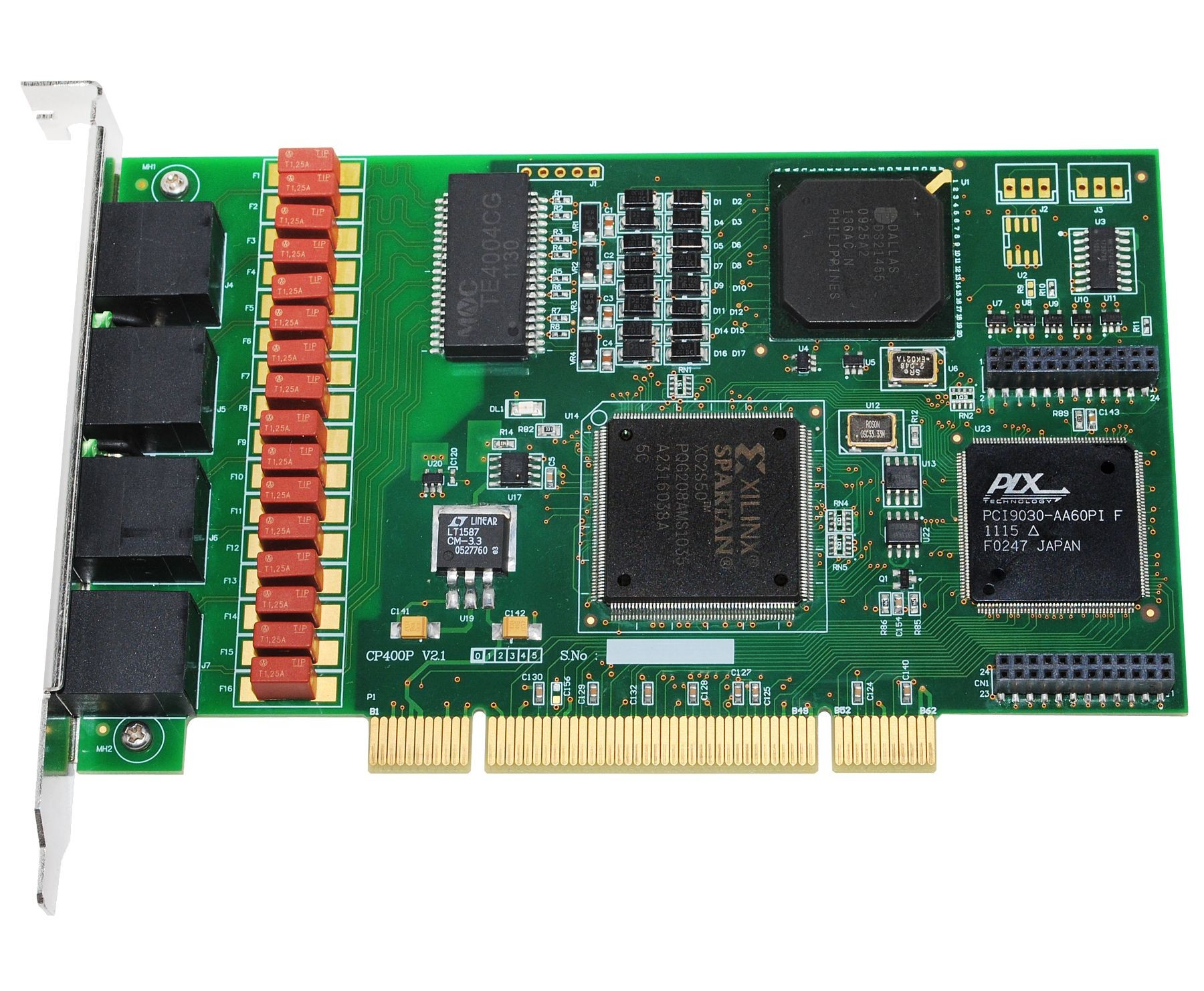

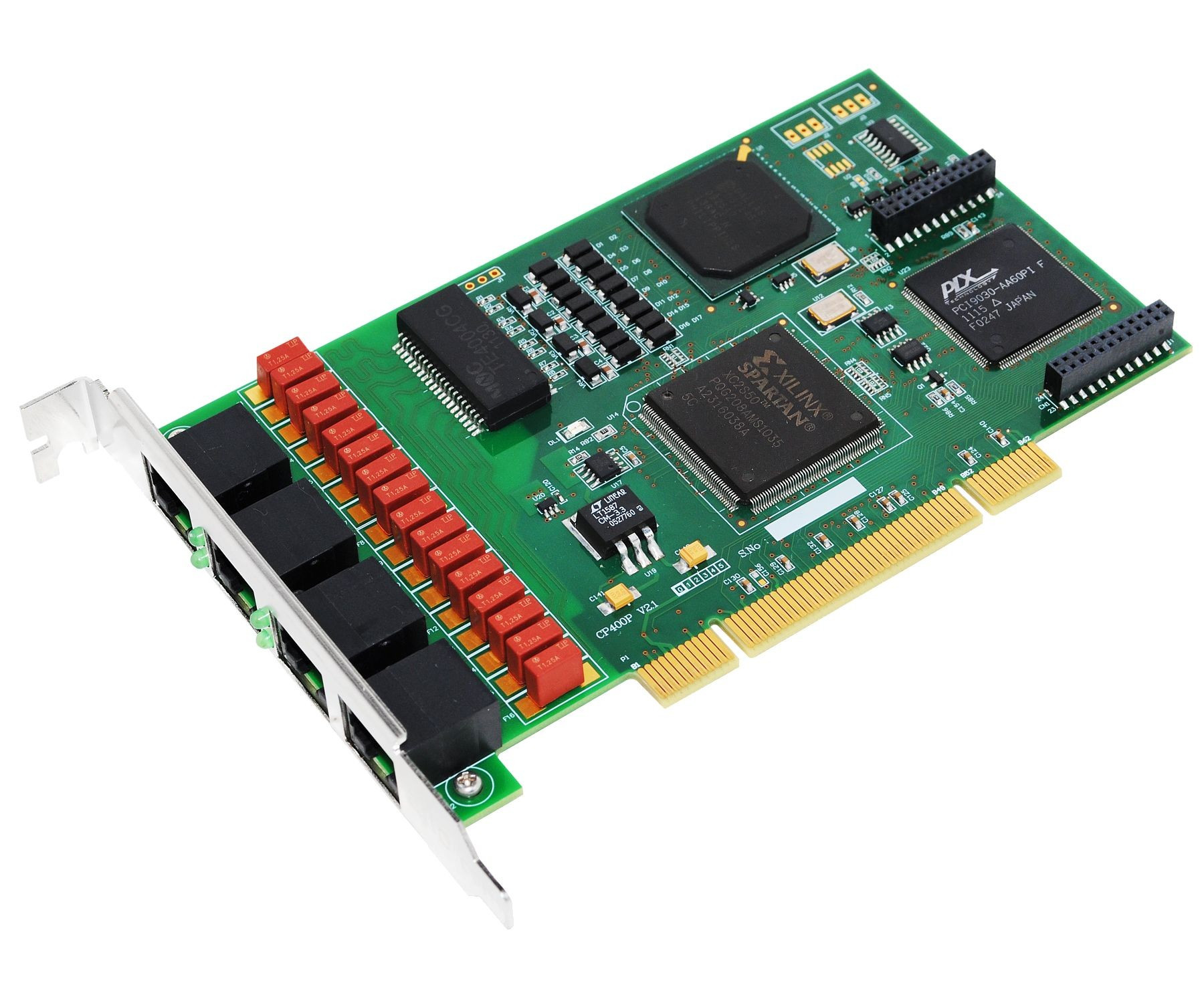

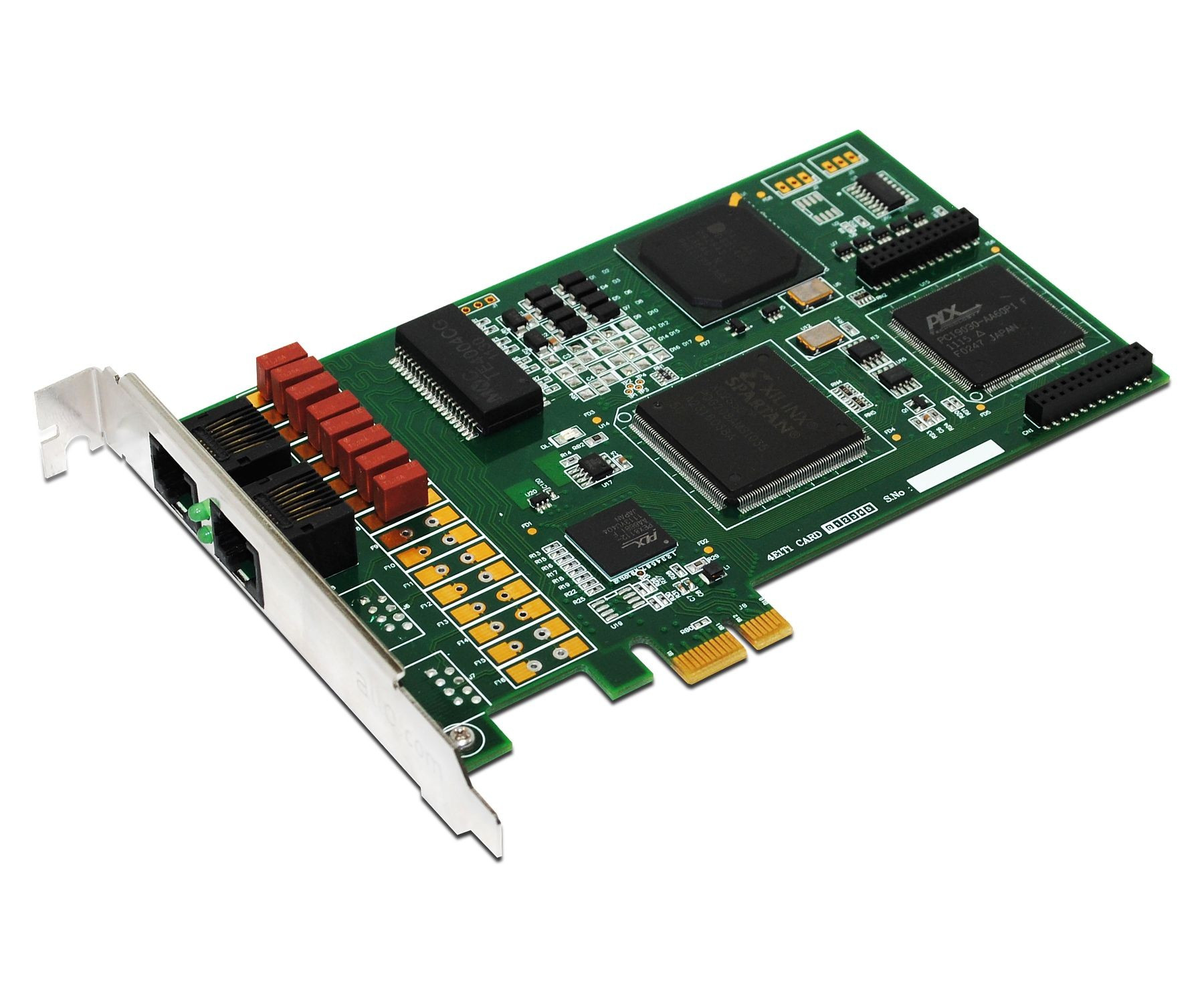

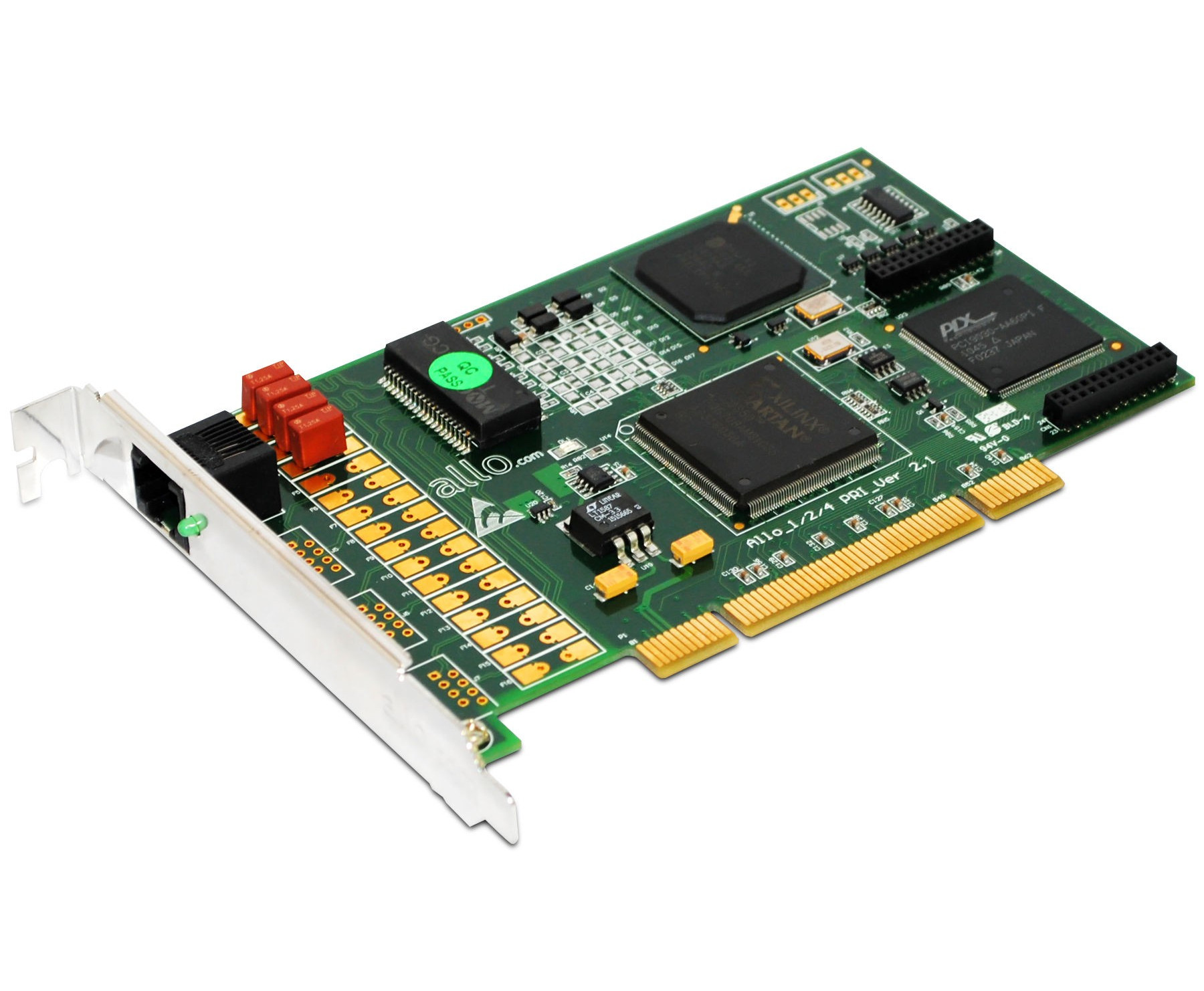

1st Gen E1/T1 PRI CARD (PCI/PCIe)

Price: Price:
$250.00

Warranty
5 Years

5 Years

*Please Note: This card does not have onboard DMA. We recommend to install no more than 1 card per system. If you require to install more cards in the same system, visit our 2nd Gen Card here.

This card supports SS7 signaling and uses a DAHDI patch which is already included in our proprietary driver.

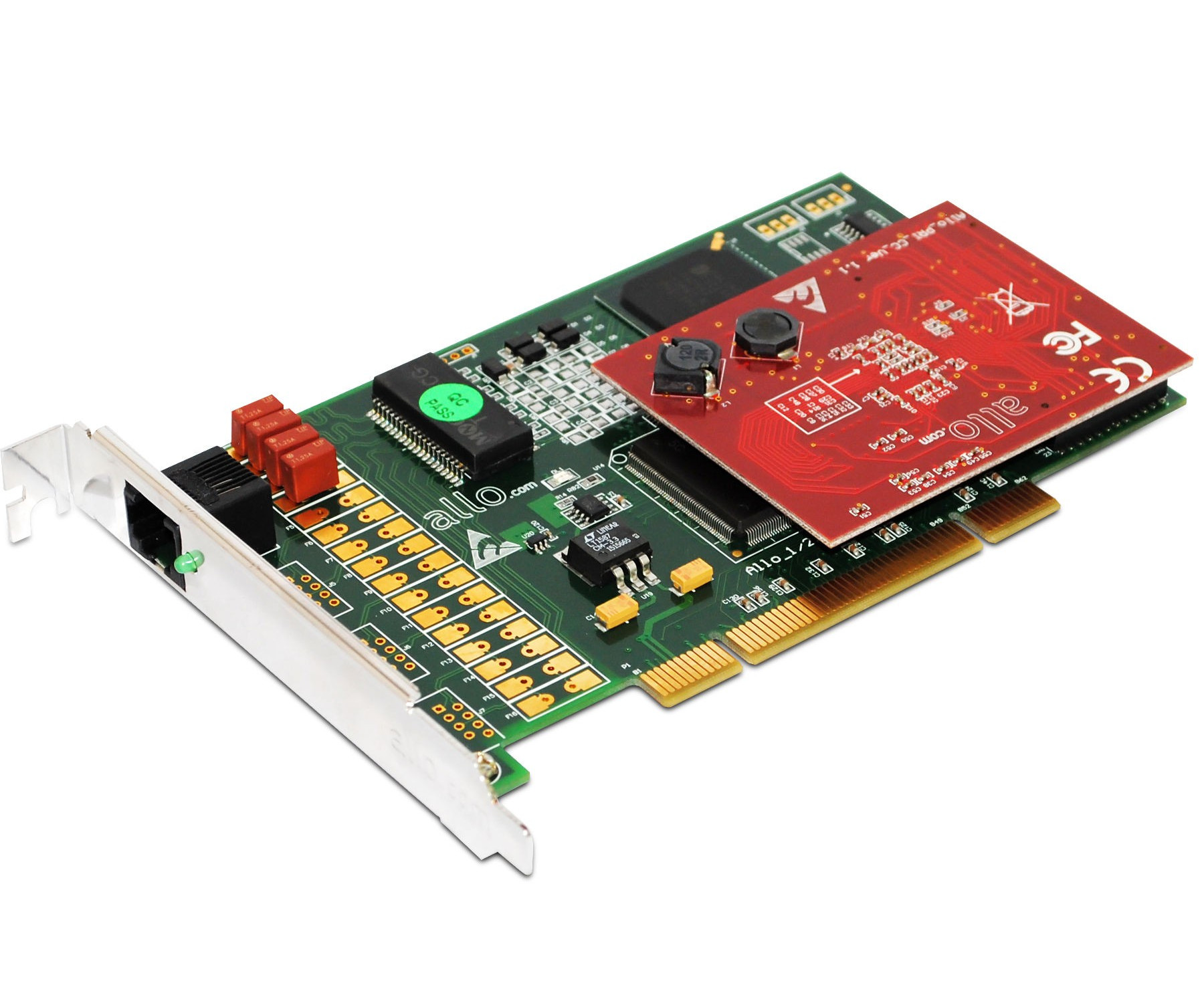

We use the exact same chipsets as the other more expensive brands but since this is the 1st gen board design, it is VERY affordable. A 128 ms hardware based Line Echo Cancellation module can be added to reach the highest standard in voice quality on the market. Build your own open source PBX system while keeping cost at a minimum. Chose from 1-2 or 4 ports with a capacity of 30 channels per port and full duplex data throughput.

Certified By
Elastix Certified Askozia Certified
Also Works With
Works with Asterisk Works with FreeSwitch Works with YATE Works with TrixBox Works with FreePBX
Certifications
FCC Certified CE Certified

Key Features

  • Our PRI cards support SS7 signaling
  • 128 ms Hardware based Line Echo Cancellation on OctassicTM DSP
  • ElastixTM Certified and works with AsteriskTM, FreeswitchTM, YATETM, AskoziaTM, TrixboxTM and more
  • 1, 2 and 4 ISDN-32 PRI T1/E1 ports with 30 B channels and 1 D channel per span
  • EuroISDN (PRI or PRA) - Q.931/Q.921
  • Fully PCI 2.2/PCIe compliant
  • RJ 48 connector
  • Suitable for 3.3 volts and 5.0 volts 32 bit PCI 2.2 slots

Note

  • Use ALLO Dahdi versions (patch included)
  • We recommend to use one card per system. If you require more, see our 2nd Gen Card here

Target Applications

  • Voice-over Internet Protocol (VoIP) Services
  • Complex IVR Trees
  • "Meet-Me" Bridge Conferencing
  • Calling Card Platforms
  • VoIP Gateways
  • Legacy PBX/IVR Services
  • Voice/Data Router (replace expensive routers)
  • Call Center

Tech Specs

  • 1, 2 and 4 ISDN-32 PRI T1/E1 ports with 30 B channels and 1 D channel per span
  • 128 ms Hardware based Line Echo Cancellation on Octassic Tm DSP
  • EuroISDN (PRI ) - Q.931/Q.921
  • Fully PCI 2.2/PCIe compliant
  • RJ 48 connector
  • Suitable for 3.3 volts and 5.0 volts 32 bit PCI 2.2 slots
  • Line decoding: HDB3, AMI, B8ZS
  • Framing: CRC-4, Non CRC4, ESF, SF, D4

Physical & Environmental

Operating Temperature 0°C to 50°C
Storage Temperature -40°C to 125°C
Dimensions 15.4cm x 8.7cm x 1.8cm
Weight 102g

Documents & User Guides

Data Sheet - Download Now

User Manual - Download Now

Step by Step Guide (Zaptel) - Download Now

Step by Step Guide (Dahdi) - Download Now

Drivers

Zaptel 1.2 - Download Now

Zaptel 1.4 - Download Now



Allo Dahdi Drivers for Asterisk

Asterisk Version Allo Dahdi Driver Download E1 drivers (32 & 64bit) Download T1 drivers (32 & 64bit)
Asterisk 1.4, 1.6, 1.8, 10 & 11 Dahdi 2.4.1.2 Download
Dahdi 2.5.1 Download
Dahdi 2.6.1 Download
Dahdi 2.6.2 Download
Dahdi 2.7.0 Download
Dahdi 2.7.0.1 Download
Dahdi 2.8.0 Download
Dahdi 2.9.0 Download
Dahdi 2.9.2 Download
Dahdi 2.10.0 Download


   NOTE: Patches already included in Allo Dahdi Drivers
   * Recomended Kernal: 2.6.32 and above


LEC Module Driver - Download Now

(Last Update: Sept 26, 2014)
