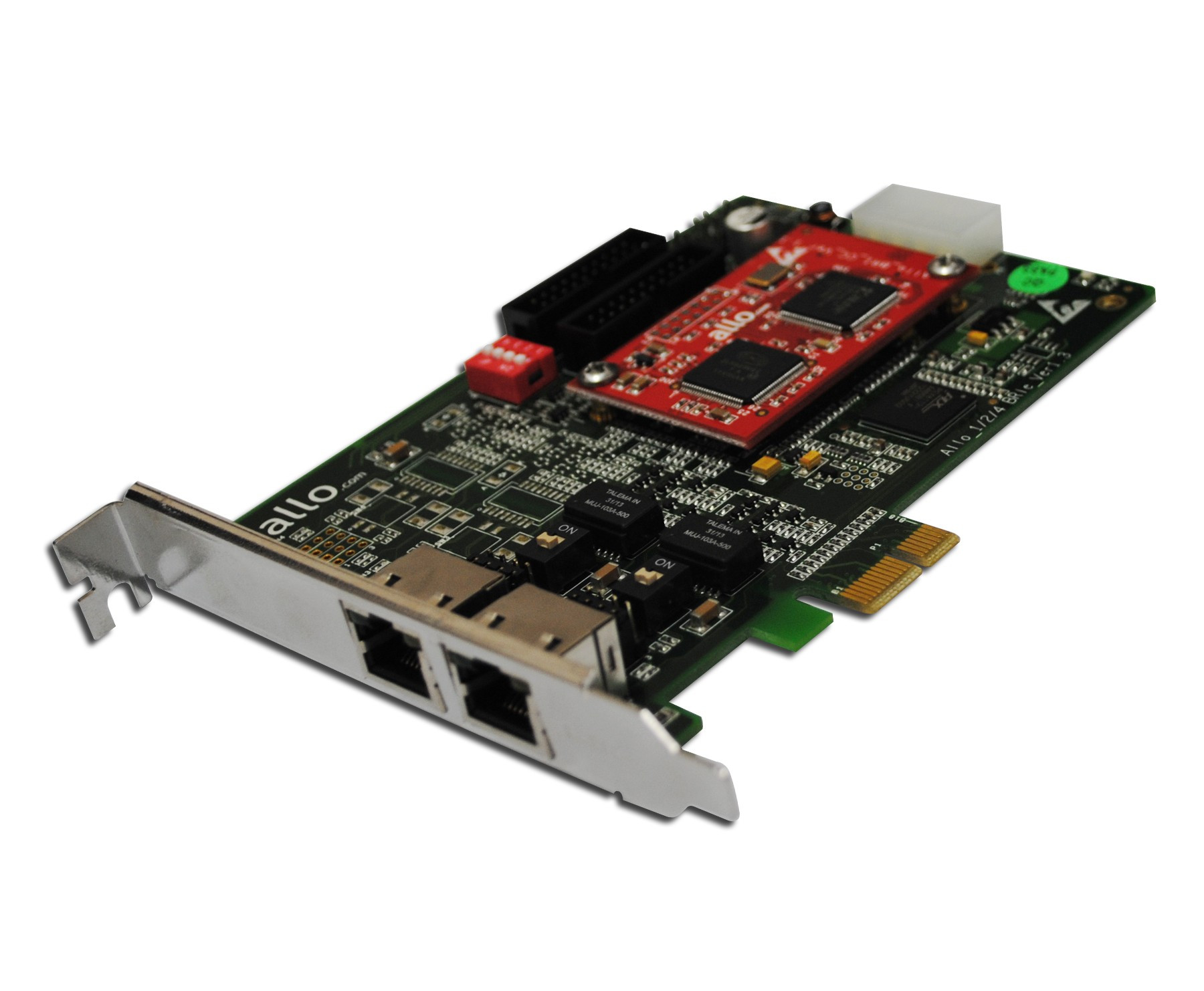

BRI Card

Price: Price:
$189.00

Warranty
5 Years

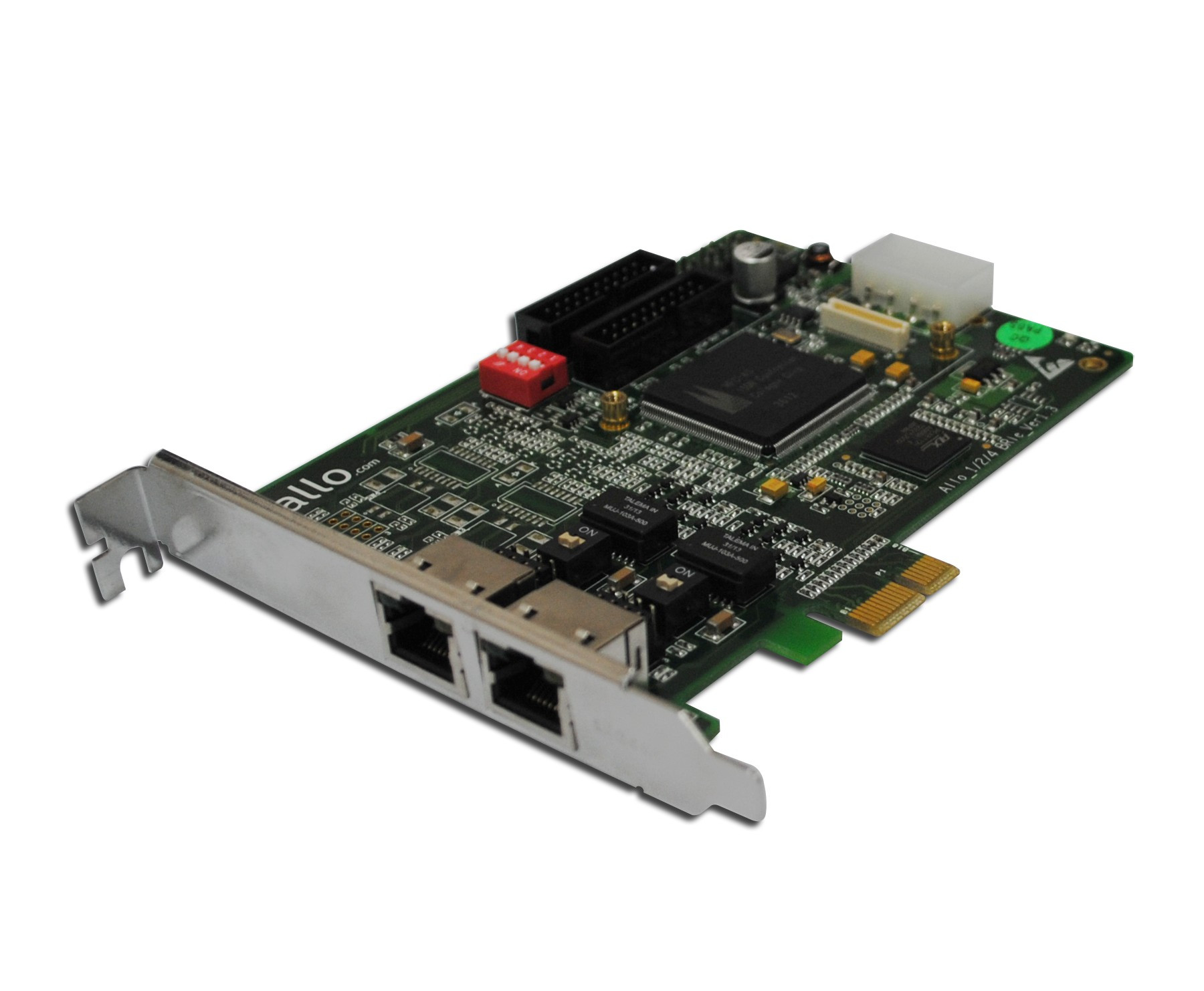

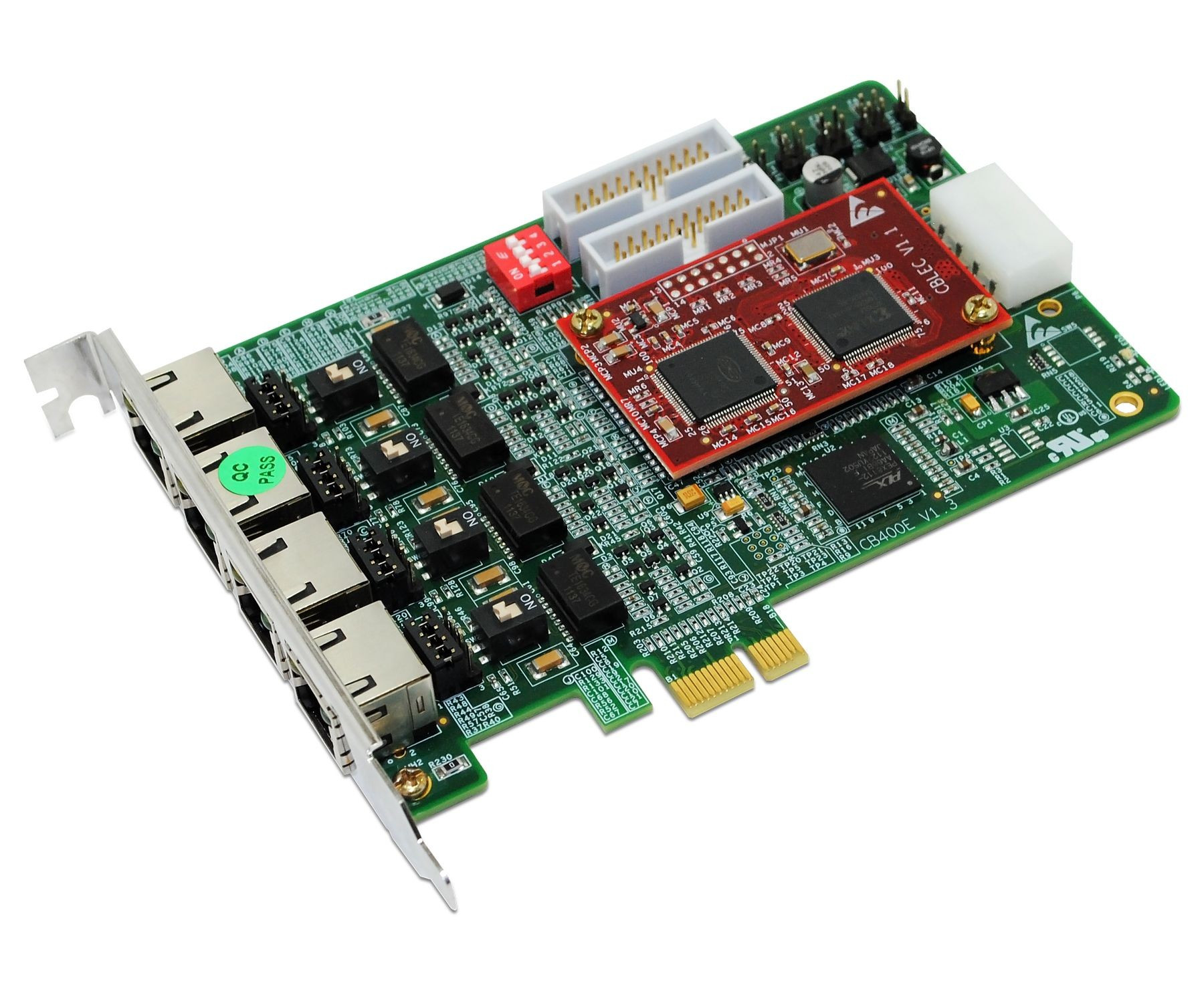

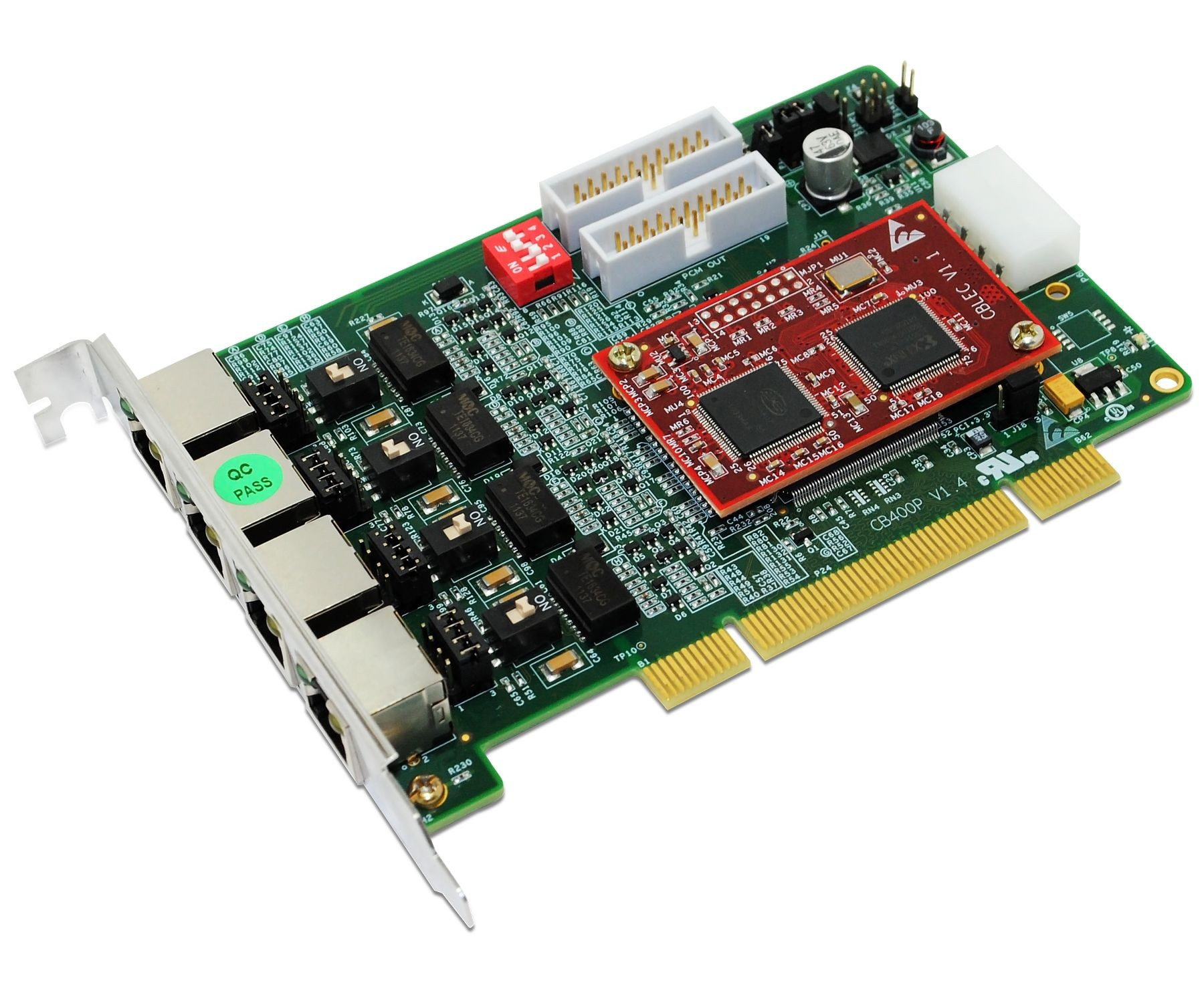

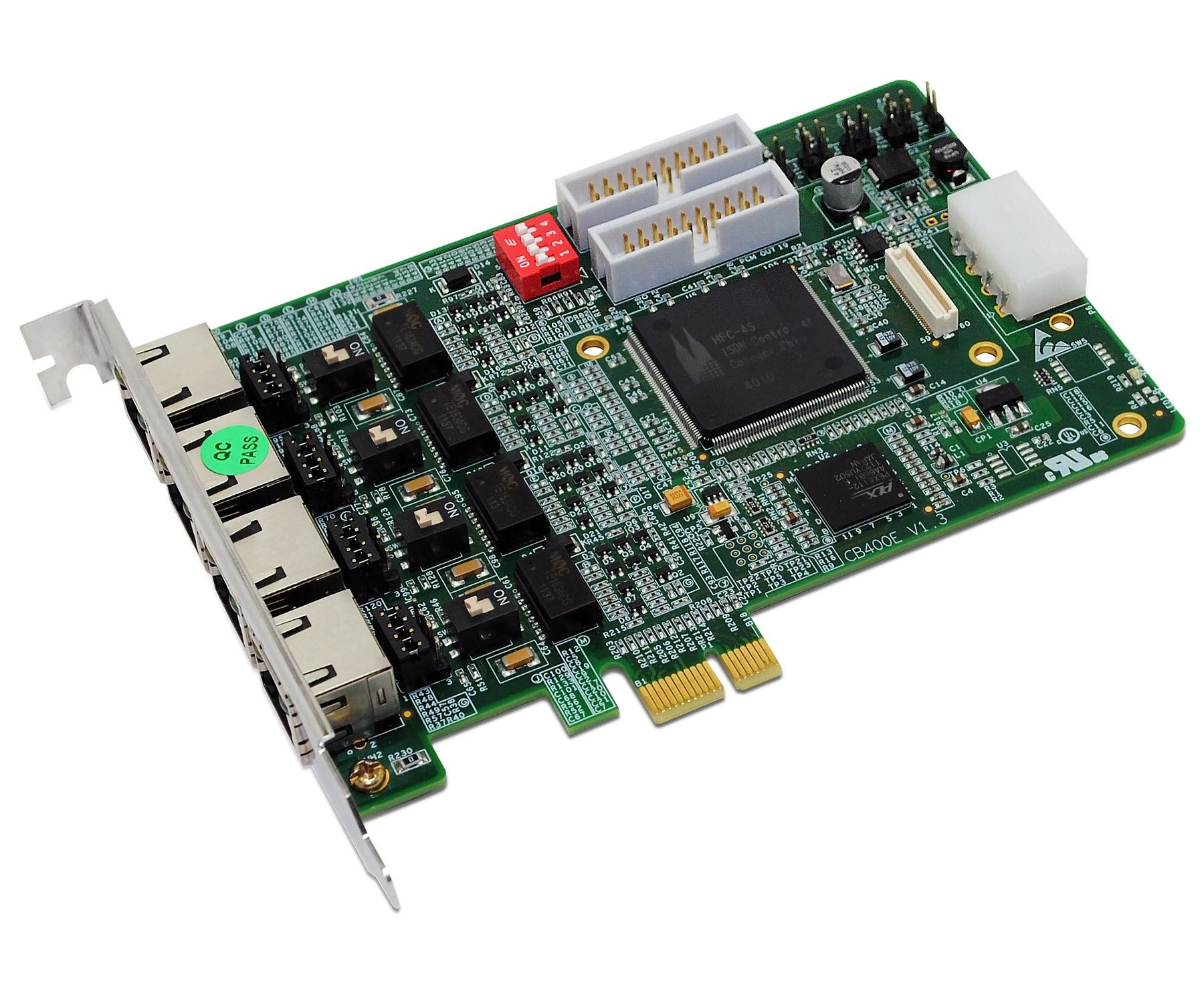

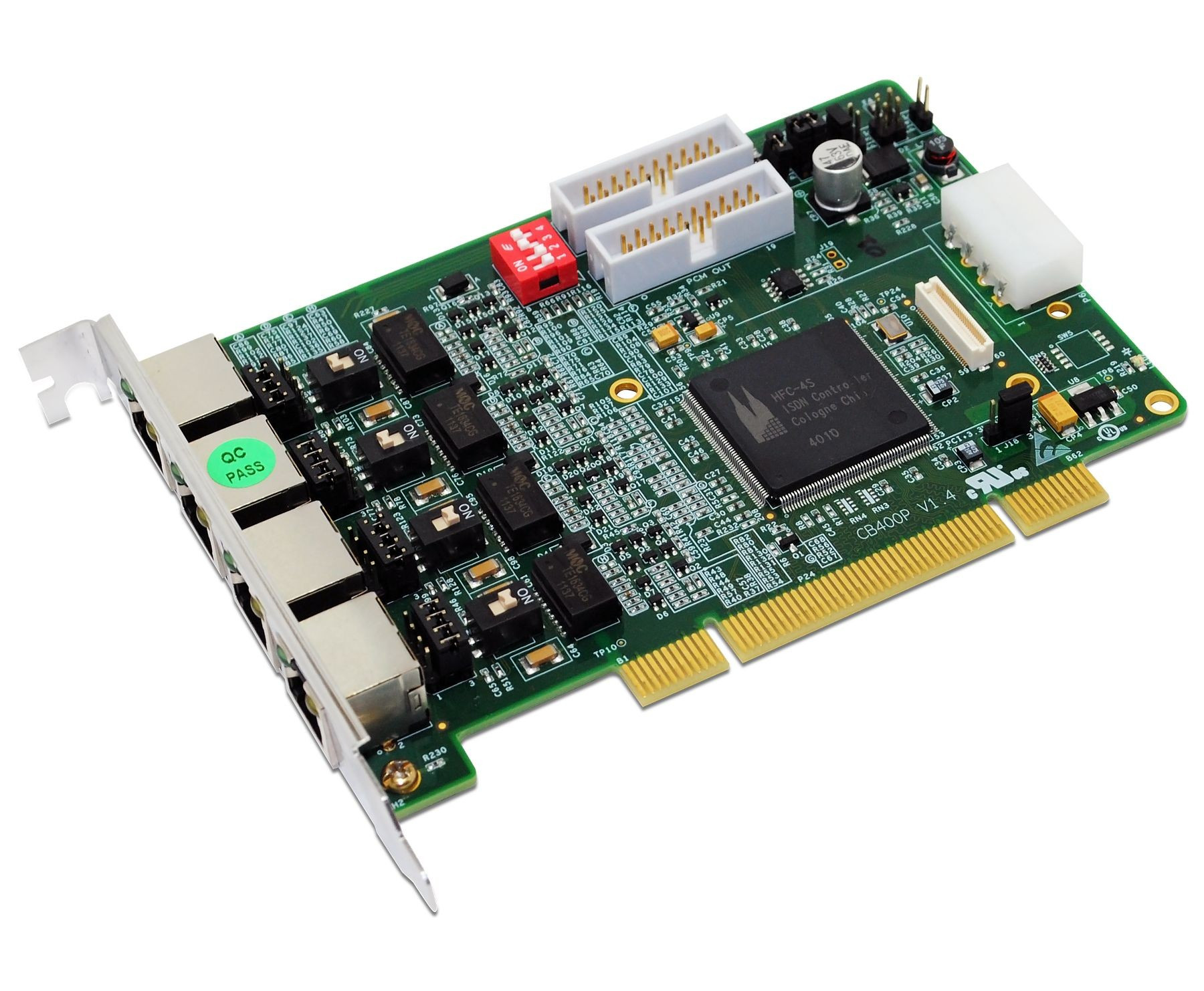

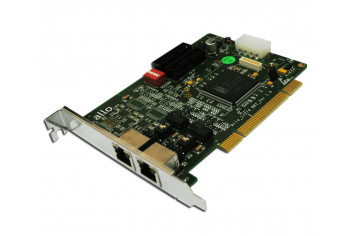

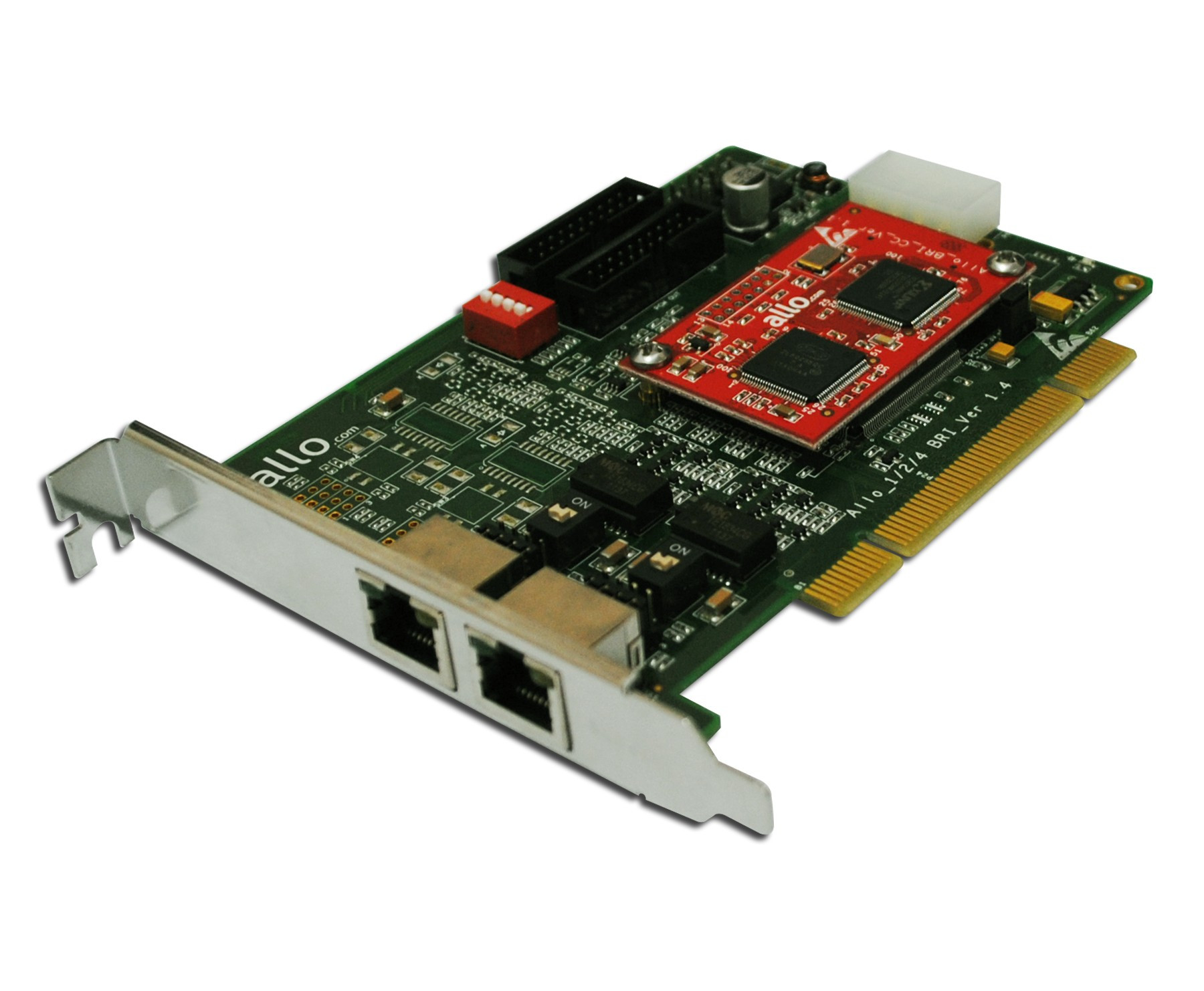

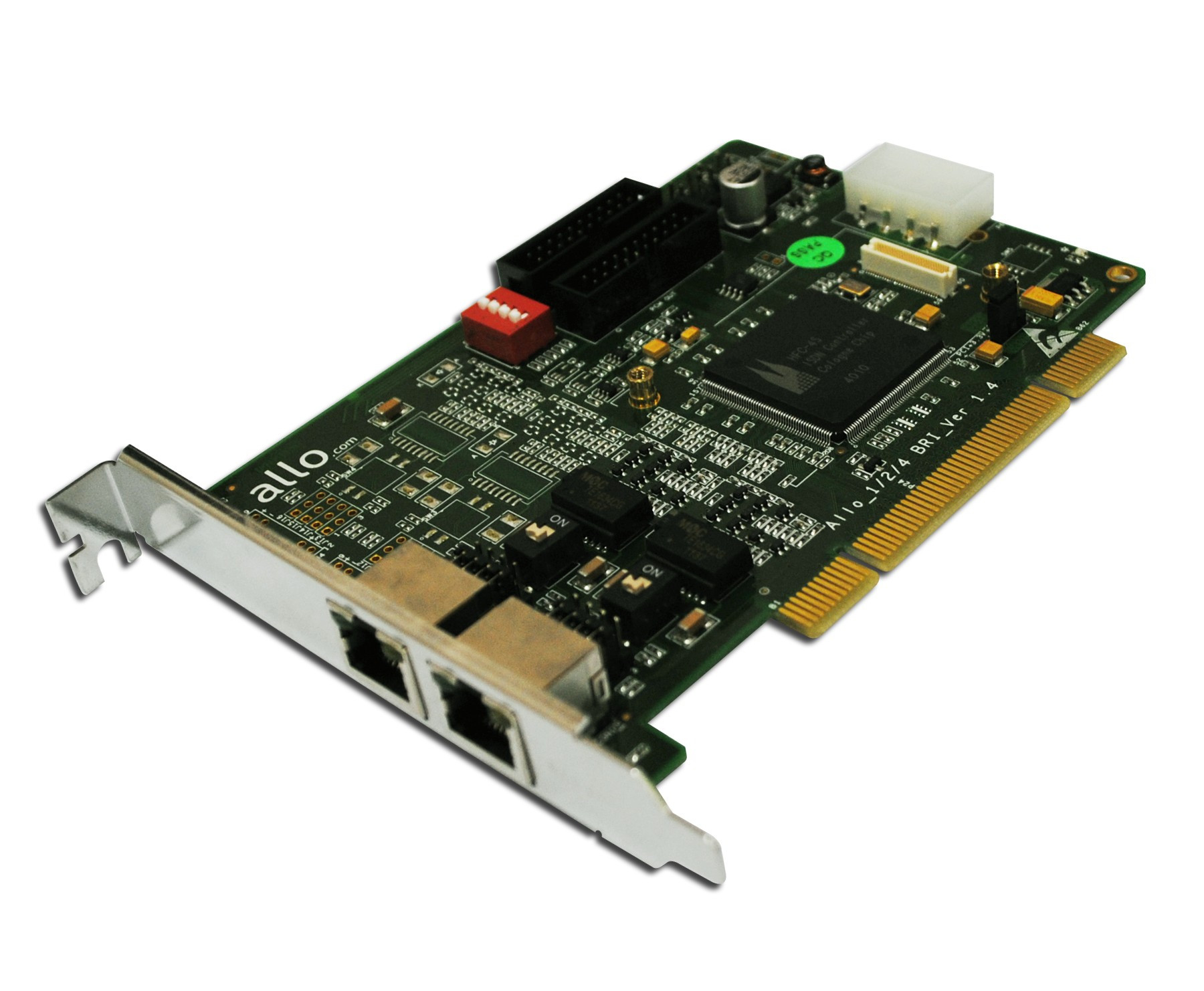

Certified by ElastixTM, our BRI card uses the same CologneTM chipset as all the other manufacturers, yet costs less.

It supports the EURO and US flavor ISDN (2B+D) circuits. Easy jumper settings allows for either ISDN lines or phones to be connected to the cards 2 or 4 ports.

Certified By
Elastix Certified Askozia Certified
Also Works With
Works with Asterisk Works with FreeSwitch Works with YATE Works with TrixBox Works with FreePBX
Certifications
FCC Certified CE Certified

Key Features

  • 64 ms tail line echo cancellation powered by Octassic
  • 2 or 4 BRI ports interface
  • Up to 8 simultaneous voice calls over 4 ISDN BRI lines
  • Independently configure each port for TE or NT
  • Conference bridge
  • Onboard power feeding
  • 4 independent RJ45 interfaces
  • Point-to-point (TE/NT) and point-to-multipoint (TE/NT) Euro ISDN protocol stack
  • Fully PCI 2.2/PCIe compliant
  • Compatible with 5V and 3.3V PCI busses automatically detectable
  • DTMF detection on all B-channels

Target Applications

  • ISDN BRI PBX (embedded)
  • VoIP BRI Gateways
  • ISDN LAN Routers for BRI
  • ISDN Least Cost Routers for BRI
  • PBX to PBX trunking

Tech Specs

  • Up to 4 ports of BRI are supported. Up to 8 Simultaneous Voice Calls over 4 ISDN BRI Lines
  • Independently configure Each port in to TE/NT mode
  • Point-to-Multipoint (TE/NT) Euro ISDN protocol stack
  • Fully PCI 2.2/PCIe compliant
  • Autosense compatibility with 5 V and 3.3 V PCI busses
  • PCI express X1 compliant
  • Power: 1.30W Minimum, 4.95W Maximum at 3.3 V

Physical & Environmental

Operating Temperature 0°C to 50°C
Storage Temperature -40°C to 125°C
Dimensions 15.4cm x 8.7cm x 1.8cm
Weight 102g

Documents & User Guides

Data Sheet - Download Now

User Manual - Download Now

Step by Step Installation Guide with Asterisk - Download Now

Step by Step Installation Guide with Trixbox - Download Now

Step by Step Installation Guide with Elastix - Download Now



mISDN Drivers for Asterisk 1.x

mISDN Driver - Download Now

mISDN User Driver - Download Now

NOTE: mISDN drivers will only work on non-LEC cards

Allo Dahdi Driivers for Asterisk

Asterisk Versions Allo Dahdi Driver Download (32 & 64 bit)
Asterisk 1.4, 1.6, 1.8, 10 & 11 Dahdi Version 2.4.1.2 Download
Dahdi Version 2.5.0.1 Download
Dahdi Version 2.6.0 Download
Dahdi version 2.6.1 Download
Dahdi Version 2.6.2 Download
Dahdi Version 2.7.0 Download
Dahdi Version 2.7.0.1 Download
Dahdi Version 2.8.0 Download
Dahdi Version 2.9.0 Download


NOTE: Patches already included in Allo Dahdi Drivers
