NanoPBX |
| (PSTN & VOIP) |
| |

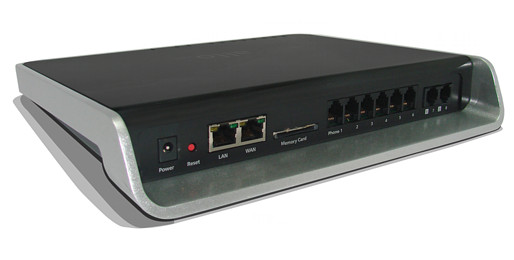

Allo.com’s NanoPBX is a
full-featured PBX System with
User Friendly GUI
For sales enquiries,
please Contact Us for more details.
|
| |

Price includes a one-on-one 45 minutes basic setup session
if you require additional help getting up and running!
|
| |
|
| |
The NanoPBX is a compact, all-in-one telephone system that puts the rich features of PBX systems into the reach of small businesses. Its built-in voicemail, multi-level auto attendants, remote extensions and sophisticated call handling features help businesses look big, reduce communications costs and stay connected everywhere. The NanoPBX system set up and changes are a snap with the user-friendly GUI. The system is designed for easy growth and includes VoIP capabilities.
Please note that we cannot guarantee that the NanoPBX will work if it is not directly connected to a straight PSTN line (not connected through a proprietary system). If not using a SIP Voip Provider, the unit has to be connected directly to a PSTN provider (like Bell). Many people think that because the wire comes from the wall that it is automatically PSTN, but sometimes that wire is from digital phone provider, or has no line at all. So it must be connected to a real working PSTN line that is active. |
Main Features:
- Call Forwarding
- Call Transfer
- Call Waiting
- Call Parking
- 3 way calling,
- Hunt group
|
| Capacity |
- 2 FXO, 4 FXS, 2 FXO/FXS programmable
- 50 IP extensions
- Up to 6 Analog extensions
- SIP server
- 1 Gig SD card
|
| Channels |
- 8 TDM concurrent calls
- 20 IP concurrent calls
- TDM + IP scenarios: 8 TDM + 3 IP, 4 TDM + 8 IP, 0 TDM + 20 IP
|
| Auto-Attendant Features: |
- Configurable IVR
- Queue creation
- Music on hold
- Scheduling for IVR
|
| Messaging: |
- Up to 100 hours
- Each extension has access to Voice Mail
- Remote Voice Mail access
|
| Reporting: |
- CDR ( Caller ID, Time/Date, Incoming, Outgoing)
- Remote CDR access
|
| Routing, Nat, Firewall: |
|
|
| |
| Supported Codec: |
| G.729AB, G.711 A-law / µ-law, G.723 |
| DTMF: |
| In-band, RFC 2833, SIP info |
| Voice Quality Protection |
| Echo cancellation: G.168, VAD with silence suppression, CNG, Packet loss concealment, Adaptive jitter buffer, Polarity Control, Signal discriminator, Attenuation/Gain adjustment |
| System: |
| HTML browser, online upgrades, configuration back-up & restore, NAT, NTP, Pre-set progress tones for multiple regions, personal call handling rules |
| Hardware: |
| Reset Button, One Secure digital (SD) slot |
| System Indicators: |
| Power status, Ethernet status, FXS status |
| Network Interfaces: |
| one 10/100Mbps WAN port, one 10/100Mbps LAN port |
| Power Supply: |
| 100V – 250V AC / 47 Hz – 63 Hz Input |
| 12V DC / 2.5 A Output |
| Environment & Mechanical |
| Operating Temperature |
10°C to 40°C (50°F to 104°F) |
| Operating humidity |
10% to 90%, Non-condensing |
| Storage temperature |
0°C to 50°C (32°F to 122°F) |
| Storage humidity |
5% to 95%, Non-condensing |
| Unit Weight |
0.55 kg |
| Dimensions |
175mm (W) x 253mm (L) x 34 mm(H) (6.88” x 9.96” x 1.33”) |
|
|
|
|
|
