Analog Telephone Adapter
MicroPC - PBX System
|
|
| |
| |

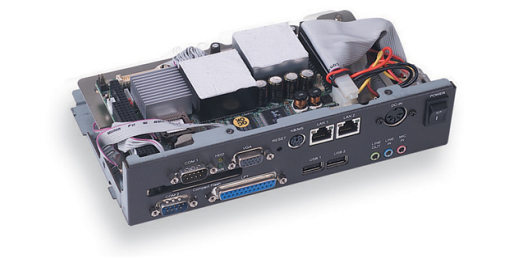

MicroPC
|
| Connect up to 30 Analog / IP / Soft Phones |
| |
Allo.com’s MicroPC is a full-featured PC and PBX (Private Branch Exchange) System
|
|
Use it as a stand-alone micro pc, or as a feature-packed PBX system with any VOIP provider.
|
| |
 |
| |
|
| |
|
Our MicroPBX is an IP-based micro pc that gives small businesses a competitive, flexible and highly integrated VOIP solution. It lets the business user connect to the Allo.com network and also acts as a PBX for intra-calls. The development includes optimizing Asterisk (Open Source PBX software) and enabling a bundle of PBX features.
|
| |
|
|
|
| |
 |
IVR (Interactive Voice Response)
|
|
Our ATA is fully operational on any VOIP network; Simply fill in your SIP credentials!
|
|
|
- Creare IVR Menus
- Create Extensions
- Call Groups
- Voicemail Groups
- Call Parking
- Public Conference
- Private Conference
Attach
DID's
- Create Queues
- Create Schedules
- Manage Voice Files
- Music on Hold
- Manage Keypress
- Roaming Extensions
- Name Directory
- Call Forwarding
- Caller ID
- Detailed Reports
- Admin Web Panel
- User Web Panel
|
| |
|
|
| |
 |
Call Queue
|
|
A stack of calls on hold, or ringing, and waiting to be answered
|
|
|
| |
|
|
| |
 |
Call Conference
|
|
Public and private (password protected) conference support
|
|
|
| |
|
|
| |
 |
Roaming Extensions
|
|
Your phone extension can follow you wherever you go!
|
|
|
| |
|
|
| |
|
Call Forwarding
|
|
Forward your extensions to any local, international or cell phone number
|
|
|
| |
|
|
| |
|
|
|
If you have already purchased an Allo.com MicroPBX, here are some resources to help you get you on your way to setting up your business VOIP service. Download Instruction Manual
| System |
| CPU |
EES-3610B-E10: Onboard VIA Eden ESP10K 1 GHz |
| BIOS |
Award 256 KB Flash BIOS |
| System Chipset |
VIA TwisterT VT8606/VT82C686B |
| I/O Chip |
VIA VT82C686B |
| System Memory |
256MB RAM |
| SSD |
One CompactFlash Type I/II socket with ejector, 1G CF Memory Card Included |
| Watchdog Timer |
Reset: 2~255 sec. and 1 sec./step |
| Display |
VIA VT8606 TwisterT integrated S3 Savage4 2D/3D graphics accelerator with 32 MB display memory |
| Audio |
AC97 Audio |
| Ethernet |
10/100Mbps LAN |
| System Indicators |
One LED indicator shows power status |
| Drive Bay |
Mounting kit for one 2.5" HDD (hidden) |

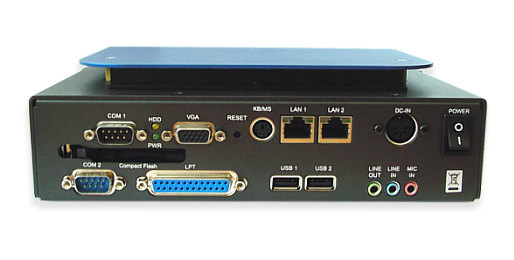

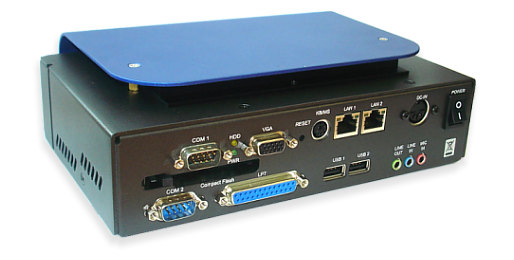

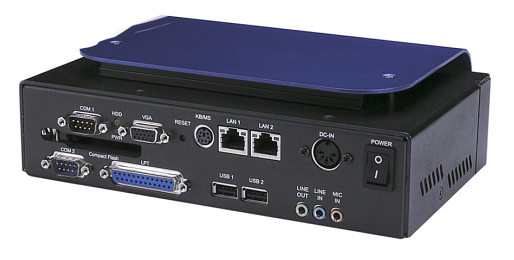

| External I/O |
COM
Port
|
1 x RS-232, 1 x RS-232/422/485 |
| LAN Port |
2 x RJ-45 |
| VGA/LCD Port |
1 x DB-15 |
| Audio Port |
Mic in, Line in, Line out |
| USB Port |
2 x USB 1.1 ports |
| Parallel Port |
1 x DB-25 |
| Mouse & KB |
1 x PS/2 mini DIN |
| Power Supply Unit |
| Power Input |
100 ~ 250 Vdc / 47 ~ 63 Hz |
| Power Output |
5 Vdc / 8 A |
| Environment & Mechanical |
| Operating Temperature |
0~40°C (32~104°F) |
| Storage Temperature |
-20 to +75°C (-4~167°F) |
| Relative Humidity |
5 to 90% @ 40°C (104°F), relative humidity, non-condensing |
| Dimension (WxDxH) |
8.7" x 2.6" x 5.8" (220 mm x 65 mm x 147 mm) |
| Weight |
3.74 lbs (1.7 Kgs) |
| Mounting |
Desktop |
- Micro PC
- Power Adapter & Power Cable
- Ethernet Cable
- Instruction Manual Download
|
|
|
|
|
|
|
|
