Key Features:

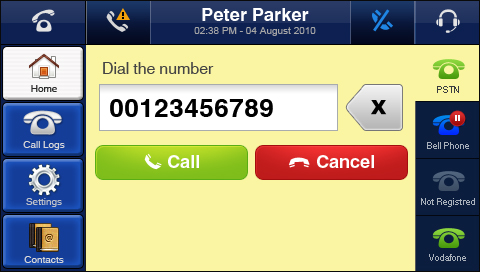

• 4.3” high resolution touch screen graphical display
• Four line indicators with individual SIP account profiles
• Four programmable function keys (for line, transfer, assign key events)
• 23 keys and 4 LED indicators
• Full-duplex wideband speaker phone with AEC
• 2 x IEEE 802.3 10/100 Mbps switch
• Power over Ethernet
• SIP RFC3261 compatible
• Phone to phone encryption through SRTP & TLS (SIPS)
• 3 way call conferencing with local mixing

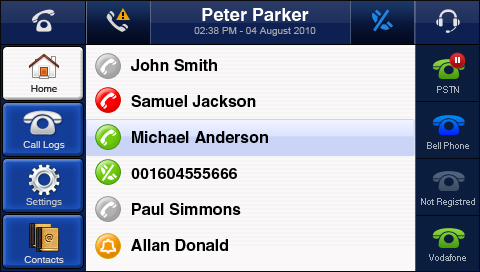

• On screen Busy Lamp Field (BLF)
• User-friendly web-GUI & Menu-driven user interface
• Support manual configuration & Auto provisioning (TR069)

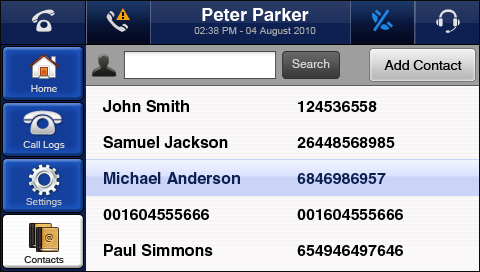

Phone Directory:

• Upto 100 Entries: containing Name, Number, Speed Dial and Group
• Import & Export option (CSV)
• Personalized Group Ringing Tones (distinctive ring)

Call Record

• List Dialed, Answered & Missed calls with Call duration, date/time
• Upto 60 Entries

Dial Features

• Local dial plan
• Speed dialing
• Redial / Automatic redial
• Hot & warm dial
• On hook dialing

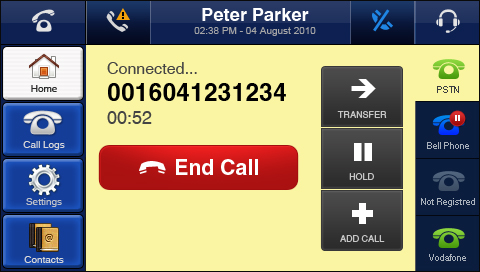

Call Features

• Caller ID with Name
• Call hold (place/retrieve)
• Call transfer
• Call forward
• 3 Way Conferencing with Local Mixing
• Call waiting/switching b/w calls
• Voice mail access
• Call Blocking & more

Model Name:

CIP-100

Ports:

2 10/100Mbps RJ-45 Network Port, POE

LED's:

Speaker-phone, Headset, Message Waiting and Mute

Signaling Protocol:

Session Initiation Protocol (SIP v2)

Voice Codec’s:

G.711 A-law, G.711 μ-law, G.729A/B, G.726, G.723.1, G.722

Security:

Password-protected management

Power Input:

+5 Volts DC at 2.5 Amps Maximum



Operating Temperature	10°C to 40°C (50°F to 104°F)
Operating humidity	10% to 90%, Non-condensing
Storage temperature	0°C to 50°C (32°F to 122°F)
Storage humidity	5% to 95%, Non-condensing
Unit Weight	2.15 lb (0.9752 kg)
Dimensions	8.46" x 9.06" x 6.61" (215 x 230 x 168 mm)
